Introduction 3
DE75i-S User's Guide - Rev. A01 StorCase Technology, Inc.

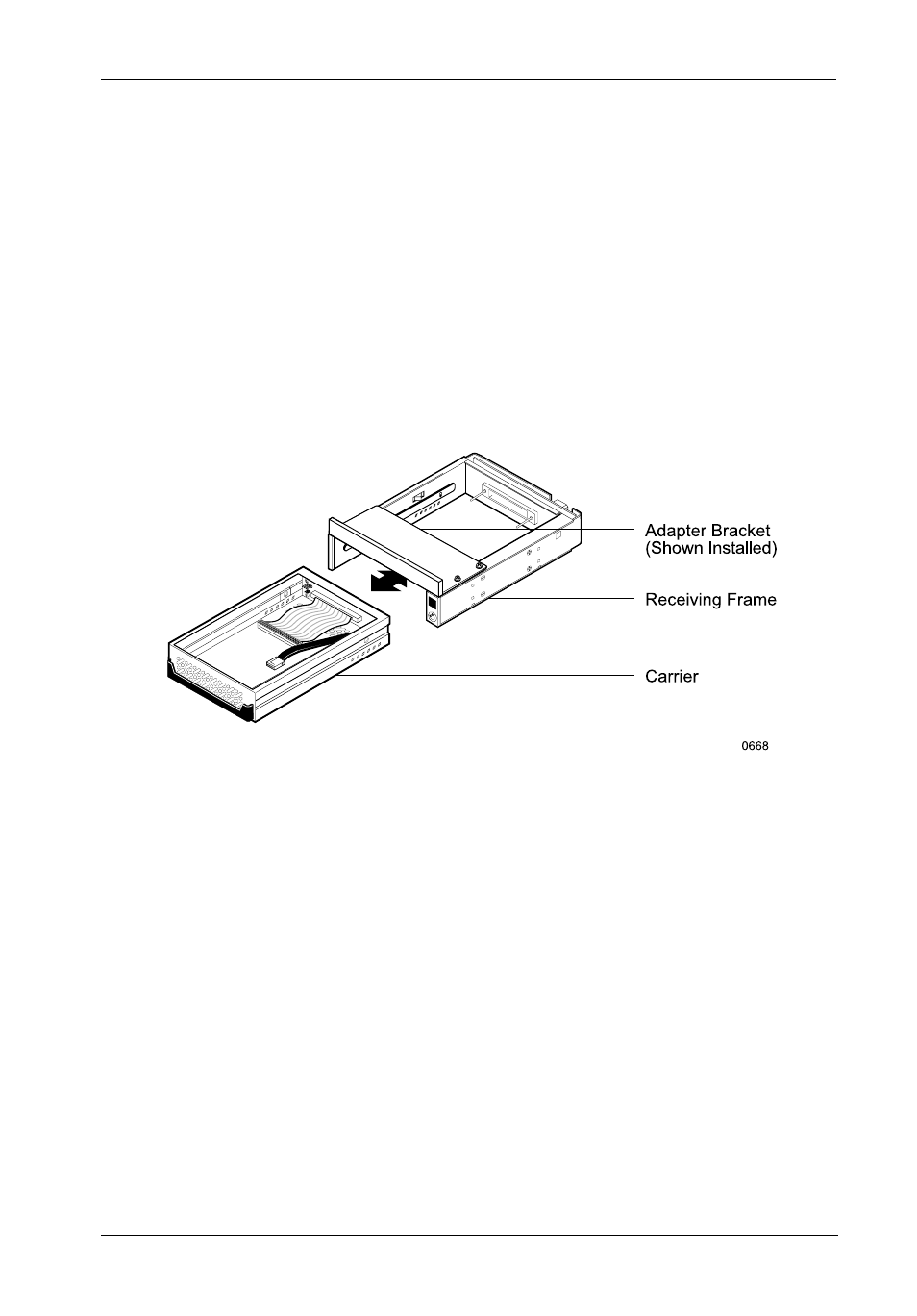

Figure 2: DE75i-S Receiving Frame and Carrier
This User's Guide describes the steps required to install the StorCase Data Express
DE75i-S removable enclosure inside a computer peripheral bay or external expansion chassis.
This guide supplements documentation provided with the host computer system, operating
system, and the drive to be installed within the Data Express carrier.
General Description
The StorCase Technology Data Express ® DE75i-S is a removable drive carrier and receiving
frame designed to provide durable and reliable mounting for 3.5” form factor, low-profile (up
to 1" high), SCSI drives (Figure 2).
The DE75i-S allows a drive to be removed and transported to another DE75i-S-equipped
computer or expansion chassis, and also provides the ability to secure sensitive data by
removing and storing the drive safely for future use.
