3-4 Flex™ IO Isolated Universal Input Module
User's Manual Pub. 0300231‐01 Rev. A
3. Configure the local Ethernet bridge module.
3.3.2 Add a Remote Ethernet Flex Adapter
After you have added the local Ethernet communication module, you must add remote
Ethernet communication modules. A remote Ethernet module is a module that resides in a
separate chassis from the controller.
!
Attention
If you plan to use the Flex Control Net adapter, you will need to install
the 1794sc-IF8IU EDS file before scheduling the network. The latest
EDS files can be found at (www.spectrumcontrols.com).

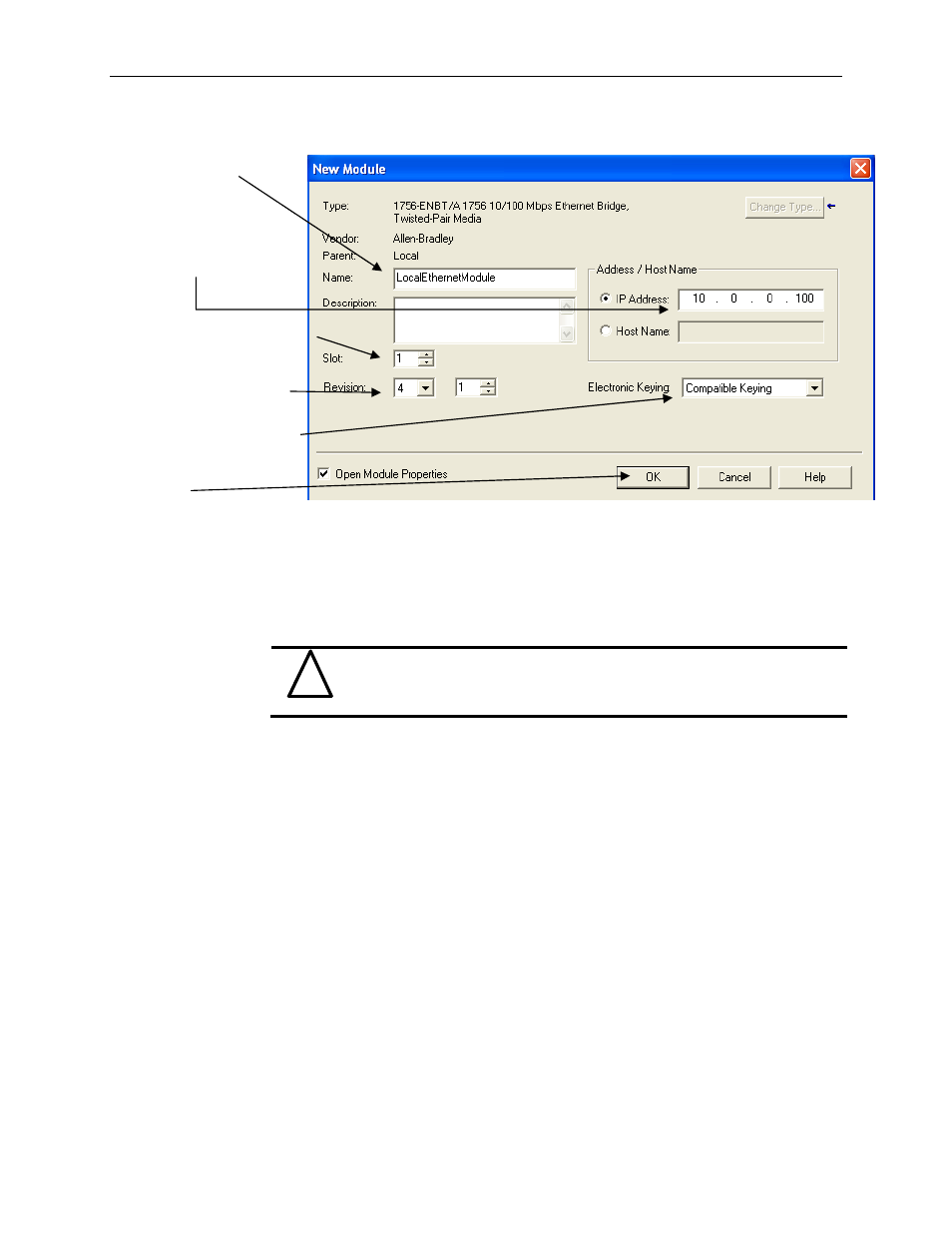

1. Select a New Module for the I/O Configuration.
Name the module
Select the module’s slot number
Enter IP address of ENBT
Select the module’s revision
level
Select electronic keying level
Click OK
