OPERATION INSTRUCTIONS
DECK ROLLERS
:
60" Deck
Purpose: The spring loaded deck rollers located at the front corners of the 60"
mower deck are designed as an aid to limit turf scalping when mowing on
uneven ground.
Height: Normal height settings as installed at the factory allows each roller to ride
slightly above the turf. This setting should prove ideal under most
mowing conditions.

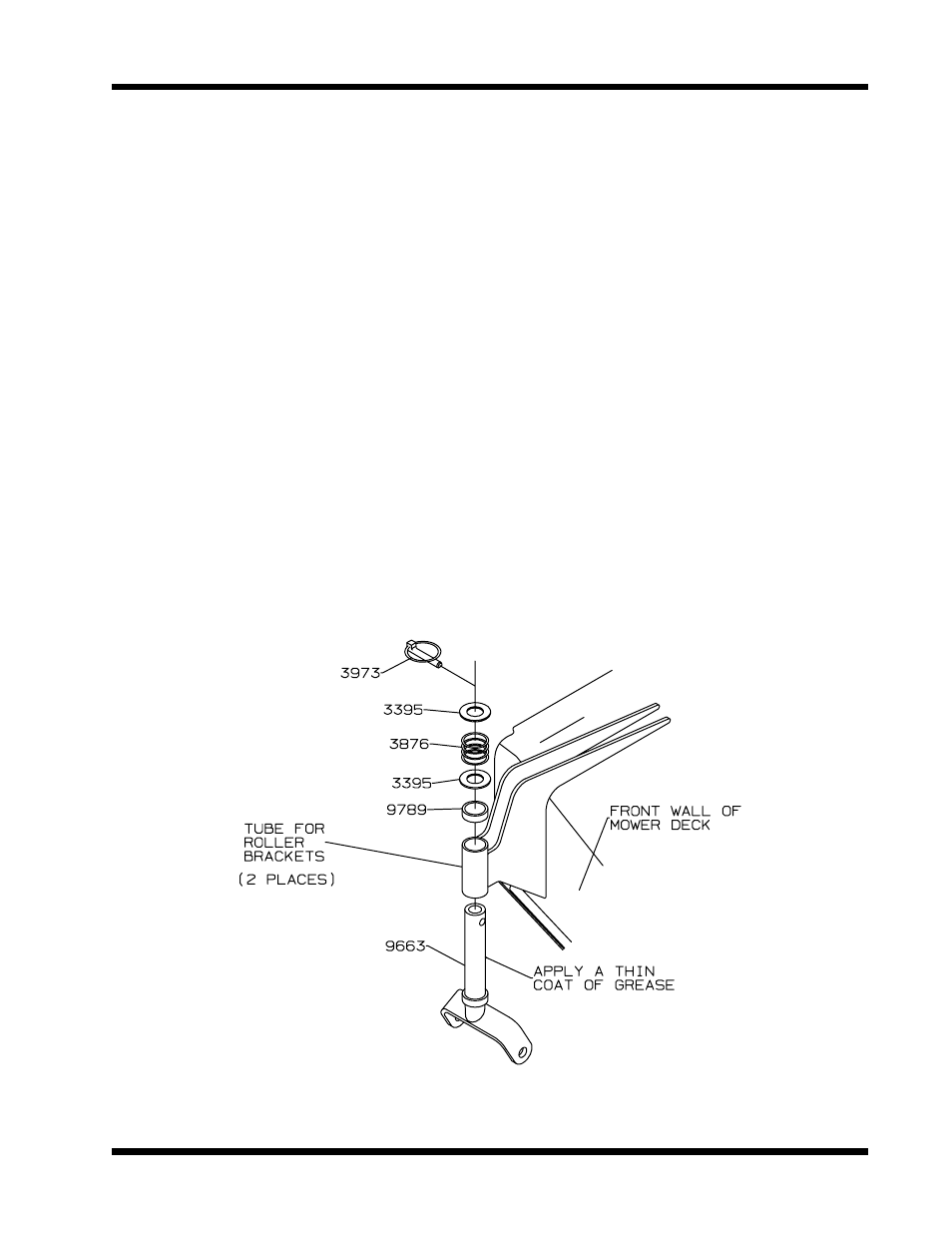

Adjustment: Some mowing applications may require lowering of each front roller. To
lower the roller, remove the pin, spring, washers and spacer P/N 9789 from
the top of roller bracket tube. Remove roller bracket from tube. Slide
spacer P/N 9789 on roller bracket shaft and reassemble using washer,
spring and pin at the top.
Lubrication: The use of a penetrating oil or light grease on the roller bracket shafts will
keep roller moving freely.
