22

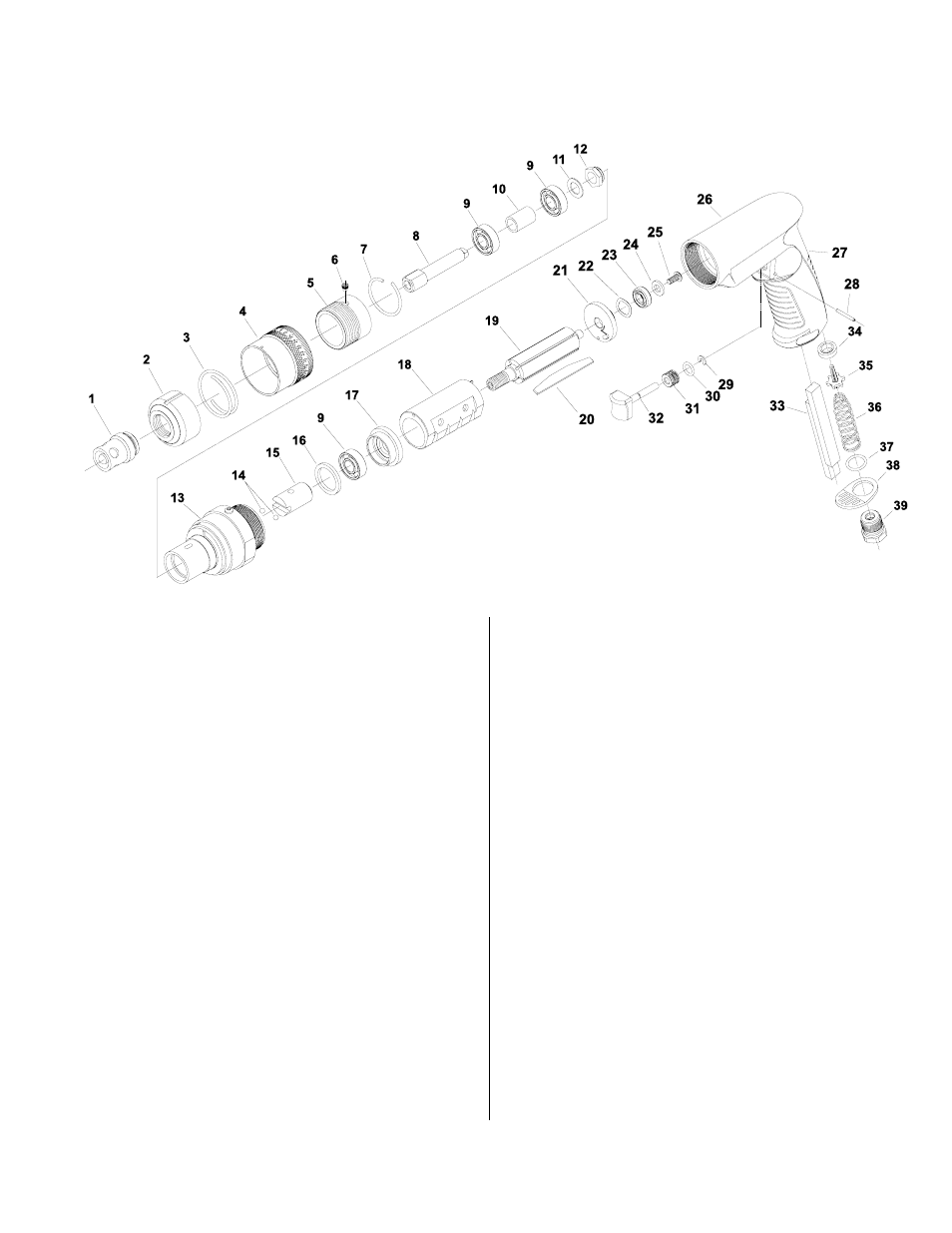

PARTS LIST FOR
SRS10P SERIES PISTOL RIVET SHAVERS
SERIAL “A”
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER
WHEN ORDERING PARTS
Fig. Part
No. No. Description
Fig. Part
No. No. Description
1. 2925-5 Cutter Skirt (5/16")
2925-6 Cutter Skirt (3/8")
2925-7 Cutter Skirt (7/16")
2925-8 Cutter Skirt (1/2")
2925-9 Cutter Skirt (9/16")
2925-10 Cutter Skirt (5/8")
2. 65164 Nose Piece
3. 65172 Compression Spring
4. 65163 Adjustment Ring Assembly
5. 65162 Nose Piece Slide
6. 65169 Screw
7. 65171 Compression Spring
8. 65170 Drive Shaft
9. 10257 Ball Bearing (3)*
10. 65167 Spacer
11. 25680 Washer
12. 65159 Locknut
13. SDR-71 Rivet Shaver Housing Assembly
14. 04293 Rubber Ball, 1/8" Diameter (2)*
15. SDR-70 Extension Adapter
16. SWG-94 Spacer
17. 74038 Front End Plate
18. 74030 Cylinder, Non-Reversing
19. 74028 Rotor
20. SP74048 Vane Set
21. 74023 Rear End Plate
22. 41338 Wave Washer
23. 10253 Ball Bearing
24. 74054 Washer
25. 74055 Screw
26. SDR-1 Pistol Non-Reversing Housing
27. SPSDR-28 Grip (Includes Grip Tape)
28. 30610 Roll Pin 5/64 x 3/4 in
29. 21542 Retaining Ring
30. 14311 O-Ring
31. SDR-23 Trigger Sleeve
32 SDR-200 Trigger
33. 04046 Silencer Pad (2)*
34. IM3100-22 Tipper Valve Seat
35. SDR-20 Tipper
36. SDR-13 Trigger Spring
37. 69007 O-Ring
38. SDR-35 Exhaust Cap
39. 66244R Inlet Adapter
Not Shown:
65182 Stabilizer Assembly
