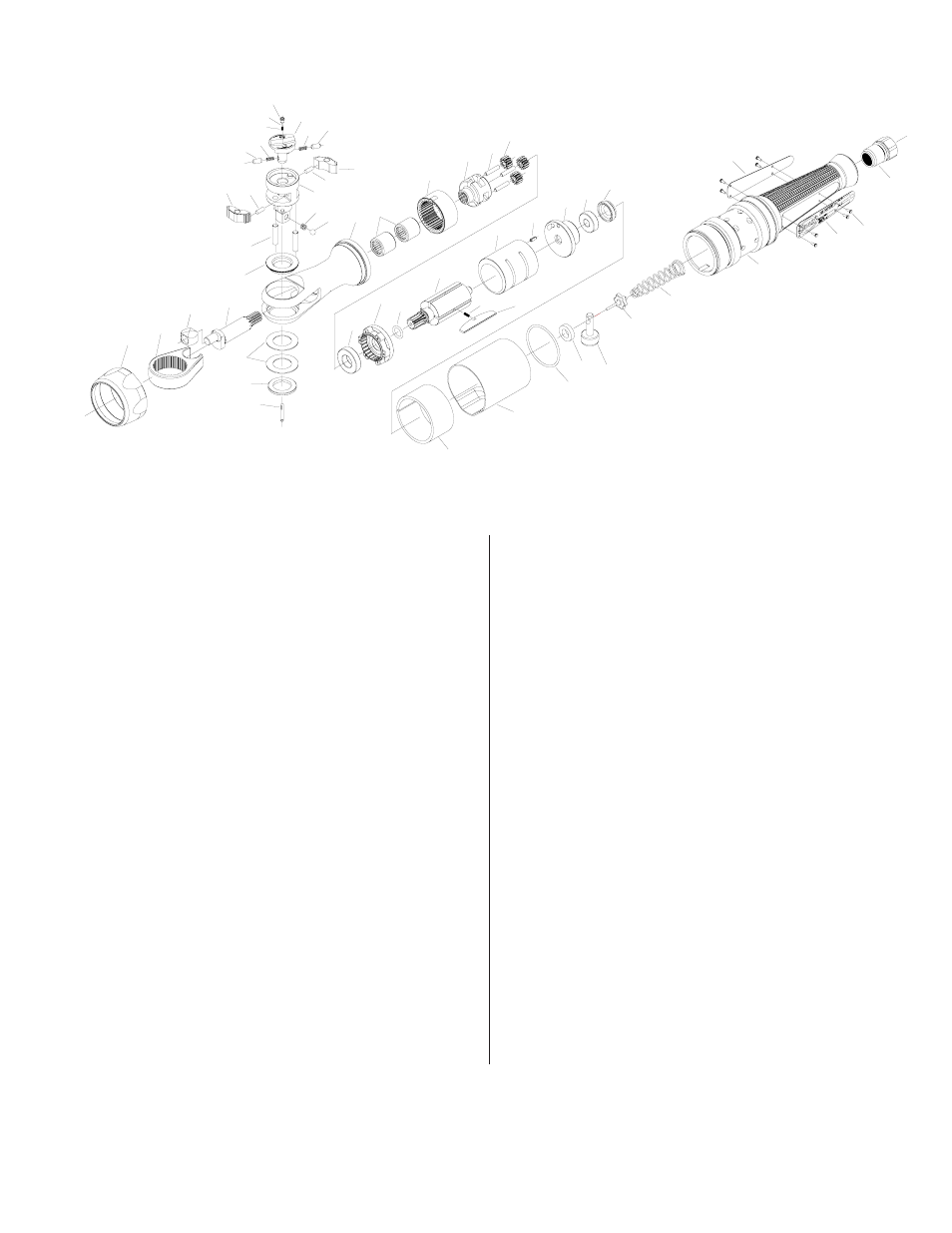

PARTS LIST FOR SRW07-38 & SRW07-50 SIOUX RATCHETS
SERIAL “A”
*Order Quantity As Required
FURNISH CATALOG, SERIAL,
AND MODEL NUMBER WHEN
ORDERING PARTS
1 FAR7200-11 Clamp Nut
2 FAR72B-8B Ratchet Head Finished
3 FAR7200-7 Bar Element
4 FAR7200-5 Drive Shaft
5 ME1G17 Disc Spring FAR7200 (2)*
6 FAR7200-41 Grooved Washer
7 ME2D173 Grooved Pin
8 FAR7200-9 Wear Bushing
9 ME2A108B Pawl Pin (2)*
10 FAR7200-301 Drive Body (3/8" Model)
BP92122 Drive Body (1/2" Model)
11 ESD16 Coil Spring (3/8" Model)
ME1A28 Coil Spring (1/2" Model)
12 ESD854 Steel Ball (3/8" Model)
ESD855 Steel Ball (1/2" Model)
13 ME2A133 Stop Pin–Pawl (2)*
14 FAR72C302 Pawl PM (2)*
15 FAR72A-307A Selector Knob
16 ME1A168C Compression Spring (2)*
17 FAR72A306A Plunger (2)*
18 ESD16 Spring
19 ESD854 Steel Ball 3/16"
20 ESD1333 Grease Zerk
21 FAR72C2DEM Ratchet Head Housing
22 ME11B14 Needle Bearing (2)*
23 FAR7200-3A Internal Gear
24 FAR72-4A MIM Gear Carrier
25 ME2A107 Gear Pin (3)*
26 FAR72-6 Planetary Gear (3)*
27 ME11A46 Ball Bearing
28 FAR72-505A End Plate
29 ME7B76 O-Ring
30 FAR72-501A Rotor
31 ME1A203 Spring (4)*
32 FAR72B-204 Vane (4)*
33 PD3C221A Cylinder Liner
34 ME2C45 Pin
35 FAR72-211 Rear End Plate
36 ME11A27 Ball Bearing
37 PD3C203 Plug
38 FAR72C33 Muffler Material
39 74928 Muffler
40 ME7B23J O-Ring
41 IM5100-20A Trigger Valve Seat
42 FAR72C200 Trigger Stem
43 IM5100-22A Trigger Valve
44 ME1A226 Tipper Spring
45 74926 Housing
46 74924 Warning Label
47 74927-38 ID Label (3/8" Model)
74927-50 ID Label (1/2" Model)
48 09954 Rivet (8)*
49 ME6F1A Inlet Adaptor Bushing
Not Shown:
YA889A Boot For Ratchet Head
