11

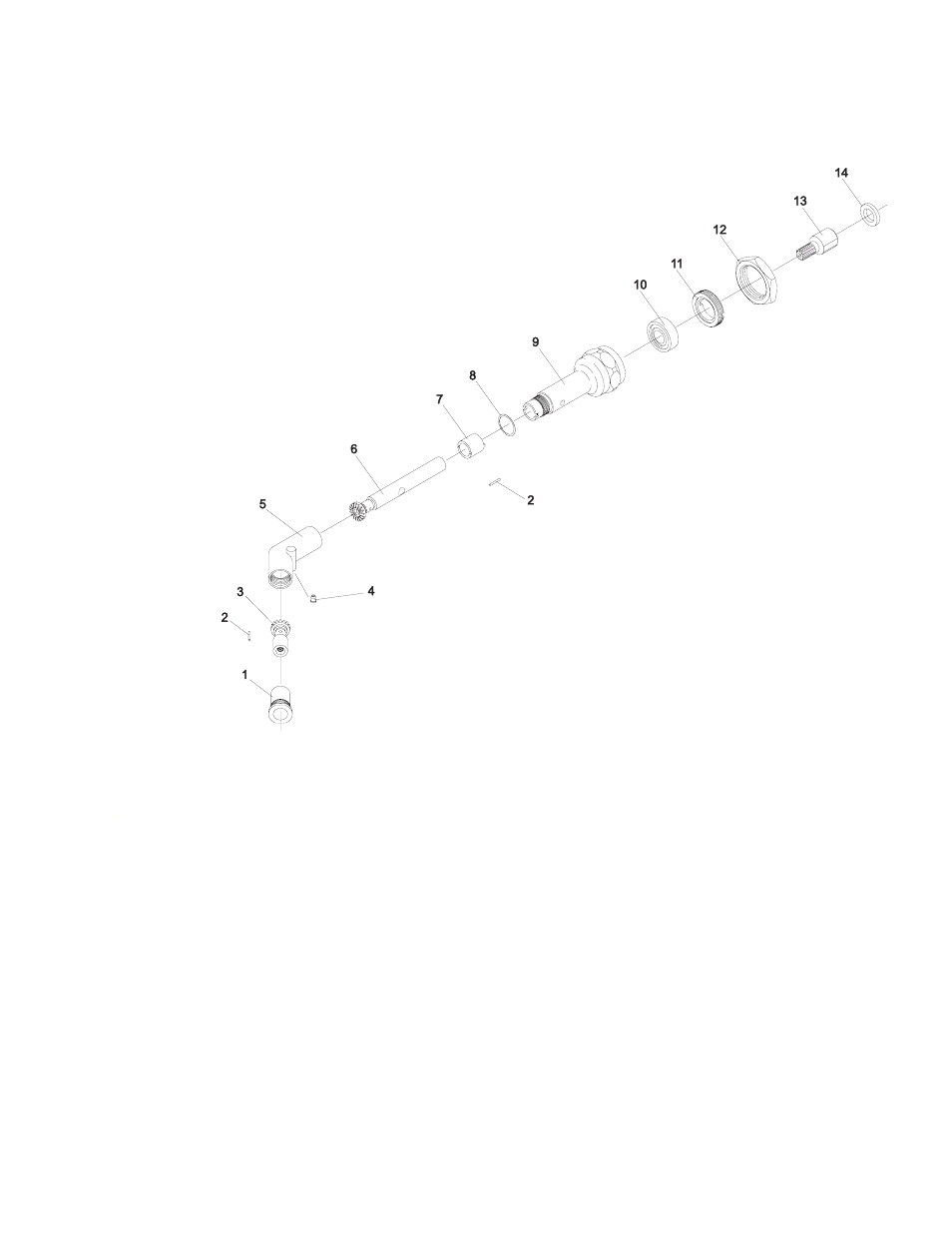

PARTS LIST FOR 45° ANGLE HEAD ASSEMBLY
1. 65238 Bushing—Flange
2. 65246 Pin (2)*(Set of 22)
3. 65236 Gear—Collet (1/4–28 Th’d)
65264 Gear—Collet (#10–32 Th’d)
65538 Gear—Collet (9/32"–40 Th’d)
4. 30375 Fitting—Grease
5. 65237 Housing—45°
6. 65235 Pinion
7. 65245 Retainer—Bearing
8. 65242 Shim—.005" (Order Quantity As Needed)
9. 65244 Housing—Angle Drill
10. 10257 Bearing—Ball
11. 65243 Nut—Retaining
12. 65143 Nut—Jam
13. 65146 Adaptor—Spindle
14. 44122 Spacer
65213 Assembly—Complete (1/4"–28 Th’d)
(Includes Figs. 1—11)
65265 Assembly—Complete (#10–32 Th’d)
(Includes Figs. 1—11)
65541 Assembly—Complete (9/32"–40 Th’d)
(Includes Figs. 1—11)
Fig. Part
No. No. Description
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER WHEN
ORDERING PARTS
