220i Integrated Amplifier
____________________________________________________________________________________
11
Remote Control Operation
The Nēo 220i Integrated Amplifier uses the ‘CRM-2’ full-function remote
control (figure 4). It operates on the Philips RC-5 communication protocol
and is can be used with other Simaudio MOON components.
The ‘CRM-2’ remote uses two AA batteries (included). To install them,
simply slide the back plate off in the direction of the arrow; insert the
batteries in the correct direction and then replace the back plate.
To engage the ‘CRM-2’ remote for use with the Nēo 220i Integrated
Amplifier, you must first press the button labeled AMP.
The POWER button located on the upper left will switch the integrated
amplifier to either ‘Standby’ or ‘On’ mode.
The 2 buttons labelled ◄ INPUT ► allow you to sequentially scroll,
either backwards or forwards, through all six (6) available inputs. For
example, to switch from the “CD” to the “VIDEO” input you may press
either ◄ INPUT three (3) times or INPUT ► three (3) times.
Pressing and holding down either of these buttons results in only
a single change to the selected input.
The 2 buttons labelled ▼ VOL ▲ allow you to control the volume level.
Pressing ▼ VOL results in a decrease in the volume level; Pressing VOL ▲
results in an increase in the volume level. You may either press and hold
these buttons down or press them briefly to make volume adjustments.
The MUTE button turns off the output volume. Pressing the “Mute” button
a second time will reinstate the output volume level back to its current
setting.
NOTE: The 2 buttons labelled ◄ BAL ► and the DISPLAY button don’t
affect the operation of the 220i.

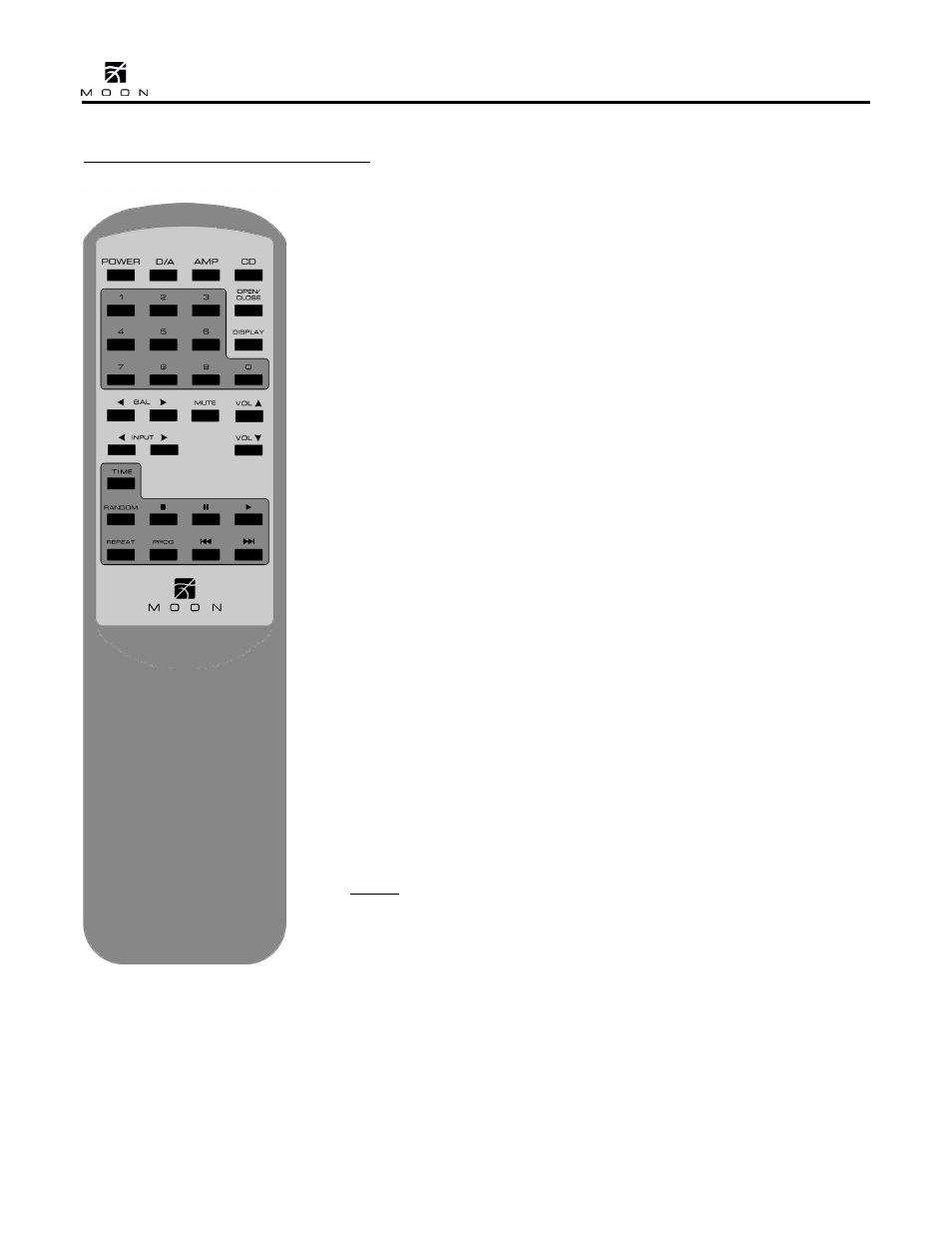

Figure 3: CRM-2
Remote Control
