Rigel Systems QuikAdapt - Manual

QuikAdapt

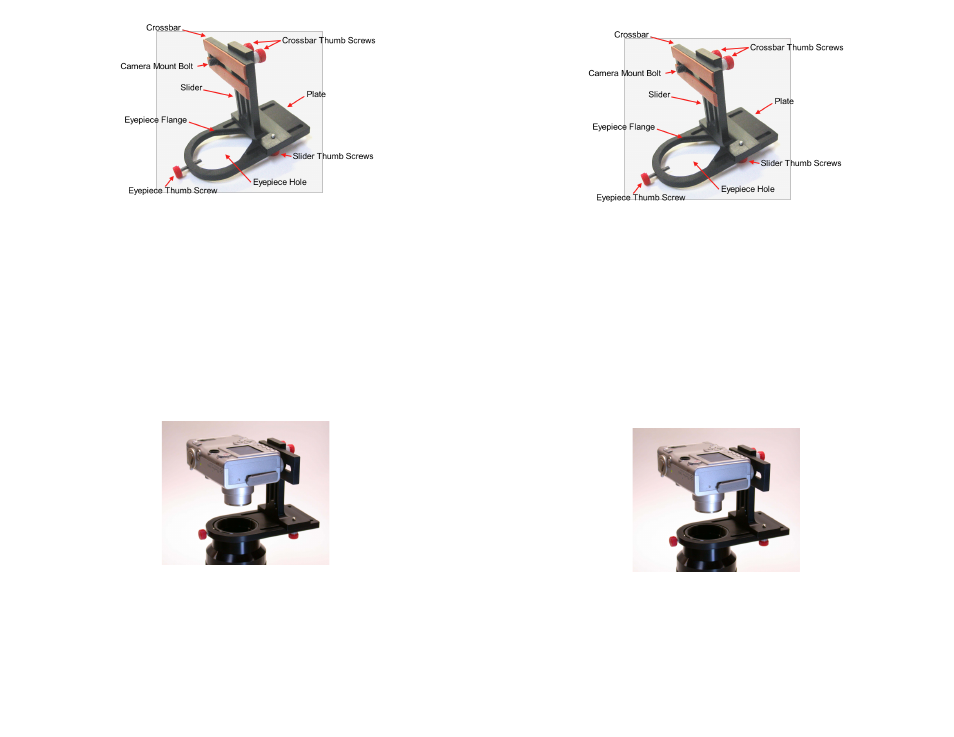

Attaching Camera: Remove crossbar and attach camera to crossbar by screwing camera mount
bolt into camera mount hole on bottom of camera, using supplied allen wrench, so the camera lens
is in middle of crossbar. Reattach crossbar to slider upright using the crossbar thumb screws.
Attaching to Eyepiece: Loosen eyepiece thumbscrew until screw is flush with inside of eyepiece
hole. Remove rubber guard from eyepiece, insert into eyepiece hole, and slide away from
thumbscrew until groove on eyepiece fits over eyepiece flange on QuikAdapt. Tighten eyepiece
thumbscrew into groove on eyepiece.
Centering of Camera: Remove QuikAdapt+camera from eyepiece. Acquire and center bright
star in eyepiece. Reattach QuikAdapt+camera, loosen slider thumb screws and move slider
forwards/back until star is in center of camera viewfinder then tighten slider thumb screws. You
may also loosen the camera mount bolt slightly using supplied allen wrentch to adjust camera
left/right position on crossbar then retighten..
Adjust Eye relief to minimize vignetting: Loosen crossbar thumbscrews and raise /lower
camera, retighten crossbar thumbscrews.
5 Year limited warranty: Rigel Systems, 26850 Basswood Ave, Rancho Palos Verdes CA,
90275 warrants to the original consumer purchaser of its product that the product will be free of
defects in material or workmanship 5 years from the date of purchase under normal use. During
this warranty period, Rigel Systems will, at its option, repair or replace the product without charge
for parts or labor when delivered to Rigel Systems with proof of the date of purchase and a
statement of the problem with the product. Shipping and handling charges to Rigel Systems are
your responsibility. This warranty does not apply if the product has been altered or repaired by
anyone other than Rigel Systems or has been subjected to purchaser abuse, accident,
negligence or damage subsequent to purchase including battery damage to product. This warranty
excludes incidental or consequential damages resulting from the product or use of the product.
The product is not a toy. Keep away from children.
