10
1. Connect fully charged fl ight battery to the
aircraft, noting proper polarity.
2. Attach fl ight battery to a strip of loop
fastener on the bottom of the fuselage.
10

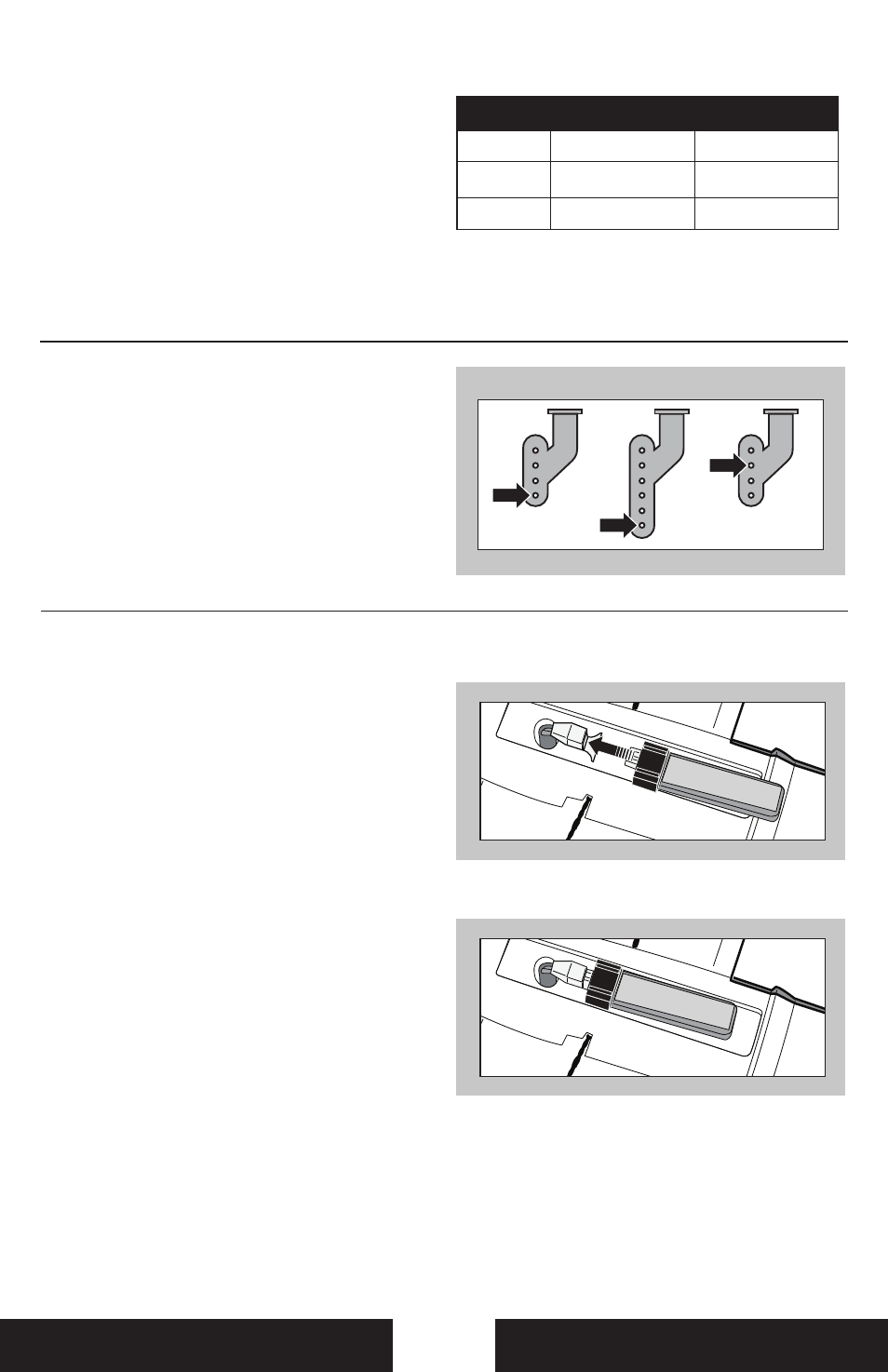

Settings for Control Horns
The illustration shows factory settings for
linkages on control horns. After fl ying, if you
want more or less control throw, carefully
adjust linkage positions for desired control
response. (Picture not to scale.)
Aileron Elevator Rudder
Control Rates
We recommend using a DSM aircraft trans-
mitter capable of dual rates. Adjust according
to individual preferences after initial fl ight.
It is normal for linear servos to make noise.
The noise is not an indication of a faulty servo.
To achieve the proper Low Rate settings
when using a programmable DSM aircraft
transmitter, set the low rate value to 70% for
aileron, elevator and rudder.
High Rate Low Rate
Aileron 6mm up/down 4mm up/down
Elevator 4mm up/down 3mm up/down
Rudder 7mm up/down 5mm up/down
Note: All control surfaces are measured at the
widest point.
EN
Installing Flight Battery
