Motor Service
CAUTION: DO NOT handle propeller parts
while the fl ight battery is connected. Personal
injury could result.

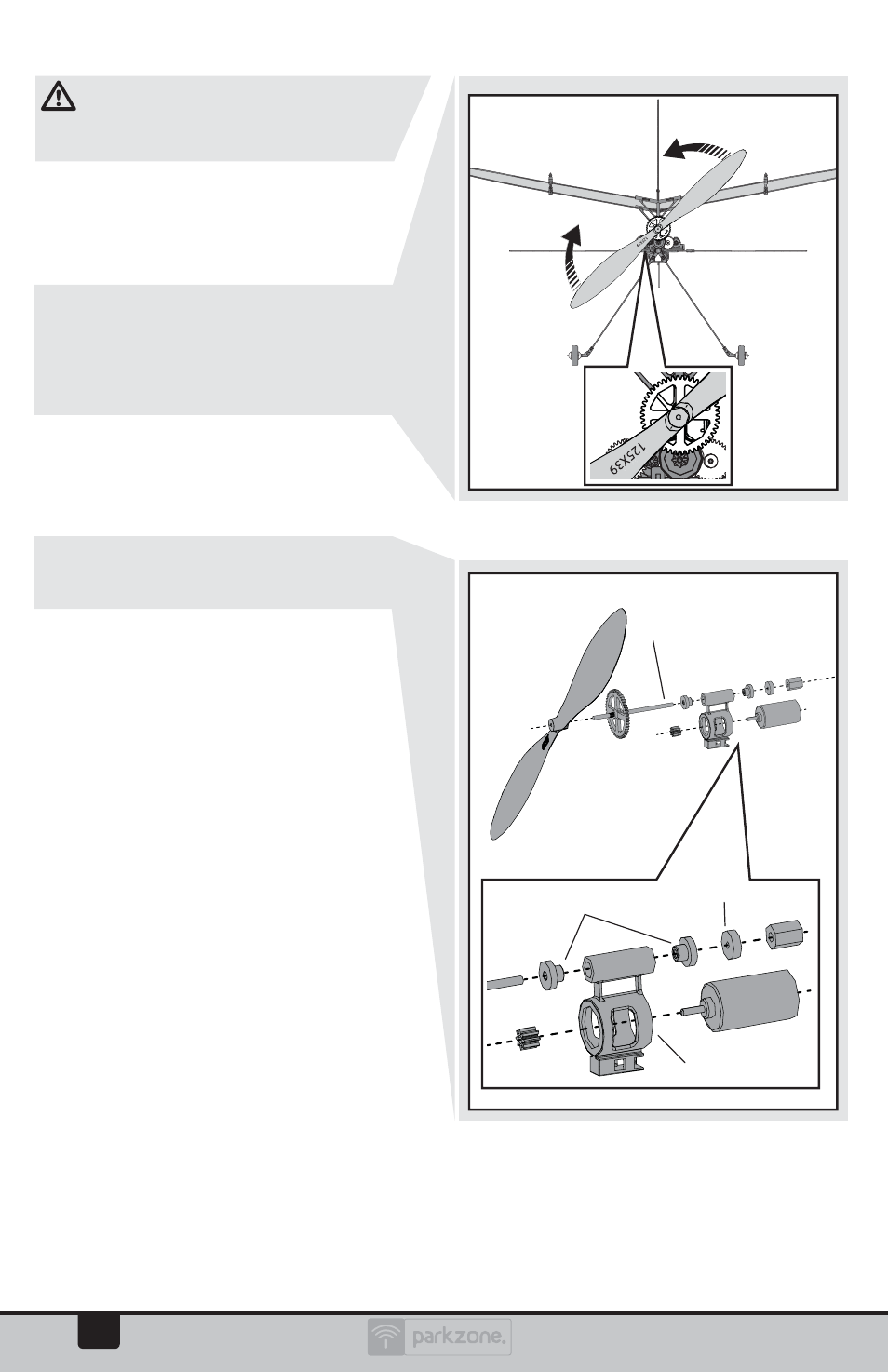

Disassembly
1. Disconnect the battery from the
ESC/receiver.
2. Hold the spur gear and turn the propeller
counterclockwise (looking from the front of
the model) to remove. Turn the propeller
clockwise to install. Make sure the propeller
size numbers (125 x 39) face away from the
motor (see illustration).
3. Hold the nut on the end of the prop
shaft using needle-nose pliers or
hemostats.
4. Turn the gear on the shaft clockwise (looking
from front of model) to remove the nut.
5. Gently pull the shaft (A) from the
gearbox (B) and make sure the washer (C)
and two bushings (D) are not lost.
6. Disconnect the motor from the ESC/
receiver.
7. Gently push the motor out of the gearbox
and remove the motor.
NOTICE: DO NOT remove the gearbox from
the aircraft. Damage to the aircraft will result.
Assembly
Assemble the aircraft using the instructions
above in reverse order.
• Correctly align the prop shaft gear with the
pinion gear on the motor.
• Correctly connect the motor to the
ESC/receiver so that the powered motor
turns the propeller clockwise (looking from
the front of the model).
Remove
Install
A
D
B
C
