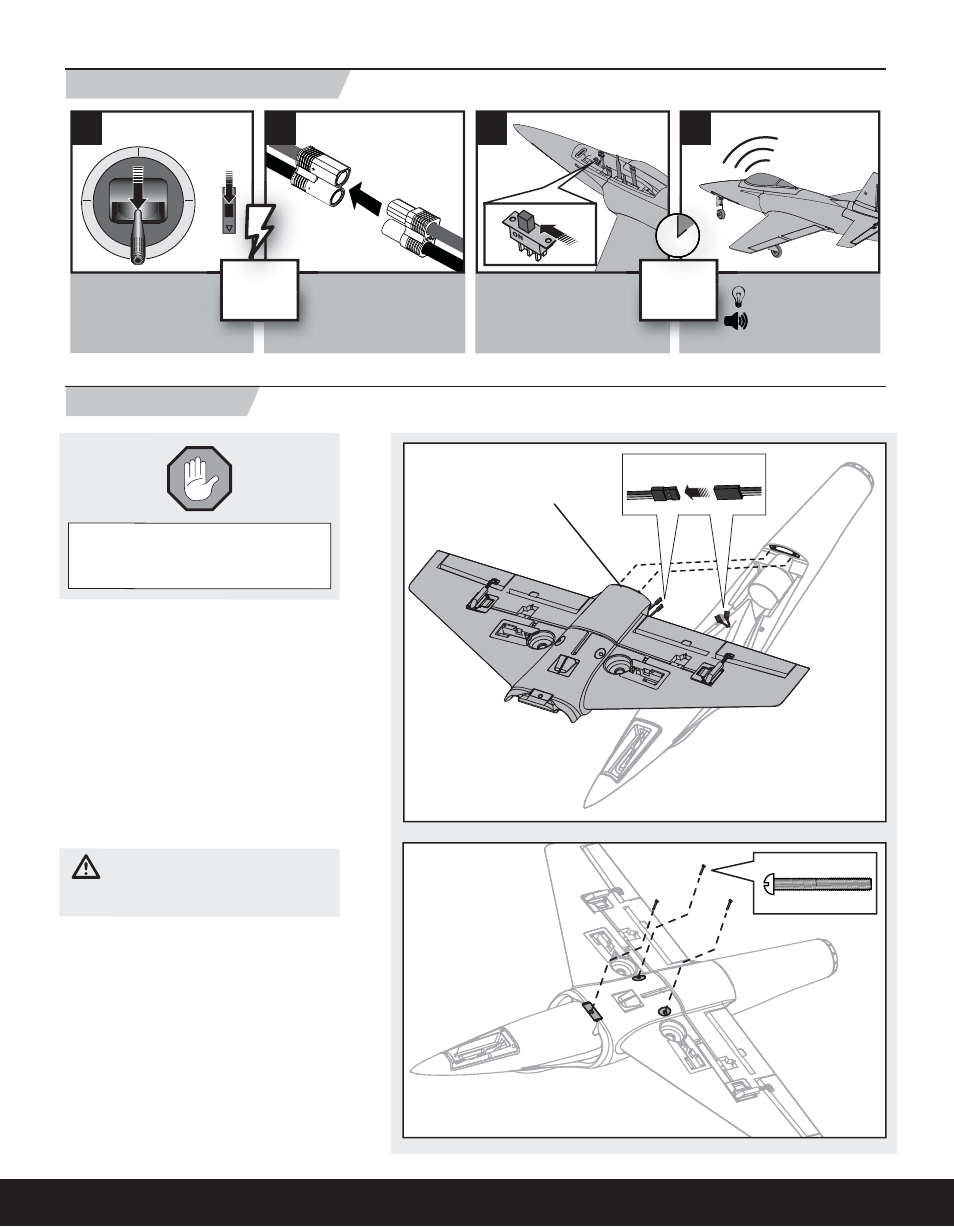

If you plan on installing optional fl aps or retracts,
you must do so before installing the wing. Please
proceed to the following pages for instructions.
1. Remove the canopy from the fuselage.
2. Turn the wing and fuselage so their bottom
sides face up.
3. Slide the two guide pins (A) of the wing into the
two holes in the fuselage.
4. Connect both aileron servo connectors (B) to
the aileron Y-harness. The left and right servo
connectors do not have to be connected to a
particular side of the Y-harness.
5. Align and attach the wing to the fuselage using
3 screws (C). The 2 rear screws are longer than
the front screw.
6. When needed, disassemble in reverse order.
CAUTION: DO NOT crush or otherwise
damage wiring when attaching the wing to the
fuselage.
NOTICE: Use of CA (cyanocrylate adhesive) ac-
celerant on your model can damage paint. DO NOT
handle the model until the accelerant fully dries.
1 3 4 2
• Lower throttle and
throttle trim to
lowest settings.
• Connect battery to ESC. Continuous LED
Series of tones
Power on
Transmitter
Wait 5
seconds
Arming the ESC Before Flight
Installing the Wing
3 X 25mm
C
• Power on ESC switch.
A
B
5
