EN

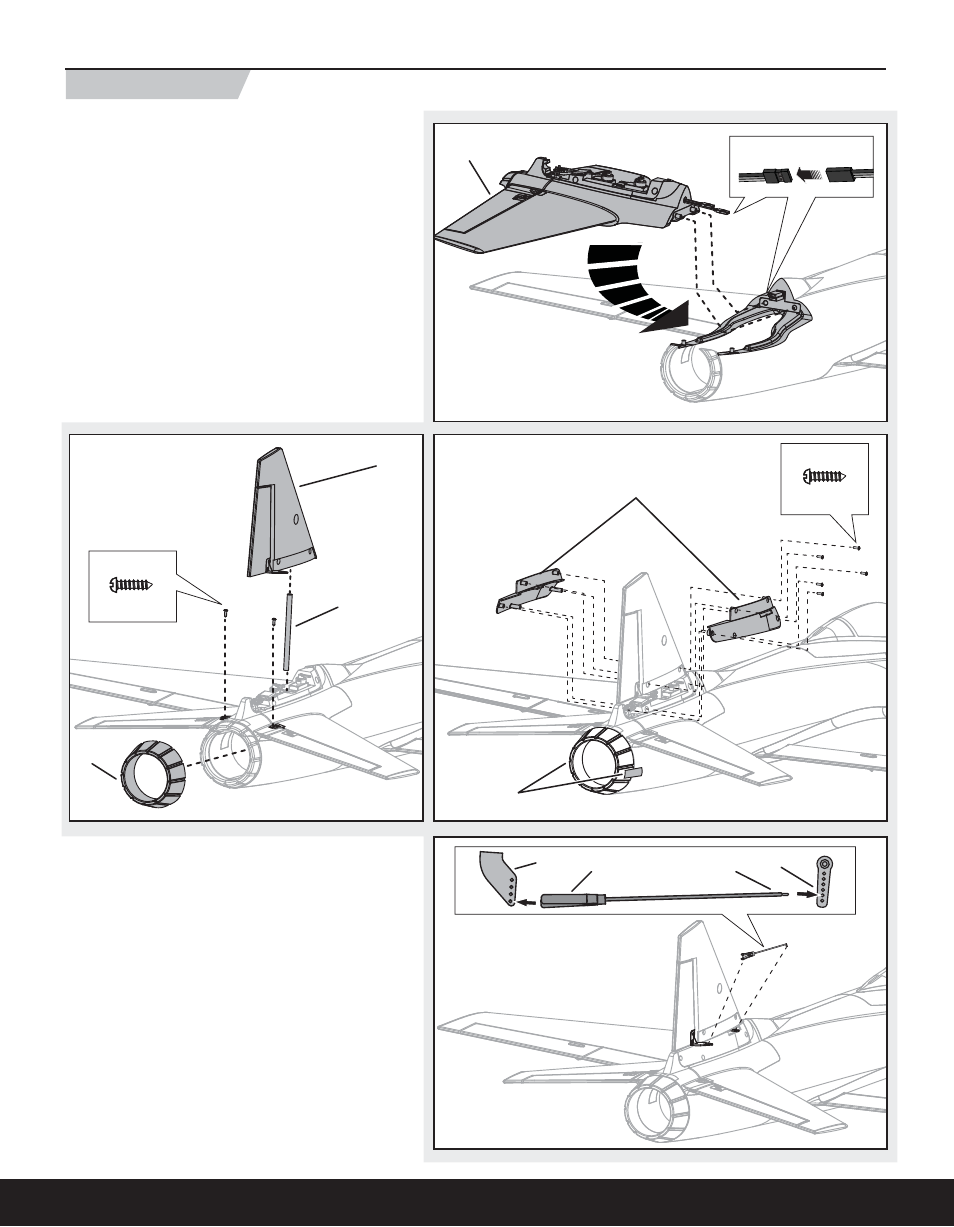

1. Loosely align the horizontal stabilizer unit (A) on
the rear of the fuselage.
2. Correctly connect the rudder and elevator servo
connectors to the marked connectors in the
fuselage (B).
NOTICE: Ensure no wires are pinched or damaged
when the tail unit is attached to the fuselage.
3. Align and install the unit on the top of the rear
fuselage using 2 screws (C).
Tip: Remove the rudder linkage from the rudder
servo arm so the right mounting plate can be
installed on the vertical fi n.
4. Install the tube (D) in the holes in the vertical fi n
(E) and in the top of the stabilizer unit.
5. Align and press the tail cone (F) on the rear of
the fuselage, then apply the included tape (G) to
the tailcone and fuselage.
6. Attach the vertical fi n to the stabilizer unit using
the left and right mounting plates (H) and
5 screws (I).
7. Put the Z-bend of the linkage (J) in the second
hole of the rudder servo arm (K) (the hole next
to the outermost hole).
8. Attach the linkage clevis (L) to the outer hole
of the rudder control horn (M). Ensure the tube
tightens the clevis on the control horn.
9. Where needed, disassemble in reverse order.
Attaching the Tail
B
C
D
A
E
F
H
I
J L M K
G
2.5 X 8mm
2.5 X 8mm
10
