Tip: Turn the clevis clockwise or counterclockwise on the linkage.
• Pull the tube from the clevis to the linkage.
• Carefully spread the clevis and put the clevis pin into the desired hole
in the control horn.
• Move the tube to tighten the clevis onto the control horn.
After binding a transmitter to the model receiver, set all trims and sub-trims
to 0, then adjust the clevises by hand to center the control surfaces.
1. 4.
5.
6.
2.
3.
Fly the model at factory settings before making
any changes. For pilots who wish for more control
throw, adjust the position of the control linkages on
the servo arms and control horns for
increased travel.
102mm
(4 inches) from the leading edge
of the wing at the fuselage.
Place the battery all the way forward in the battery
compartment and hold the battery in place using
hook and loop straps. It is easiest to balance the
aircraft with the aircraft inverted.
Center of Gravity (CG)
Factory Settings

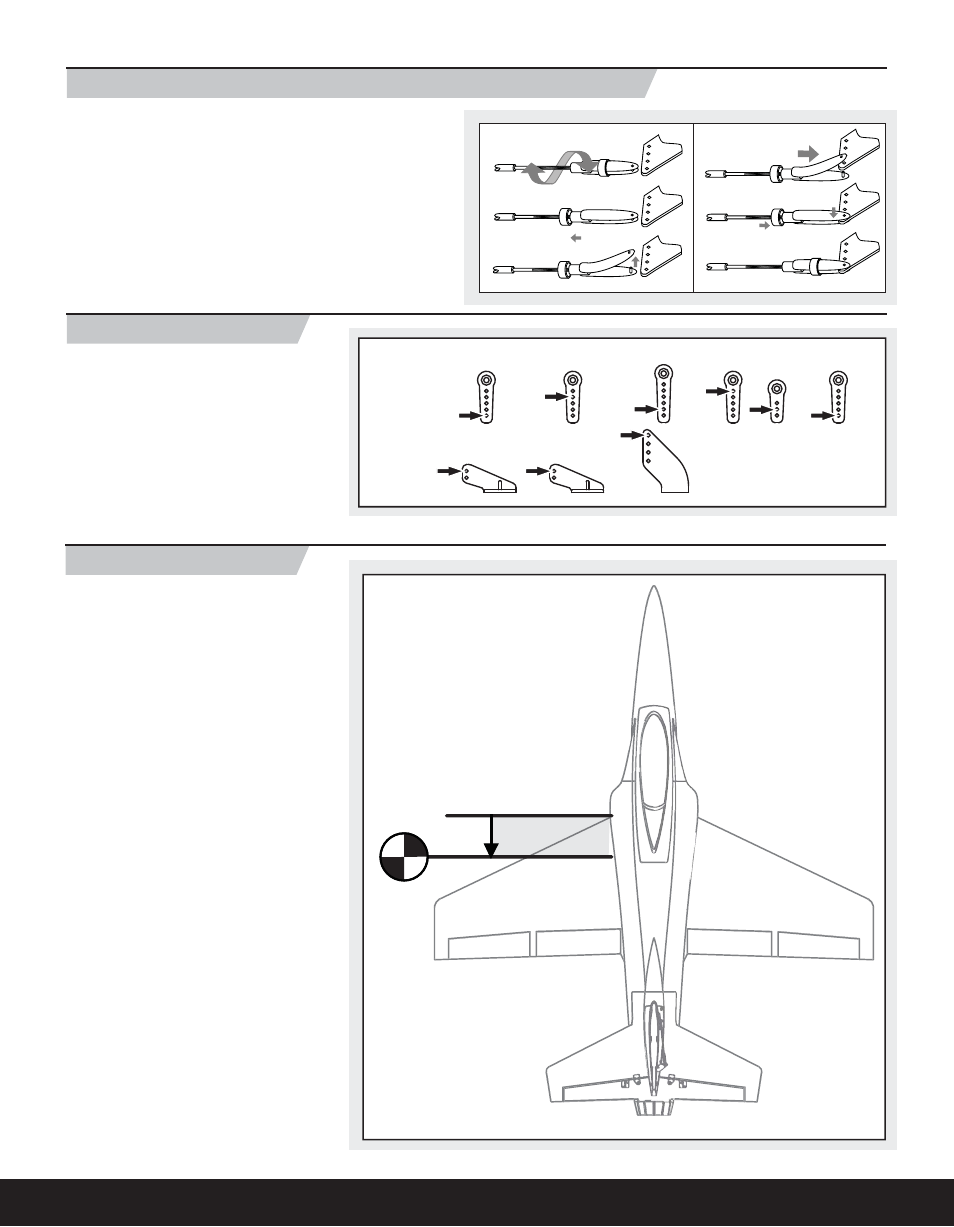

Installing Clevises on Control Horns and Control Centering
Ailerons
Arms
Rudder
Horns
Flaps Nose Gear Elevator
Servo Strut
