ParkZone 4-Channel Radio System
Your ParkZone ™ Typhoon ™ 3D comes with a fully
proportional 4-channel radio system (Mode 2).
Your Typhoon also comes with industry standard
3-wire servos making the radio system usable in other
small electric aircraft if you so choose. As with all
Mode 2 style systems, the left gimble operates the
throttle and rudder, while the right gimble operates
the aileron and elevator.
Note : The servo reversing features of this radio
system will allow it (if you so choose) to be used
in another park flyer application. The servo reversing
switches on the Tx should all be set at the top
(normal) for the setup with this airplane. If any of
the switches are set at the bottom (reverse), the
function will be reversed and could put your
Typhoon in jeopardy.

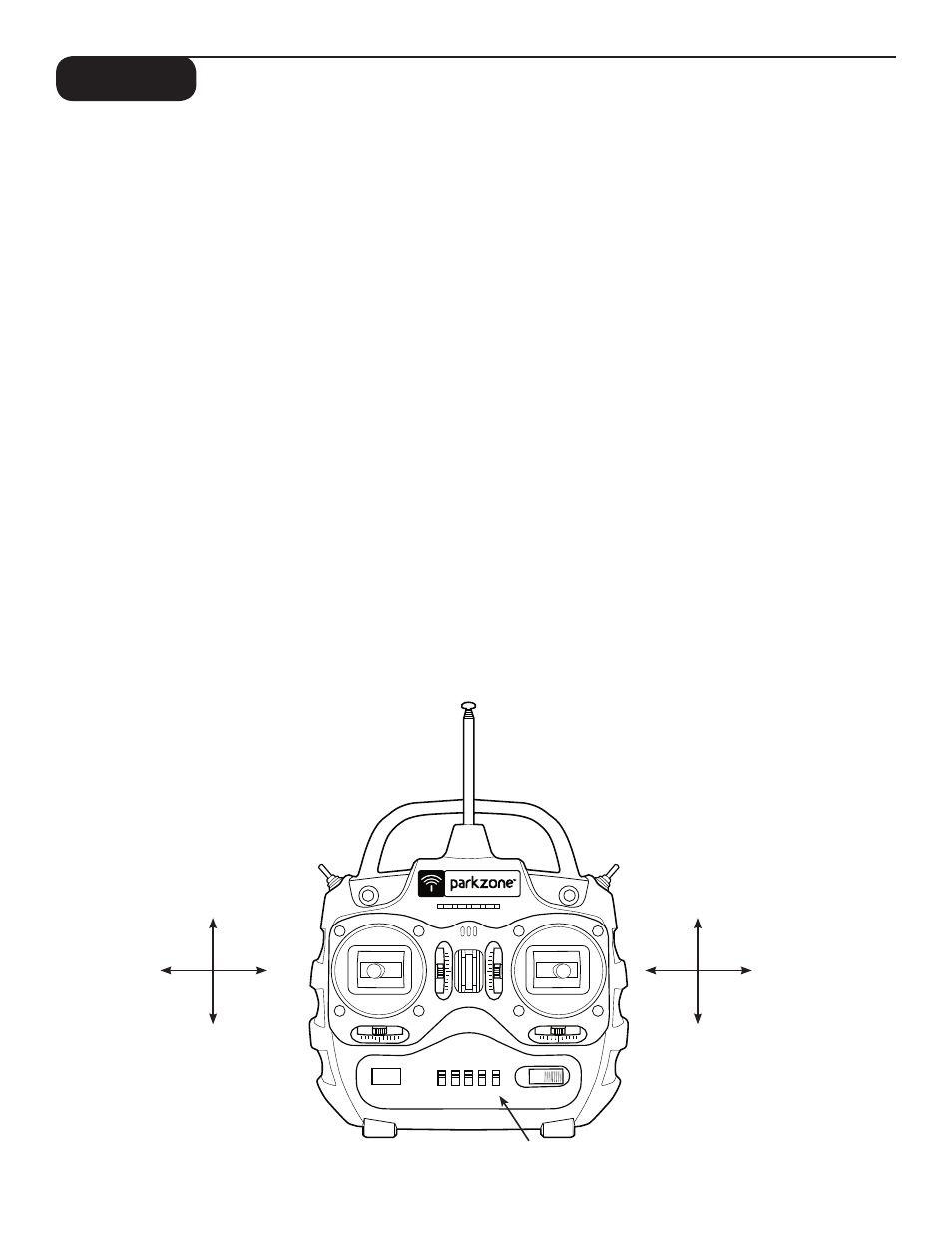

THR ELE AIL RUD T/V
Transmitter Features:
• Fully proportional 4-channel FM radio system
with full control of throttle, elevator, aileron, and
rudder (Mode 2)
• Dual rates switch (hi and low rates) when in
Typhoon Mode
• Proportional trim adjustment
• LED battery voltage indicators
• Neck strap holder
• Charge jack for use with rechargeable Tx batteries
• Servo reversing
• Comfortable ergonomic case design
The stock setup for all of the servo reversing switches
on Tx are at the top (normal).
The following statement applies to the receiver
(in U.S.A)
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference,
and
2. This device must accept any interference
received, including interference that may cause
undesirable operation.
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
Elevator
Aileron
Throttle
Rudder
T/V Switch:
T= Conventional Tail
V= V-Tail (Mixes Ailerons and Elevator)
Step 8
