ParkZone PKZ4100 - Manual (Page 5)

5

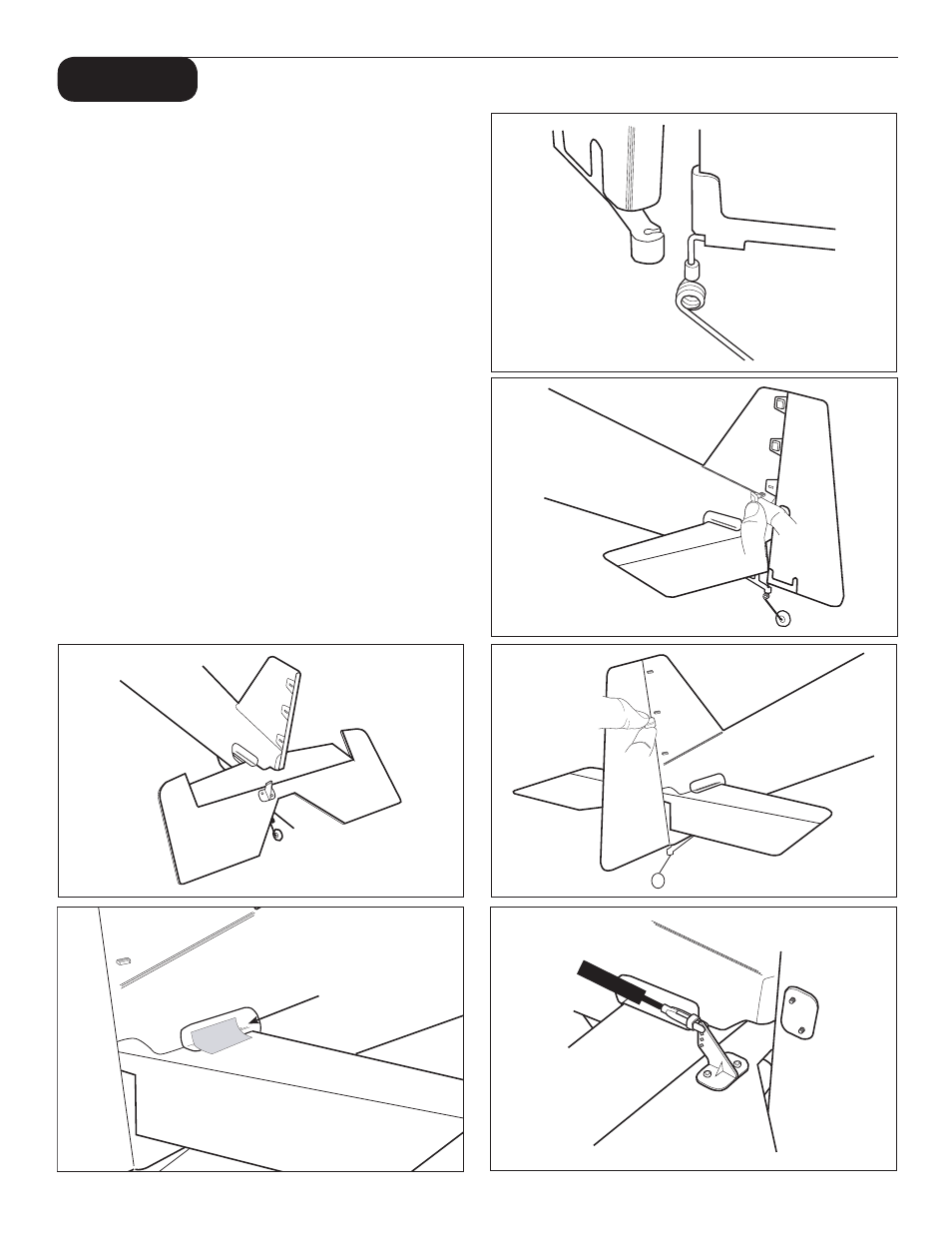

Attaching the Horizontal Stabilizer and
Rudder
1. Locate horizontal stab.
2. Carefully slide horizontal stab into fuselage, making
sure control surface horn is on top.
3. Use included strips (4 pieces) of clear tape to
secure stab to tail fillet. You should use 1 strip for
top and bottom of each side.
4. Locate rudder. Carefully snap tail wheel wire into
the clip on bottom of fuse, as shown.
5. Carefully use hobby knife to slowly separate decal
from foam only where three hinges are to attach
to stab. When decal is slightly separated from
the foam, slide hinges between decals and foam
of stabilizer. Use the three pins that are supplied
to connect rudder to stab, as shown. Do this by
pushing pins in carefully.
6. Install keepers on backside to secure pins
as shown.
7. Attach rudder and elevator pushrods to
respective control horns (outer holes of control
horns for both).
Note: It may be necessary to re-trim control
surfaces prior to flight.
Apply Tape
Step 2
Step 4
Step 5
Step 6
Step 7
Step 5
Step 3
