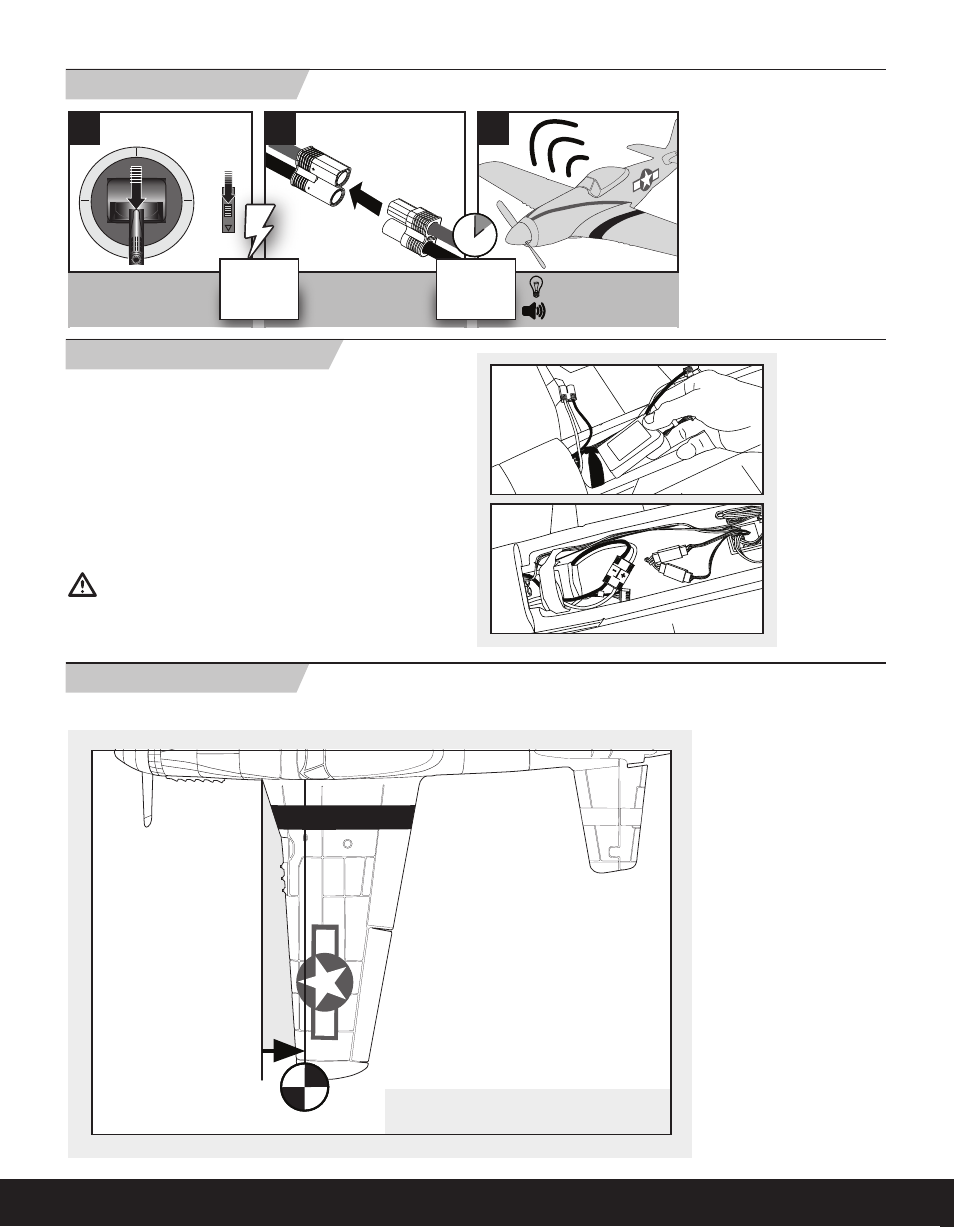

Install included battery in the fuselage using the hook and loop straps.

Center of Gravity (CG)

• Lower throttle and

throttle trim to
lowest settings.

• Connect battery to ESC.

Continuous LED

Series of tones

Power on

Transmitter

Wait 5

seconds

Before Flight

70mm

(2.75 inches) from leading

edge of the wing at the fuselage.

Low Rate

High Rate

Aileron:

1/4 inch (6.4mm)

3/8 inch (9.5mm)

Elevator: 1/4 inch (6.4mm)

3/8 inch (9.5mm)

Note: The small oval panel line on the top

of the wing marks the correct CG location.

1. Remove the canopy from the fuselage.
2. Loosen the hook and loop strap.
3. Put the fully charged battery in the battery cavity in the fuselage.
4. Tighten the hook and loop strap around the battery.
5. Connect the EC3 battery connector to the ESC power

connector only when preparing to fly the model.

6. Put the canopy pins in the fuselage, align the

canopy with the fuselage and close the canopy.

NOTICE: Always disconnect the Li-Po battery from the ESC of the air-

craft when not flying. Failure to do so will render the battery unusable.

CAUTION: Always keep hands away from propeller.

When armed, the motor will turn the propeller in response
to any throttle movement.

Installing the Flight Battery
