Intelligent Slot
DS-I 1-3k UPS User Manual
Annex A. Intelligent Slot
There are two types of intelligent slot for option: DB9, phoenix terminator.
Max output current for intelligent slot is 1A.
The functions of intelligent slot are listed as fig.7:
12~24VDC
Bypass mode
1
6
2
3
4
5
9
8
7
Battery low
UPS is on
Utility fail
UPS fail
General alarm
Remote
shutdown
GND
VCC
(a)DB9 (b) Phoenix port

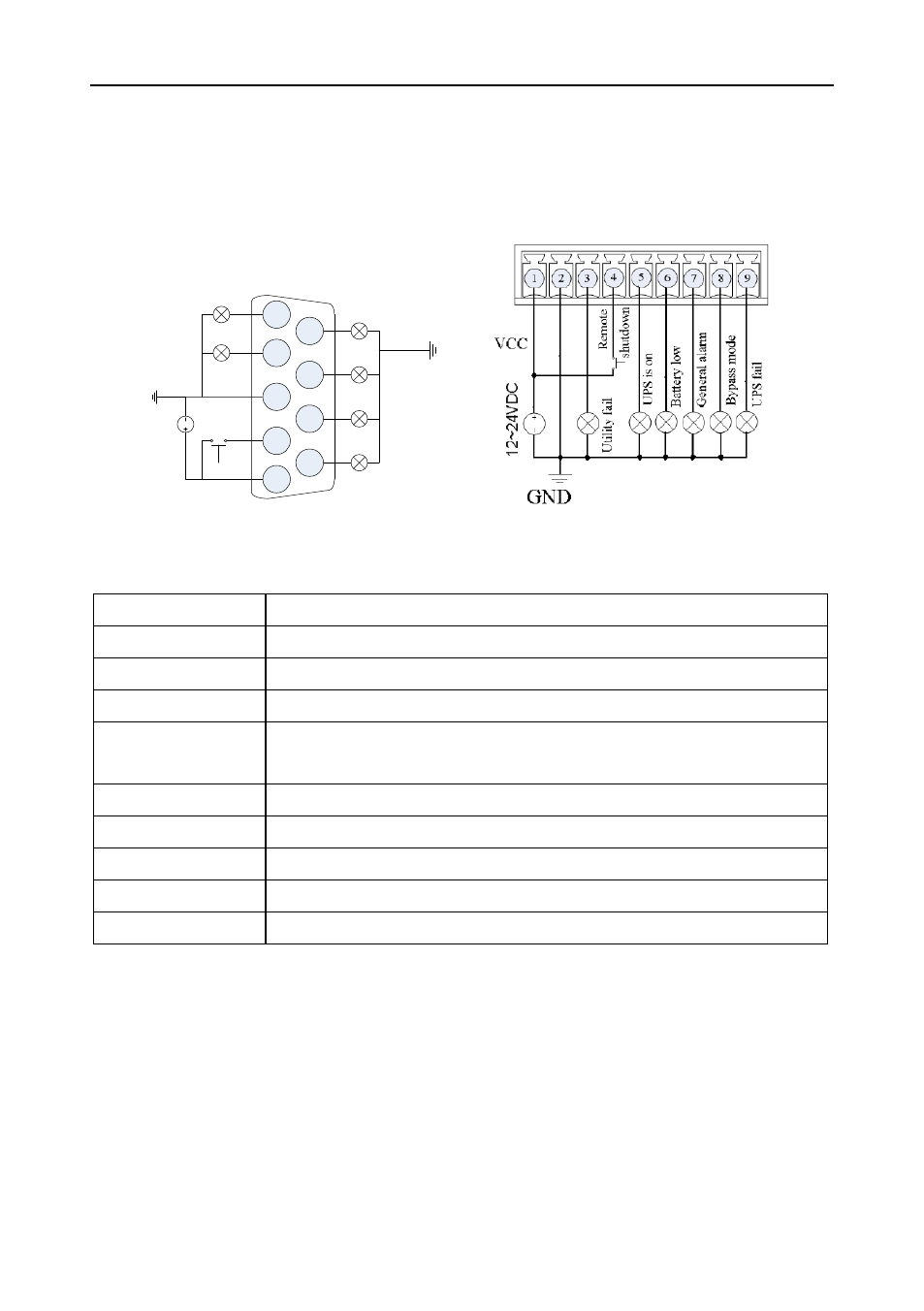

Fig.7 User wiring diagram of intelligent slot
Description of intelligent slot:
Function Description
UPS fail Low voltage if something is failure in UPS. If not, high voltage
General alarm Low voltage if something is abnormal. If not, high voltage
GND Common connection
Remote shutdown UPS shutdowns rectifier and inverter if utility is normal. UPS
shutdowns completely if in battery mode. Close switch to activate.
Power supply 12VDC~24VDC, external power supply
Bypass mode High voltage if UPS works in bypass mode. If not, low voltage
Battery low Low voltage if battery voltage is low. If not, high voltage
Normal mode High voltage if UPS works in normal mode. If not, low voltage
Utility fail Low voltage if utility is failure. If not, high voltage.
