Delta Electronics Hybrid Choke CDE20H - Manual

INDCUTANCE
COMMON MODE
(mH) Min. (uH) Min.
NORMAL MODE PART NO. DCR
(m )Max.
RATED CURRENT
(Aac)
TEMPERATURE
o RISE( C )Max.

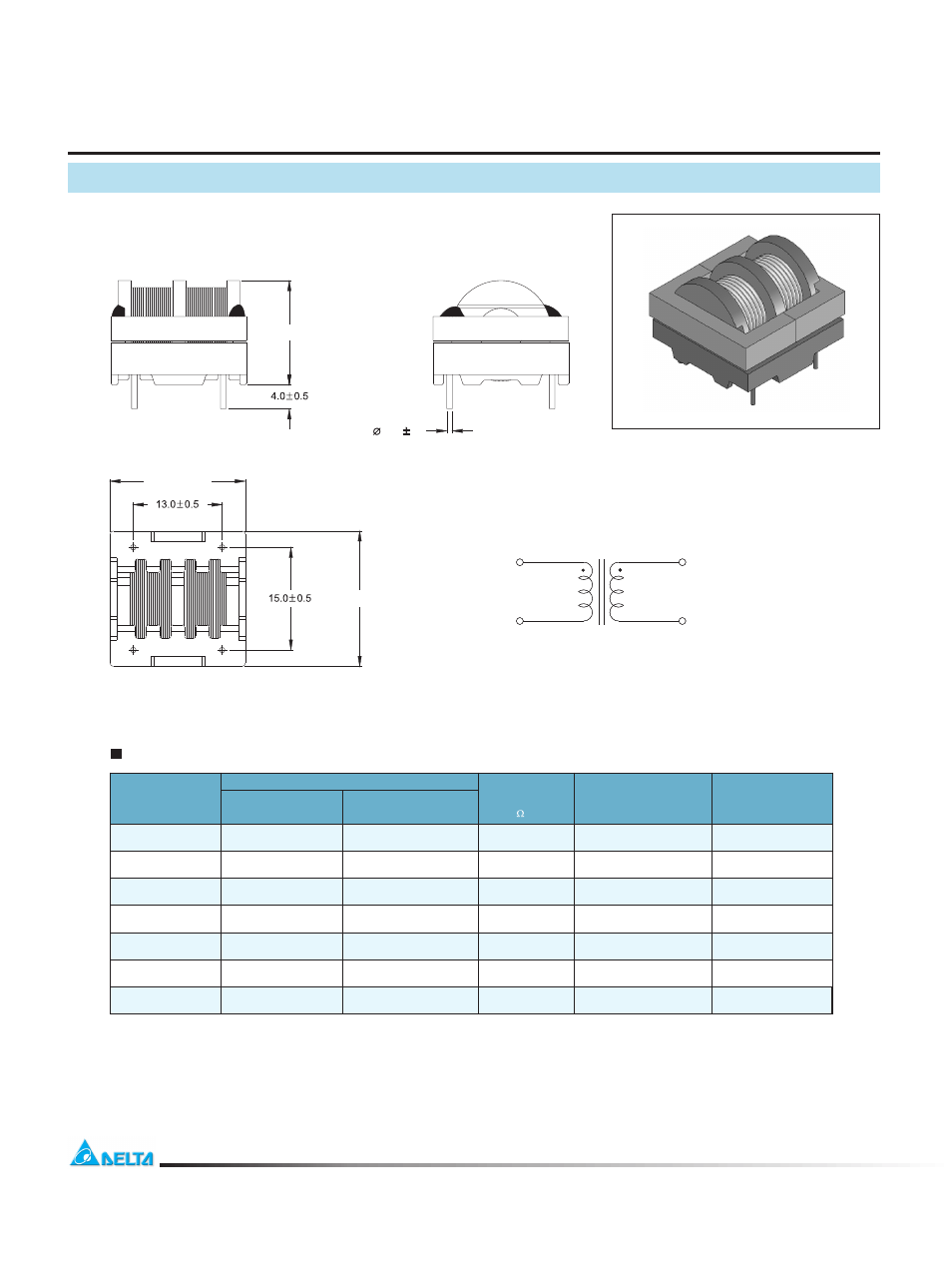

Mechanical Dimension:
CDE20H Type
Unit: mm
o AT 25 C, 40KHz/1V Tested:
Electrical Characteristics:
DELTA ELECTRONICS, INC.
(TAOYUAN PLANT CPBG)
1
252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.
TEL: 886-3-3591968; FAX: 886-3-3591991
http://www.deltaww.com
CDE20H01 23.2 1365 1200 0.6 45
CDE20H02 13.4 790 685 0.8 45
CDE20H03 8.3 422 425 1.2 45
CDE20H04 6.3 292 290 1.6 45
CDE20H05 3.7 160 185 2.2 45
CDE20H06 2.4 112 120 2.5 45
CDE20H07 1.7 84 85 2.8 45
Hybrid Choke
16.0 Max.
22.0 Max.
22.0 Max.
1
2 3
4
0.80 0.1
1
2 3
4
Schematic :
L1 L2
* WITHSTANDING VOLTAGE BETWEEN L1 & L2 1.5KV 1 MINUTE.
* NORMAL MODE INDUCTANCE TEST CONDITION IS AT RATED CURRENT.
