IG7600 Administration Manual
6.6.3 System
Use the System screen to configure the System function related parameters. It is
separated into five parts:
 Numbering Plan
 Service Mode
 Transmission
 SMDR
 UCD Call Log
6.6.3.1 Numbering Plan

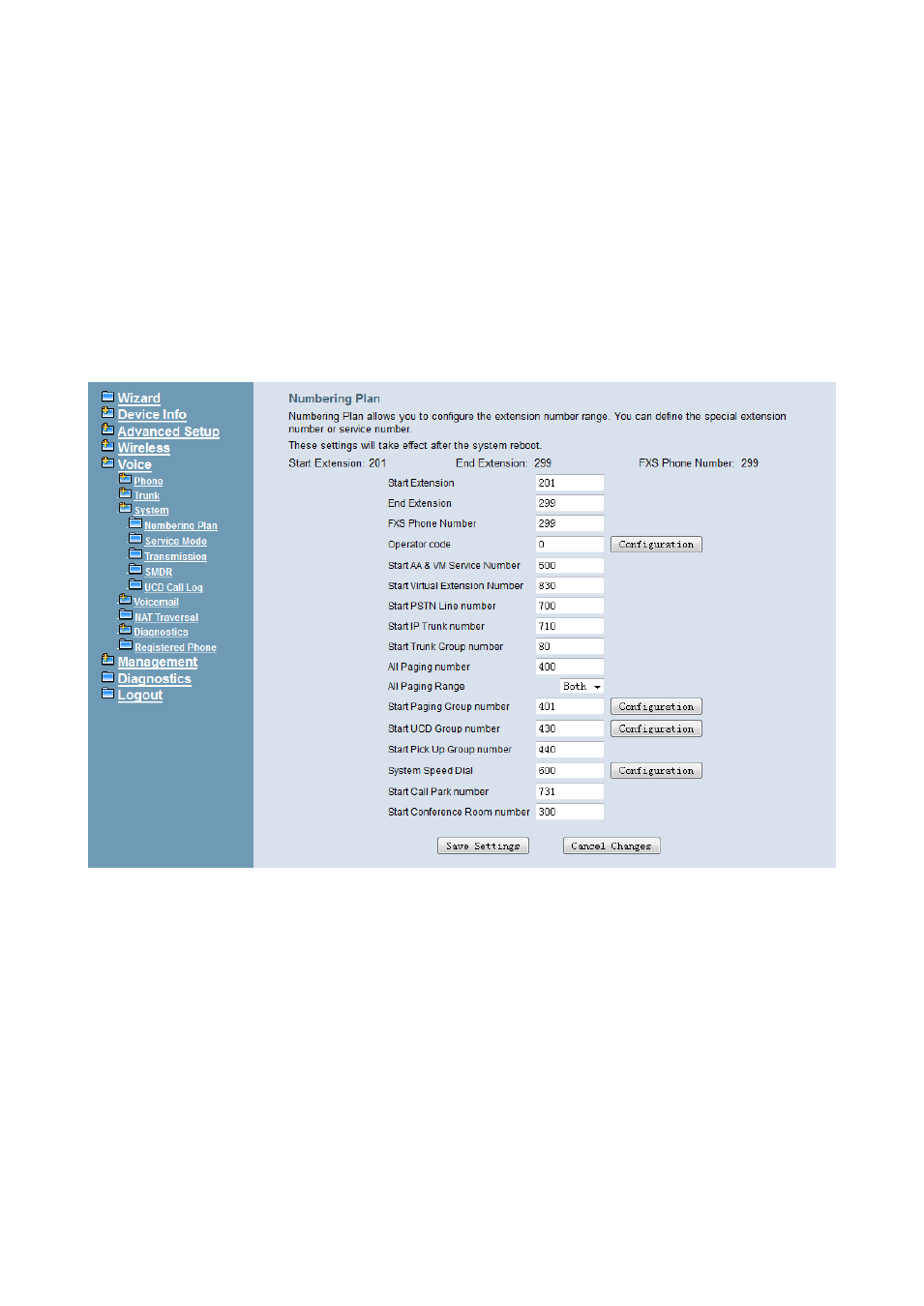

Figure 6-60. Voice – System – Numbering Plan
This page allows you to configure extension number range. You can also define some
special service numbers in the table. (Figure 6-60)
Start extension: It’s the start phone number of system internal extension. All valid
extension number can’t be smaller than it.
End extension: It’s the end phone number of system internal extension. All valid
extension number can’t be greater than it. If receiving an IP2061/M22/M62’s Plug &
Play request, IG7600 will allocate the first unused number from this limited region.
FXS Phone Number: It determines the FXS phone number.
Operator speed-dial number: If dial this number, the operator extension will be called.
The length is limited on 1 character.
When you press the “Configuration” button, the operator-related settings can be
configured: (Figure 6-61)
