IG7600 Administration Manual
6.7.4.2 Services

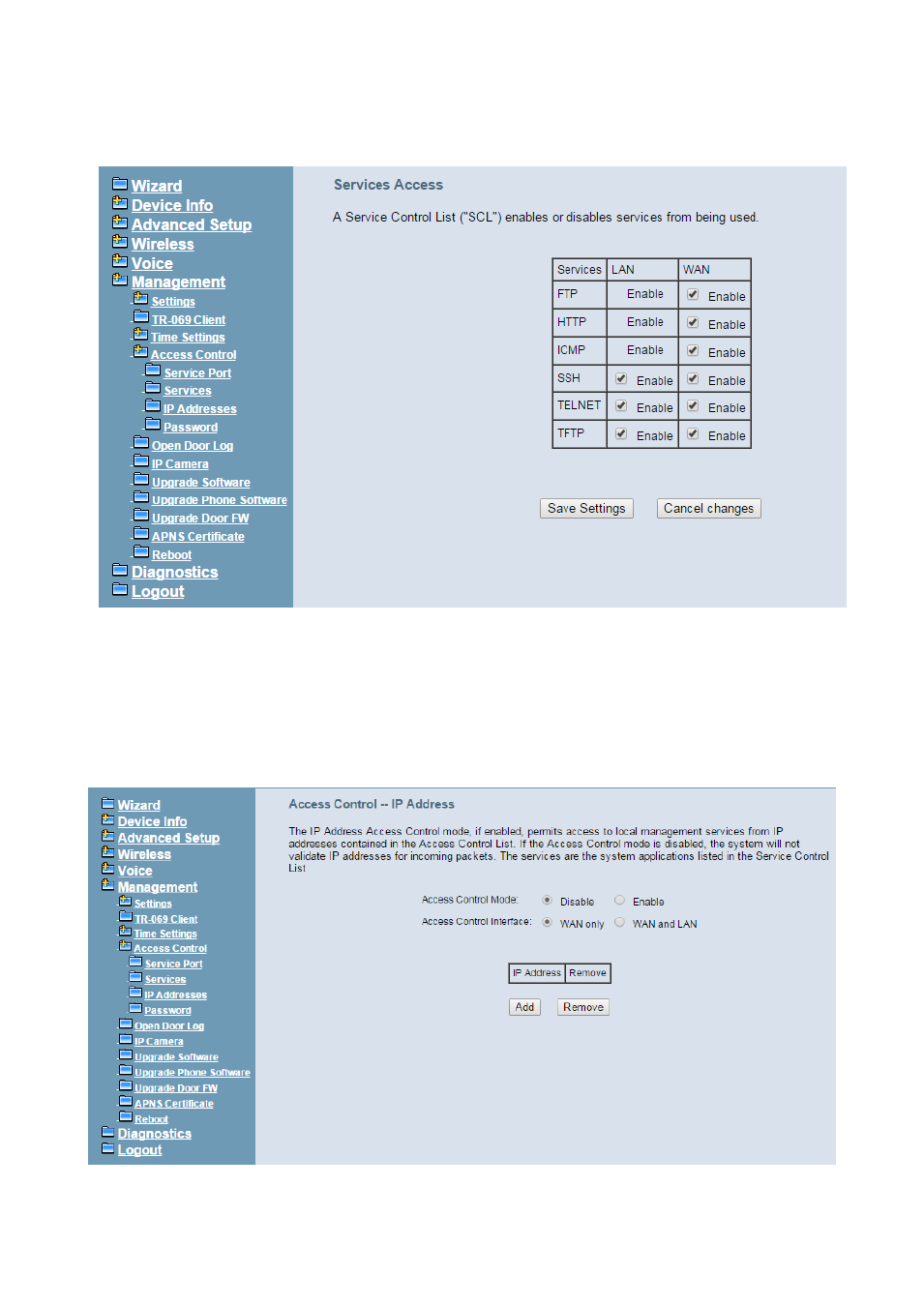

A Service Control List enables or disables services from being used. (Figure 6-97)
Figure 6-97. Management – Access Control –Services
6.7.4.3 IP Addresses
If the Access Control mode is enabled, permits access to local management services from
IP addresses contained in the Access Control List. If disabling the mode, it will not validate
IP addresses for incoming packets. WAN Only and WAN And LAN in Access Control
Interface entries are for you to choose the rule executed on which side of your IG. Make
sure you can connect to IG if you choose WAN and LAN mode. (Figure 6-98)
Figure 6-98. Management – Access Control –IP Addresses
