2. Getting to Know the IG7600
2.1 Front Panel
The front panel contains several LEDs that indicate the status of the IG7600.

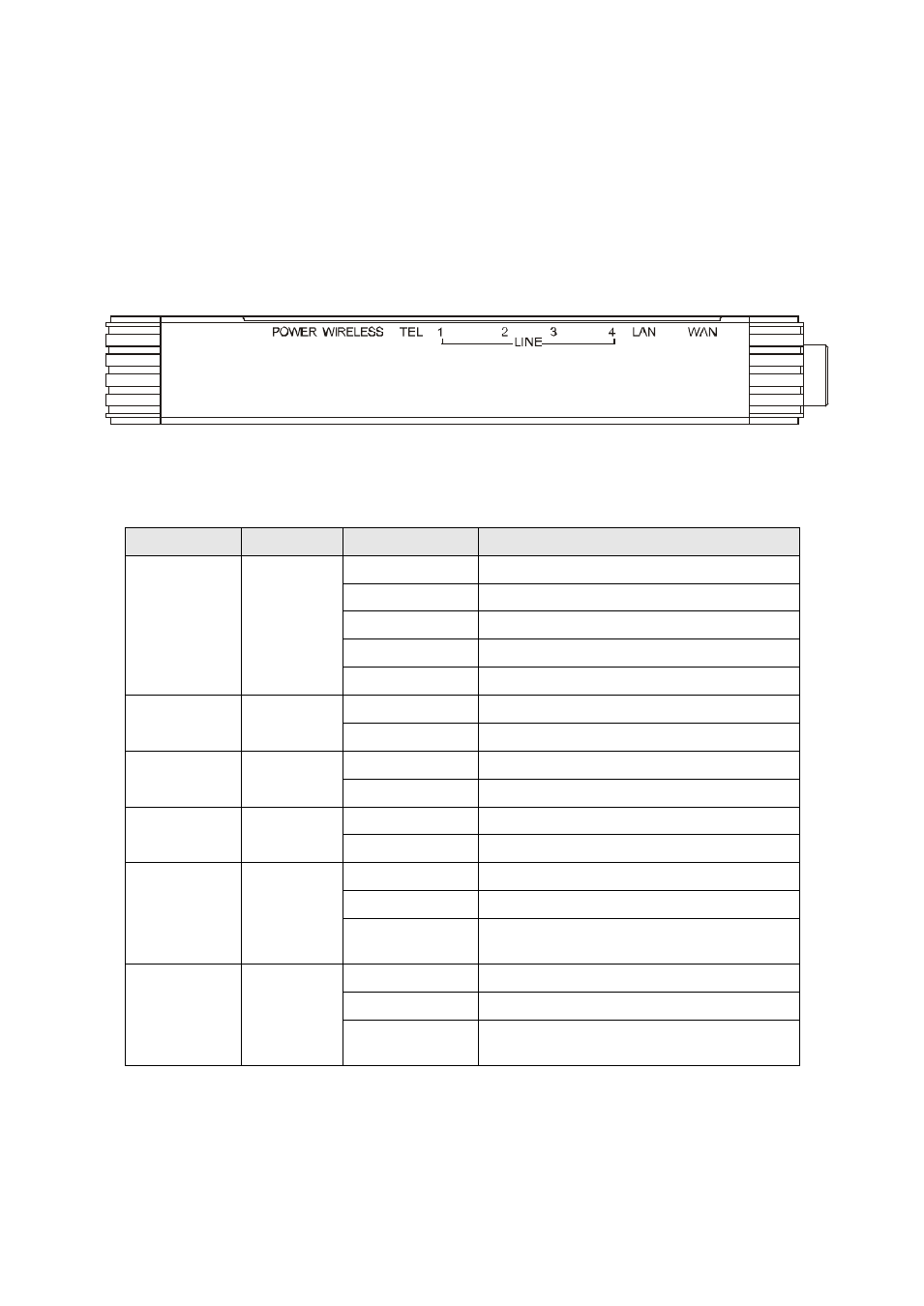

Figure 2-1. Front Panel of IG7600
LED Name
Color
Status
Description
POWER
Red/Blue
Red Flashing
Application Restarting
Red On
Firmware updating
Blue Flashing
System booting up
Blue On
System initialized and running
Off
Power off
WIRELESS
Blue
On
Wireless LAN is active
Off
Wireless LAN is idle
LINE (1-4)
Blue
Off
PSTN Line is idle
On
PSTN Line is active
TEL
Blue
Off
Phone is idle
On
Phone is active
LAN
Blue
On
LAN is connected
Off
LAN is not connected
Flashing
LAN activity present (traffic in either
direction)
WAN
Red/Blue
Blue On
WAN is connected and IP is obtained
Red On
WAN is not connected or no IP assigned
Flashing
WAN activity present (traffic in either
direction)
