MK Plastics KVC IO&M User Manual
Page 6
M.K.Plastics Corp. Montréal, Québec www.mkplastics.com
6

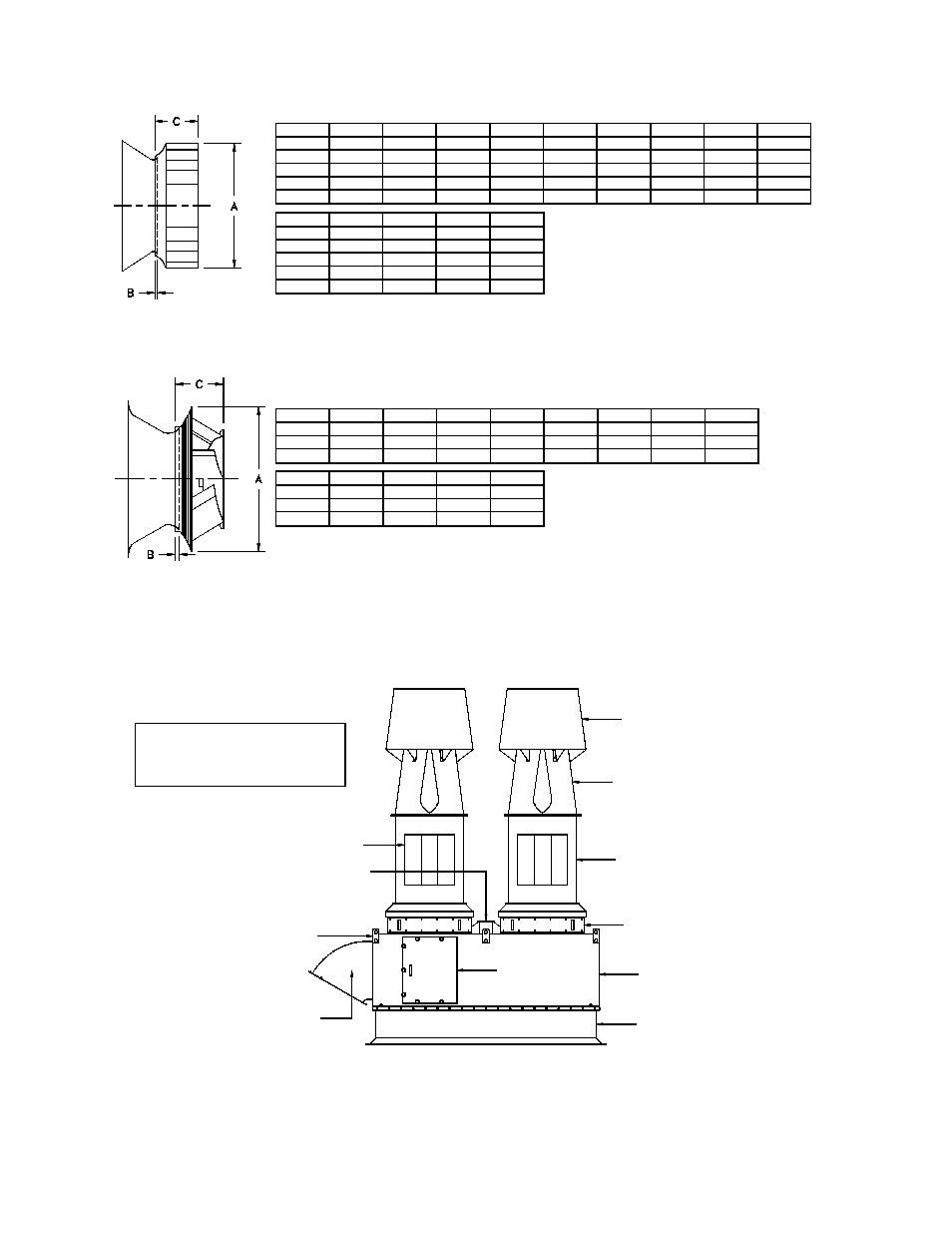

Table-3. Wheel-Funnel Overlap (Centrifugal Impellers)
Table-4. Wheel-Funnel Overlap (Mixed-Flow Impellers)
MOTOR/DRIVE COVER
JIB CRANE BRACKET
BYPASS DAMPER
& WEATHER COWL
LIFTING LUGS
ROOF CURB
PLENUM
ACCESS DOOR
ISOLATION DAMPER
ENCLOSURE
AXIJET-V
DISCHARGE STACK
WINDBAND
MOTOR/DRIVE COVER
JIB CRANE BRACKET
BYPASS DAMPER
& WEATHER COWL
LIFTING LUGS
ROOF CURB
PLENUM
ACCESS DOOR
ISOLATION DAMPER
ENCLOSURE
AXIJET-V
DISCHARGE STACK
WINDBAND
MOTOR/DRIVE COVER
JIB CRANE BRACKET
BYPASS DAMPER
& WEATHER COWL
LIFTING LUGS
ROOF CURB
PLENUM
ACCESS DOOR
ISOLATION DAMPER
ENCLOSURE
AXIJET-V
DISCHARGE STACK
WINDBAND
MOTOR/DRIVE COVER
JIB CRANE BRACKET
BYPASS DAMPER
& WEATHER COWL
LIFTING LUGS
ROOF CURB
PLENUM
ACCESS DOOR
ISOLATION DAMPER
ENCLOSURE
AXIJET-V
DISCHARGE STACK
WINDBAND
MOTOR/DRIVE COVER
JIB CRANE BRACKET
BYPASS DAMPER
& WEATHER COWL
LIFTING LUGS
ROOF CURB
PLENUM
ACCESS DOOR
ISOLATION DAMPER
ENCLOSURE
AXIJET-V
DISCHARGE STACK
WINDBAND
Figure-2. Axijet-V Fan & Plenum Assembly (KVC - Similar)
SIZE
1225
1500
1825
2225
2450
2700
3000
3300
3650
A
12.25
15.00
18.25
22.25
24.50
27.00
30.00
33.00
36.50
B
0.31
0.38
0.56
0.69
0.75
0.88
0.97
1.06
0.94
C (CL 1)
4.69
5.86
7.36
8.89
9.86
10.91
11.89
13.31
14.72
C (CL 2)
4.72
5.86
7.42
8.95
9.86
10.91
11.89
13.31
14.72
C (CL 3)
-
-
7.48
9.08
9.92
10.97
12.14
13.38
14.78
SIZE
4025
4450
4900
5425
A
40.25
44.50
49.00
54.25
B
1.03
1.13
1.25
1.38
C (CL 1)
16.23
17.92
19.64
21.70
C (CL 2)
16.23
17.92
19.64
21.70
C (CL 3)
16.30
17.98
19.70
21.83
Note: Use 'B' dimension for positioning wheel.
Size
1500
1825
2225
2450
2700
3000
3300
3650
A
18.25
22.25
27
30
33
36.5
40.25
44.5
B
0.56
0.69
0.88
0.97
1.06
0.94
1.03
1.13
C
6.19
7.56
9.13
10.19
11.19
12.38
13.63
15.13
Size
4025
4450
4900
5425
A
49
54.25
60
66
B
1.25
1.38
1.56
1.69
C
16.63
18.38
20.25
22.31
Note: Use 'B' dimension for positioning wheel.
NOTE: On KVC fans, the
discharge stack is replaced
with a velocity cone.
