9

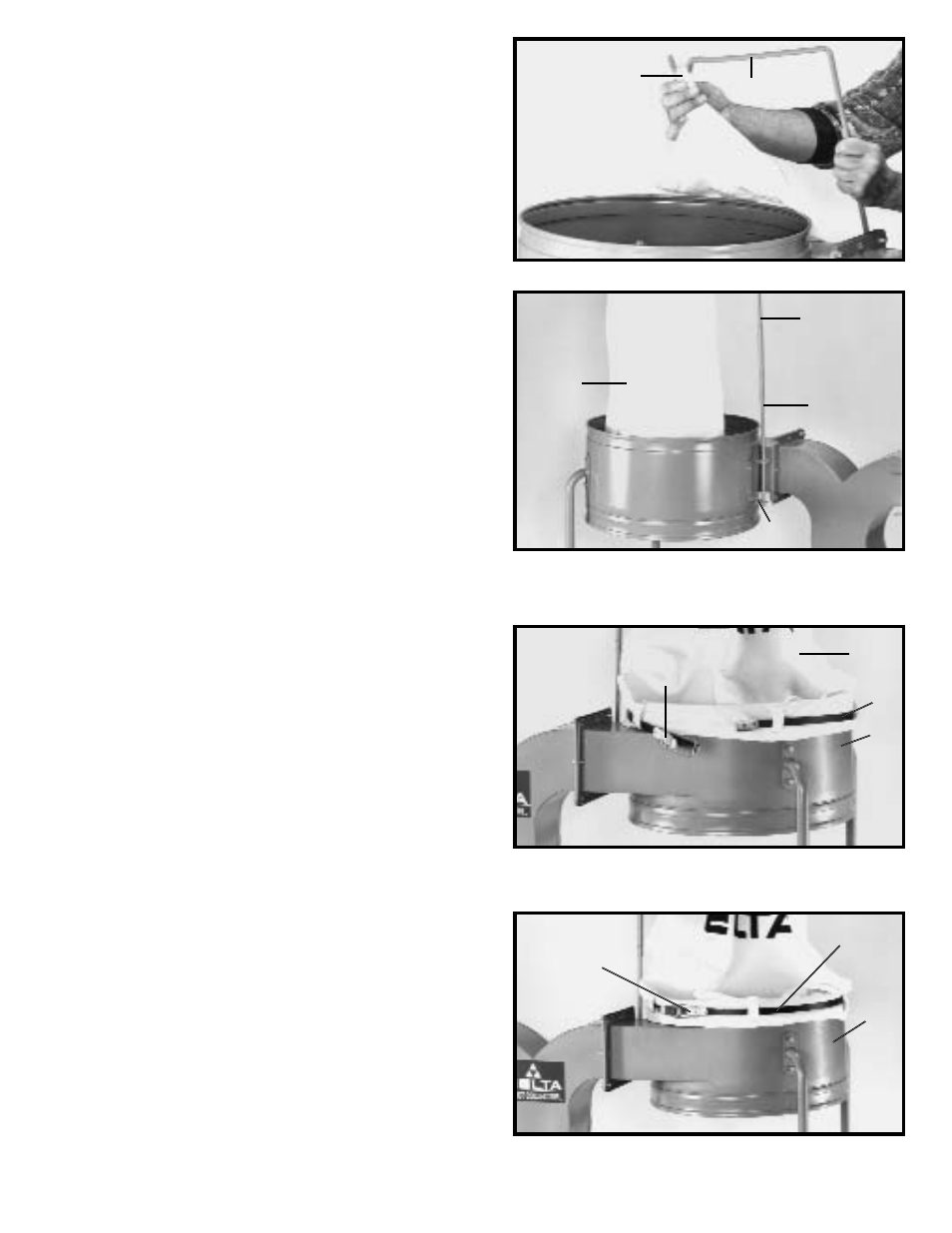

Fig. 22
Fig. 23
Fig. 24
Fig. 25
ASSEMBLING FILTER
AND DUST COLLECTION
BAGS TO DRUM
1. Hook the loop on the top of filter bag (A) Fig. 22, onto
filter bag support rod (B) as shown.
2. Assemble extension rod (C) Fig. 23, into the end of
filter bag support rod (B). Raise support rods (B) and (C),
with filter bag (A) attached and place end of extension
support rod into holes of bracket (D). NOTE: Flared
end of filter bag extension rod will prevent the rod from
sliding through bracket.
3. Insert band (F) Fig. 24, through the loops of filter
bag. Position open end of filter bag (A) Fig. 24, over
upper lip of drum (E) and fasten with clamp (G) as shown
in Fig. 25. NOTE: Make certain band (F) is positioned in
the channel of drum (E) before fastening clamp (G).
A
B
D
C
B
A
G
A
F
E
G
F
E
