Read through these operating instructions even if you
already have prior experience with weighing
equipment, before you work with the weighing
machine and pay attention to the Safety
recommendations (see Chapter 1 Safety).
3.2 Scope of delivery
Inspect delivery for completeness immediately upon
unpacking all components.
Checklist for complete delivery
Component delivered present
yes / no
Weighing unit with platter
Indicator
Stainless steel column
Six screws
2 washers, 2 nuts
Power adapter
Operating manual
18
3.3 Assembling your weighing machine
The weighing machine is delivered in a partly dismantled
condition. Assemble the individual components in the
following sequence:
−
Place the unit base on a flat and level surface away
from water, condensation, direct heat and direct
sunlight.
−

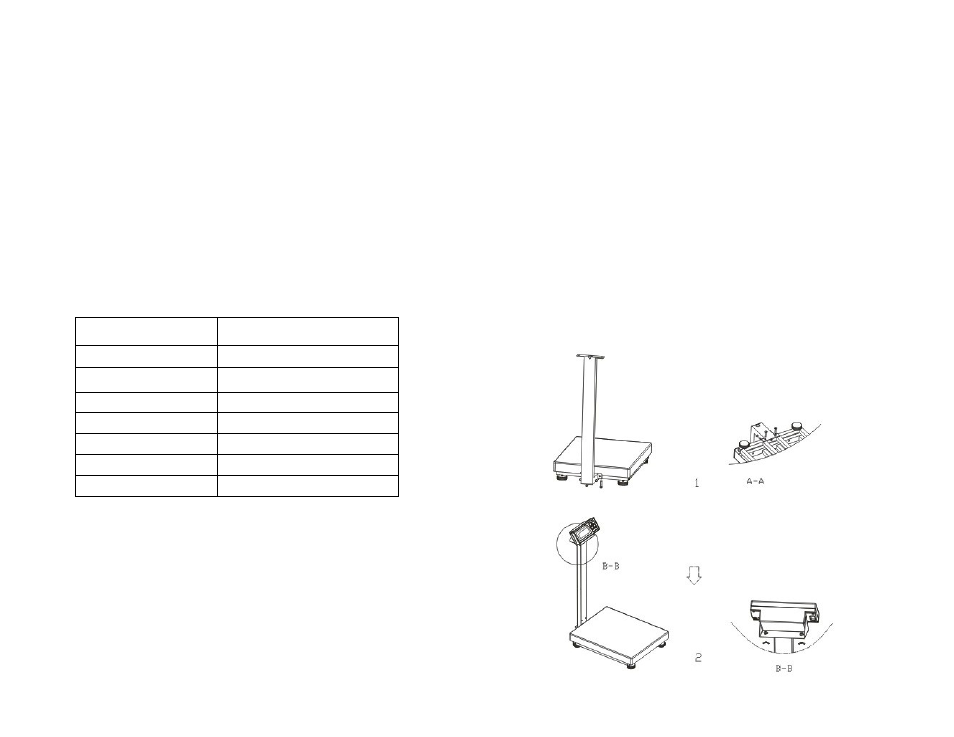

Fix the stainless steel column onto the base with the
four screws provided as shown in figure A-A.
−
Next, fix the indicator on top of the stainless steel
column with the two screws, two washers and two
butterfly nuts provided as shown in figure B-B.
