2 Your weighing machine
2.1 Construction and functions
2.1.1 Construction of the weighing machine
The weighing machine consists of (1) the indicator, (2), the
rectangular metal support tube, (3) the platform and base unit,
(4) the adapter and this operating manual.

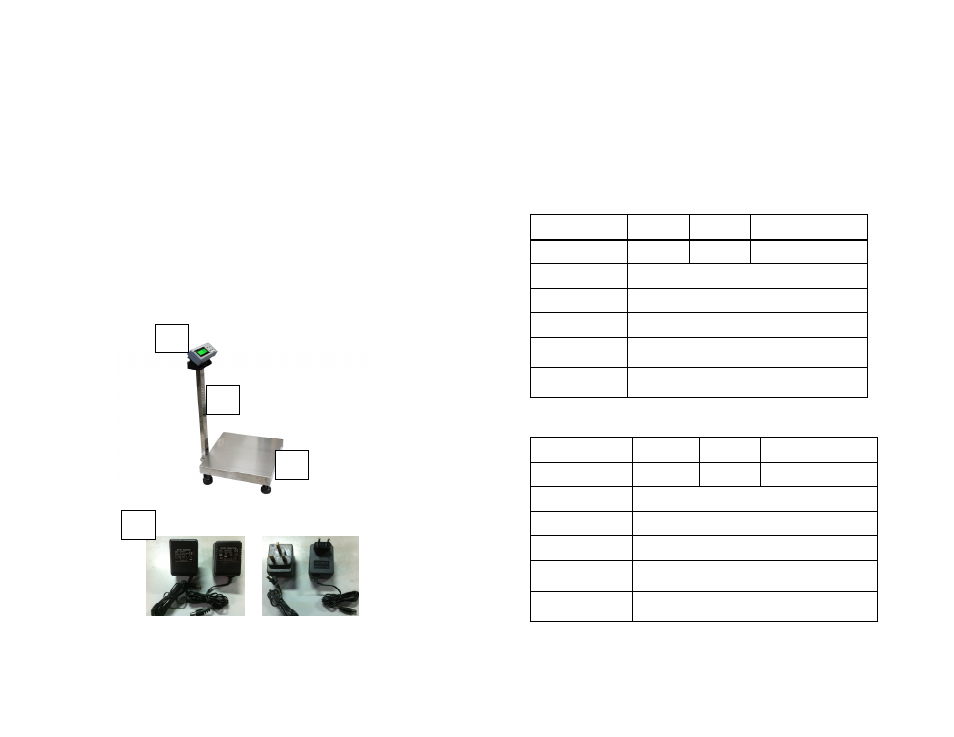

Figure 2.1 Your weighing machine
1
3
2
4
10
2.1.2 Functions of the weighing machine
The LBS Series are high-quality electronic precision weighing
machines with the following specifications:
1. Imperial weight unit version
Model number Capacity Division Weighing pan Size
LBS M-1-0613 500 lbs 0.1 lb 18 x 24 in
Package
Standard carton
33 x 28 x 7 in³
Package
Master carton
1 unit / carton
Shipping weight 45 lbs
Operating
Temperature
41 - 95 ºF
Power Source
Rechargeable batteries or AC/DC
Adapter 120V/500mA
2. Metric weight unit version
Model number Capacity Division Weighing pan Size
LBS M-1-0613 227 kg 0.05 kg 45.72 x 60.96 cm
Package
Standard carton
83.82 x 71.12 x 17.78 cm³
Package
Master carton
1 unit / carton
Shipping weight 20.41 kg
Operating
Temperature
5 - 35 ºC
Power Source
Rechargeable batteries or AC/DC
Adapter 12V/500mA
