Livorsi Marine, Inc. Platinum Series Installation Instructions Rev C 4 of 6
715 Center Street Grayslake IL 60030
P: 847-752-2700
F: 847-752-2415
Plantinum Series Control Installation Instructions- Hybrid (Electric/Mechanical)
For Livorsi Hybrid Plantinum Series controls where either the throttle is electronic and shift is
mechanical or vice versa, the use of 33C series cables are needed.
1. When installing new controls it is suggested to use new cables. When removing old cables,
attach new cables and route as you remove old cables.
2. After connecting cables to engine and transmission, connect cables to controls

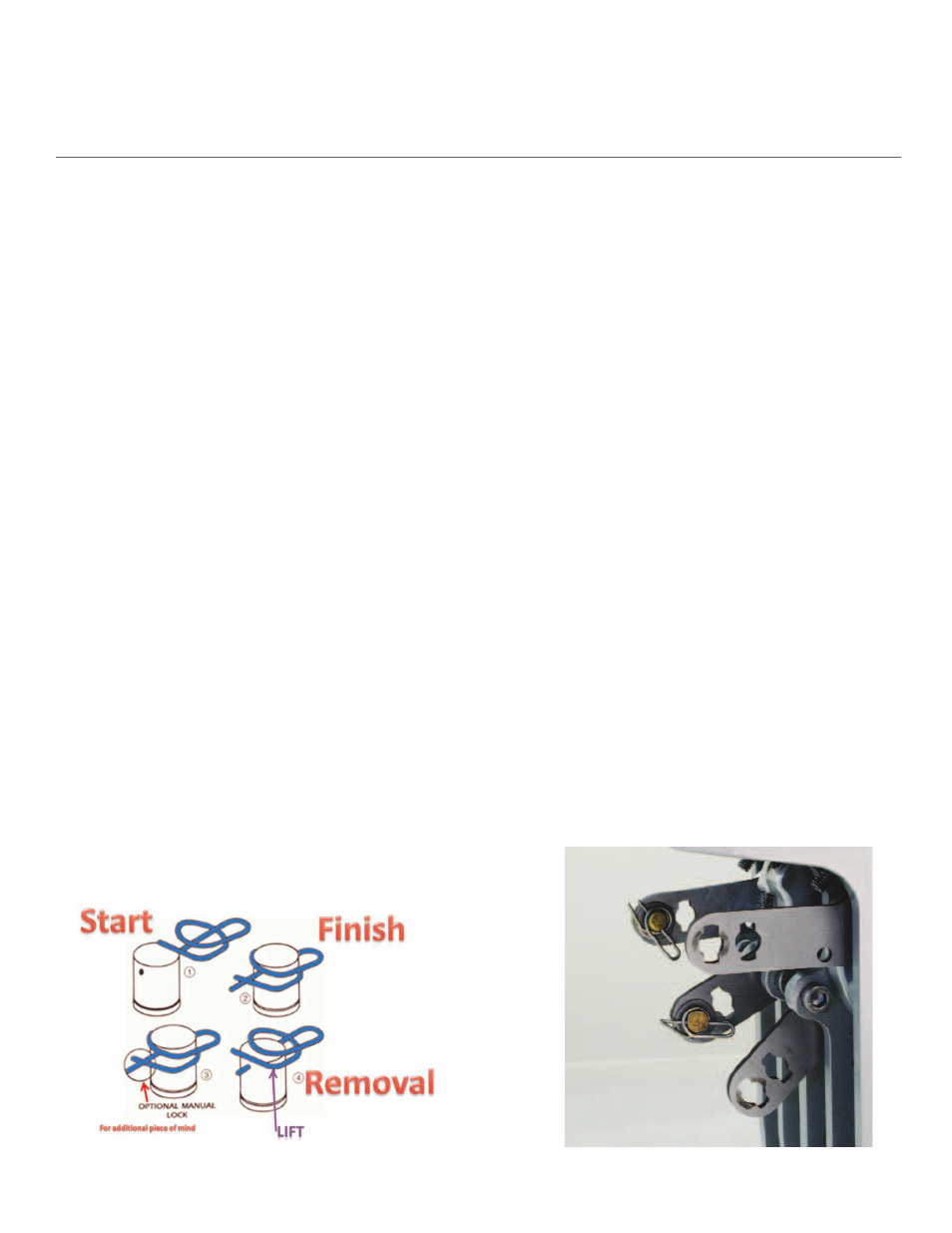

using hardware provided. Screw end clevis on cable. Remove plate or brad on side of
lever to expose installation point.
Note:
Two mounting points are provided to adjust different cable throws.
3. Install pin in clevis and insert into desired mounting hole. Reinstall brad to hold pin.
4. Use "U" bracket to secure cable to base of control.
5. Repeat on additional handles before installing control in desired installation location.
6. Control is now ready to be installed in the desired location.
7. Use the included O-rings and stainless steel wood screws to secure the control to
surface. These O-rings and stainless steel wood screws MUST be used to install the
control or it will
void the warranty on the control. Do not over tighten. Use grease on
screws for first time installation.
WARNING: Make sure to adjust cables before operating engines.
