Lingenfelter Katech Cadillac CTS-V Stainless Steel Short Throw Shifter - Manual (Page 6)

Created on 11/30/2007 Page 6 of 10

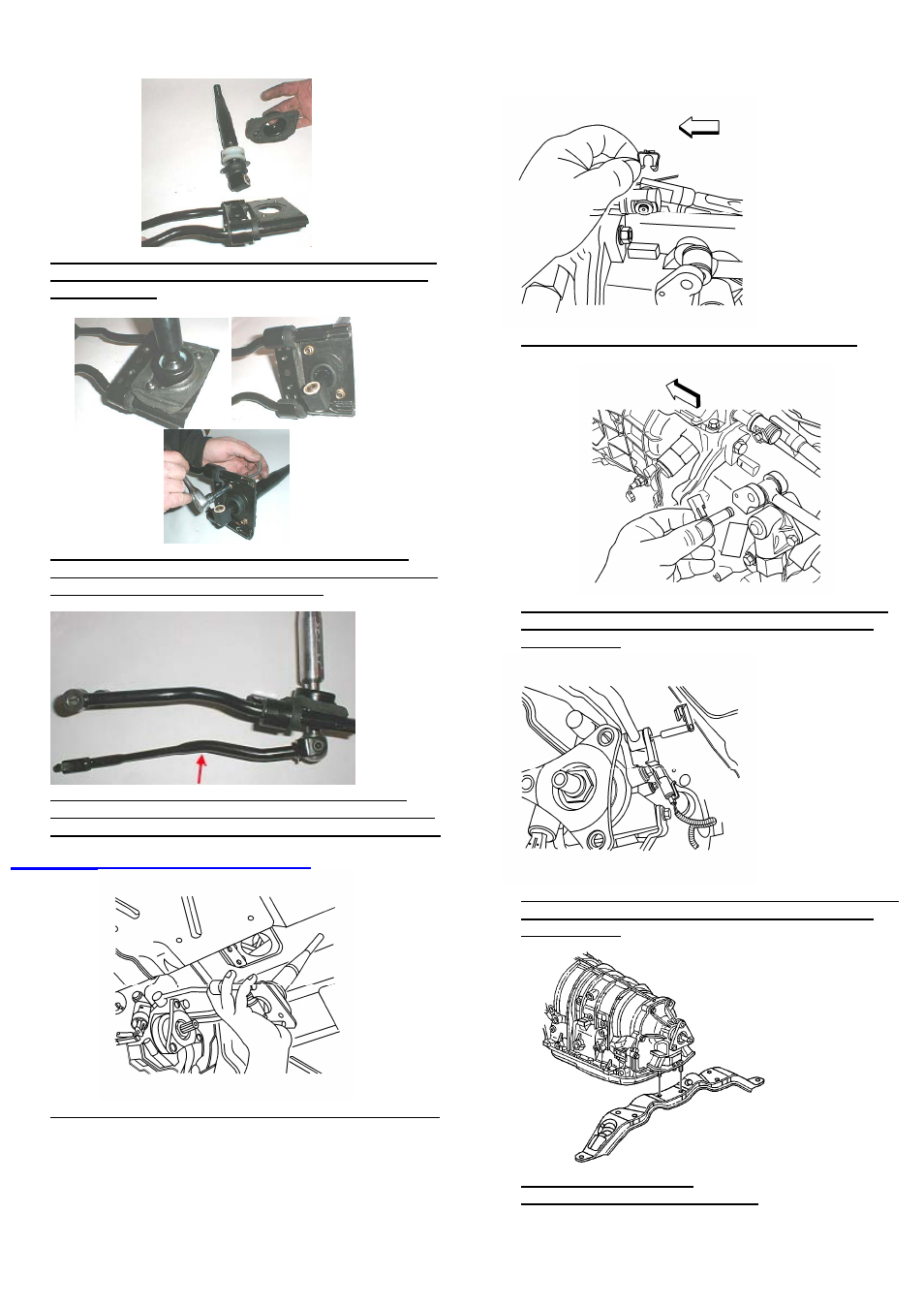

26) Place the shift lever into the base plate and place the
top retaining plate over the shift lever till it contacts
the base plate.
27) Insert the supplied pan head bolt through the top
retaining plate rivet holes and secure underneath the
baseplate with supplied flanged nuts.
28) Reinstall shift rod onto shift lever, noting correct
shift rod position and that the flat portion of the shift
lever labeled FRONT is facing the front of the vehicle.
Installation Procedure
1. Install the shift control assembly to the transmission.
2. Install the center shift control rod pin retainer.
3. Install the left side shift control rod pin. Rotate the
pin in order to lock the retainer into place on the
transmission.
4. Install the right side shift control rod pin. Rotate the
pin in order to lock the retainer into place on the
transmission.
5. Raise the transmission.
6. Install the transmission support.
