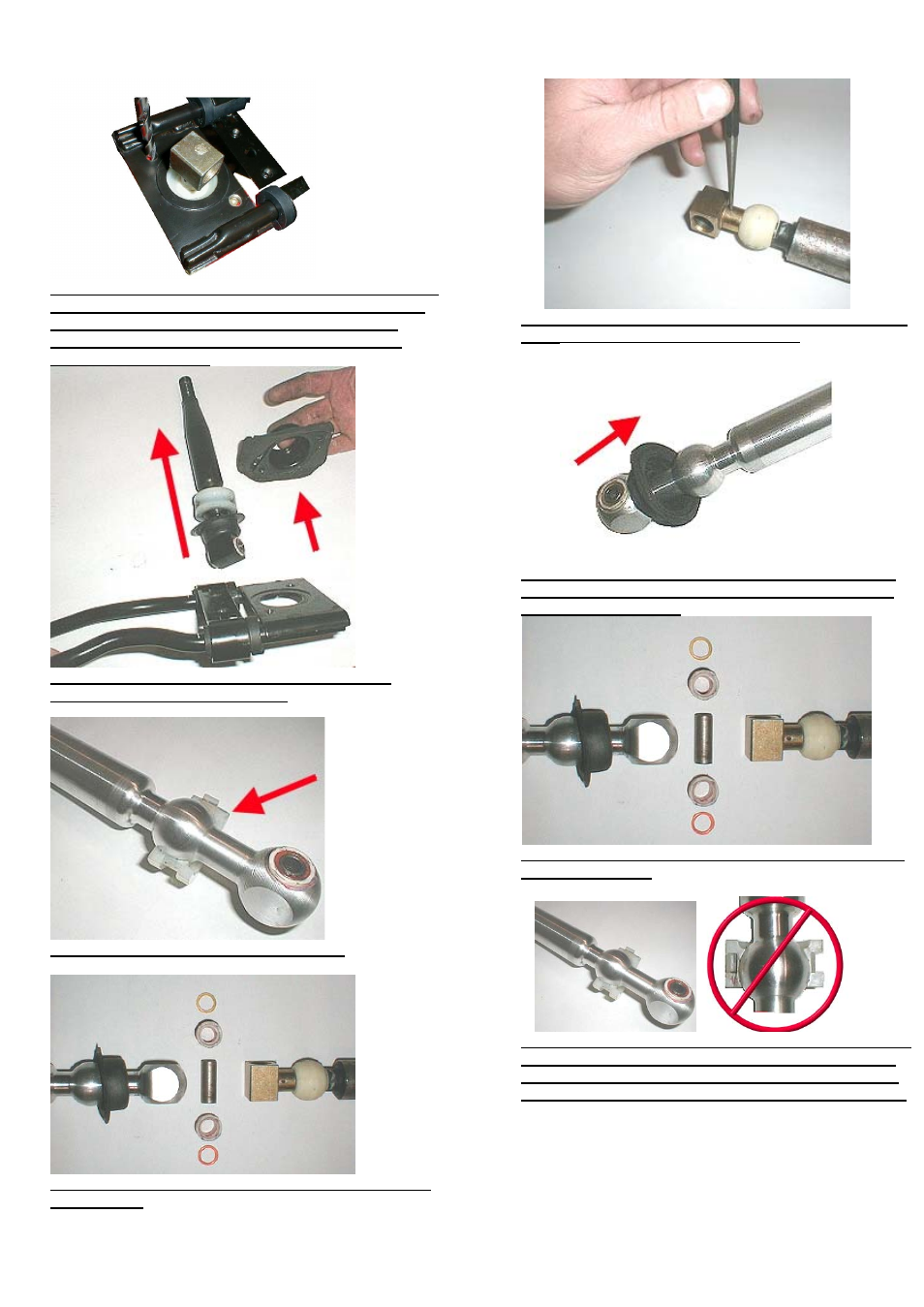

18) After removing the shifter assembly from the vehicle,
secure the shifter baseplate and prepare to drill out
the two rivets that retain the shifter cover to the
baseplate with the supplied 5/16 drill. Debur the
drilled out rivet holes.
19) Pull up on the shifter to remove the shifter and
shifter cover from the baseplate.
20) Remove the nylon collar from the shifter
21) Remove the bushing, seals and spacer from the end
of the shifter
22) Using supplied 1/16” roll pin punch, drive out the roll
pin retaining the T-shaped shifter end.
23) Remove the shifter boot black seal from old shifter.
Lubricate linkage end of shifter and slide boot over
new shifter as shown.
24) Install removed bushing, seals and spacer onto shift
rod end of shifter.
25) Install half of the removed nylon collar as shown with
the shift lever sphere positioned near the top of the
collar. Apply a light coating of grease to the sphere
surface and snap the other half of the collar in place.
