Lingenfelter L850131410 Camaro Ram Air Hood v 0.8 User Manual
Page 11
Page 10.

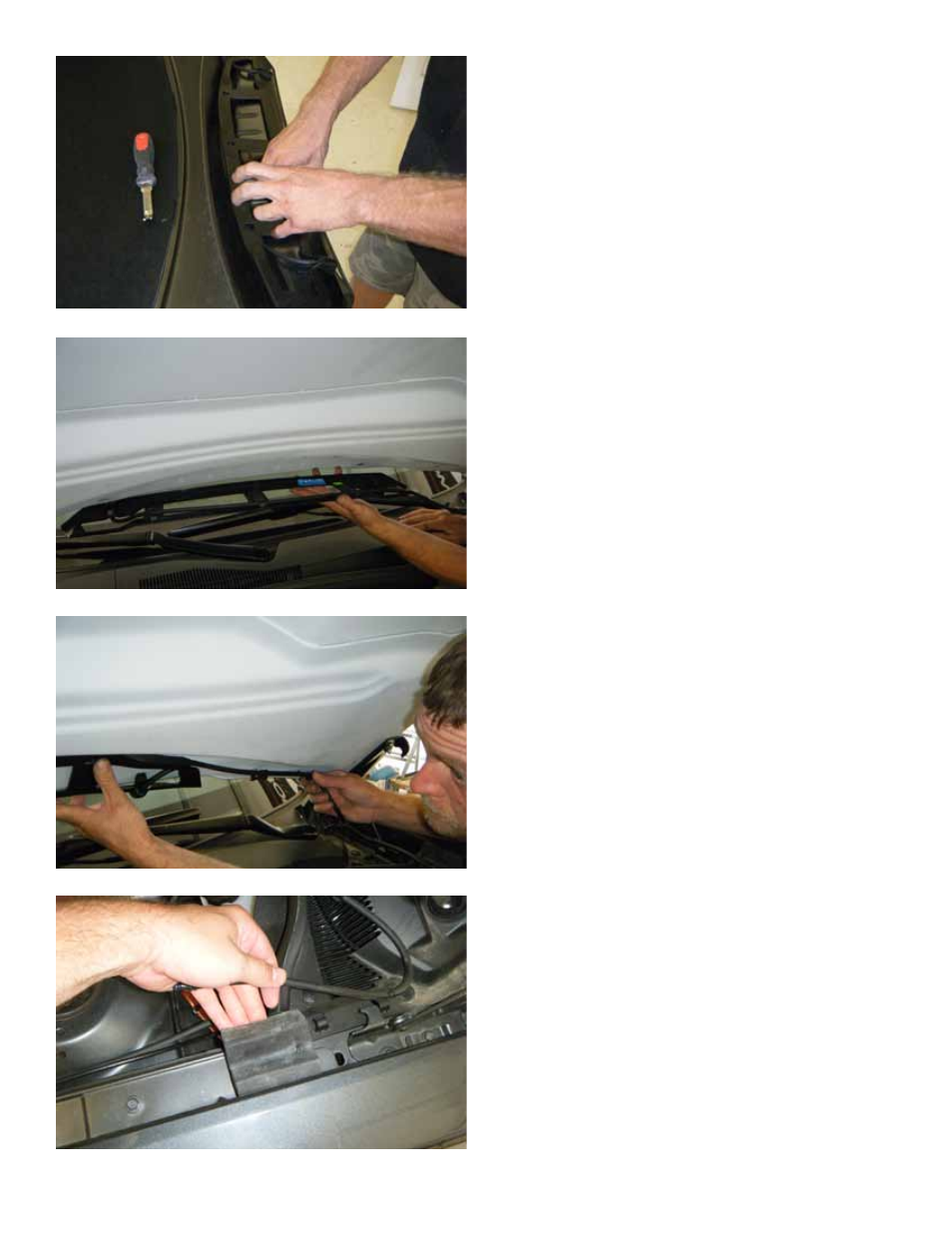

29. Remove the windshield washer water line
bracket from the underside of the hood by pulling
up from the middle of the bracket.
30. Install the windshield washer water line
bracket on the underside of the LPE ram air hood
as shown. The bracket will snap into place.
32. Re-connect the windshield washer water
line by snapping the line back into the outline line
as shown.
31. Pop the three (3) plastic windshield
washer water line retaining clips into place.
