Before connecting the wiring harness to the new 100 mm MAF sensor, you need to re-pin the
connector by swapping pins E & D. If you do not feel comfortable re-pinning the connector, a plug
and play adapter harness is available from LPE (PN L480020206). Contact LPE or your
LPE distributor for details.

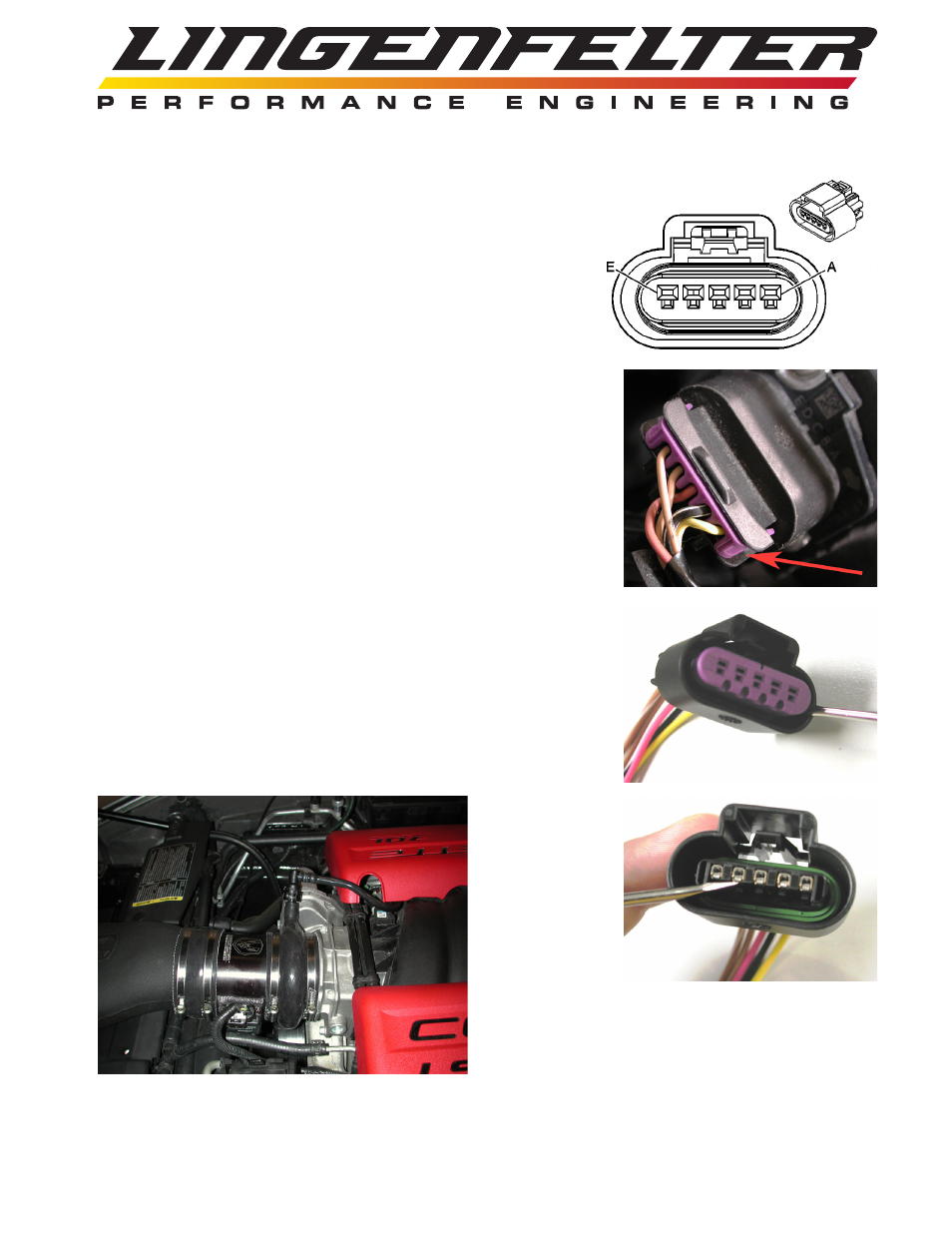

2006-2007 Z06 Corvette connector
Pin Wire Color Circuit No. Function
A YE 492 MAF Sensor Signal
B BK/WH 451 Ground
C PK 539 Ignition 1 Voltage
D TN 2760 Low Reference
E TN 472 IAT Sensor Signal
To re-pin the MAF sensor harness connector:
• If your MAF connector is equipped with the purple locking plate/wire
loom shown in the image (see red arrow), use a small screw driver to
remove the plastic locking plate/wire loom from the back of the harness.
•
Using a small screw driver, remove the purple plastic pin guide from the
inside of the connector (see picture below).
• Make note of the wire positions (see table above). We recommend
putting tape or something on one of the two wires to make it easier to
tell them apart once you have removed them from the connector.
•
Again using the blade of a thin screw driver, VERY gently pry back the
plastic locking clips from the metal pins on pins D & E (tan wires). While
prying back the plastic clip, gently pull on the wire for that pin and the
wire should pull out easily. Repeat the process for the other pin. Now
reinstall the wires, swapping the wire and pin from D into E and from E
into D.
•
Replace the plastic pin guide
• If equipped, replace the plastic locking plate/wire loom.
•
Connect the MAF sensor harness connector to the MAF sensor.
• Replace the gray retaining clip on the MAF harness connector.
