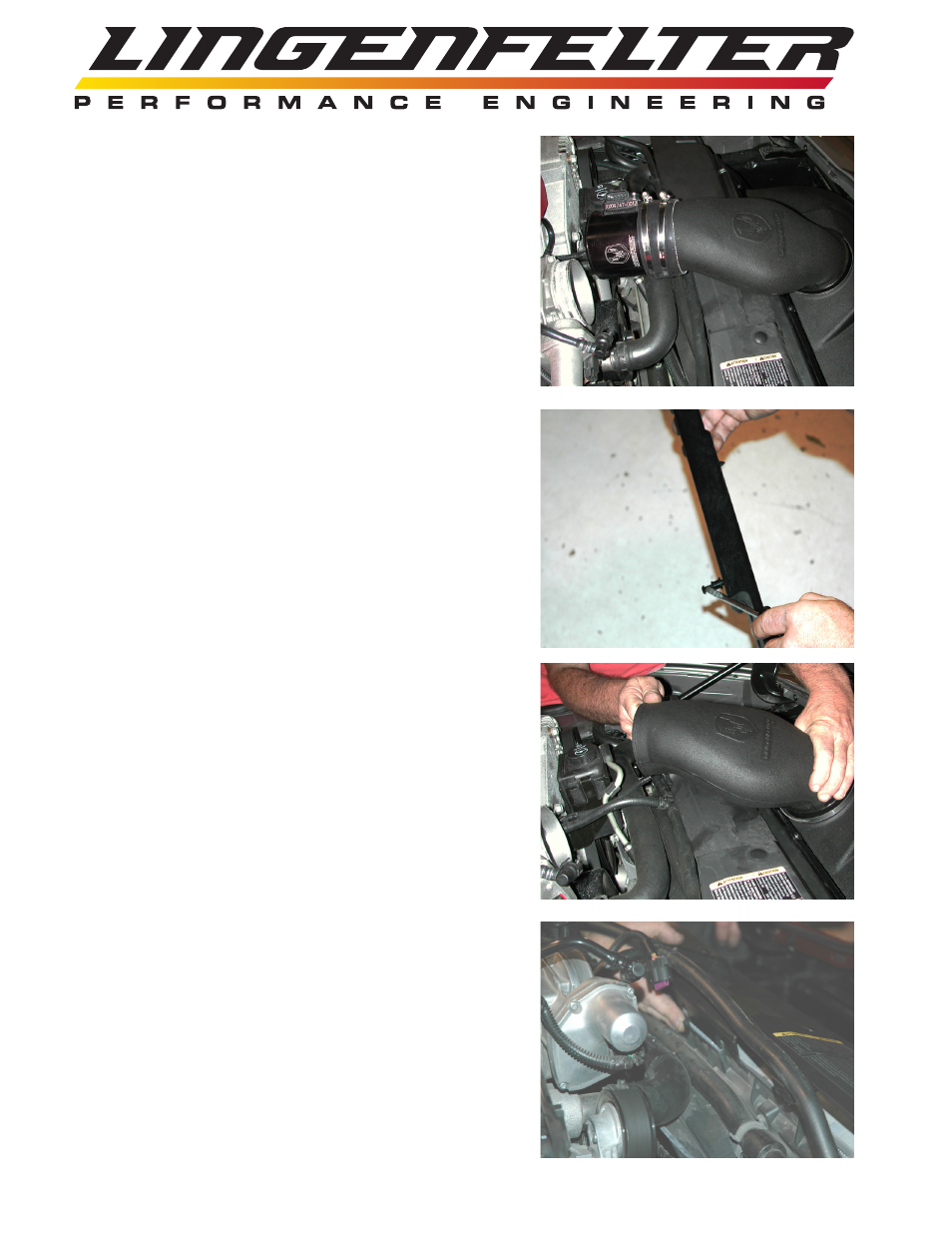

Assembling the duct work:
Slide the larger (100-120 mm) worm gear clamp over the
neck of the air filter in the airbox assembly.
Using a rotating motion, work the large end of the air-
bridge into the air filter neck, do not tighten the clamp
at this time. The logo on the air-bridge should face as
shown in the image.
On the other end of the air-bridge, install the supplied
straight silicone coupler. Slide two 90-110 mm clamps
onto the coupler.
Rotate the air-bridge to the left of the throttle body to
continue assembly (see picture).
Install MAF sensor housing into the coupler. Make sure
the arrow on the sensor is pointing towards the engine.
WARNING: Installing the MAF sensor tube in
the wrong direction is known to cause drivability
problems and/or the P0101 Diagnostic Trouble
Code (DTC). Make sure that the arrow on the MAF
sensor is pointed in the direction of the air flow
(towards the engine).
Page 5 0f 9
Use four of the supplied push lock plastic rivet fasteners
to secure the airbox flange to the shroud. Pinch pieces
together as tight as possible while securing the fasteners.
From underneath the vehicle, starting with the bottom,
center fastener, install the remaining seven fasteners,
pinching pieces tight together while fastening.
Remove two plastic pins from the top mount radiator
shroud by prying up center nail, then pulling out (as
shown in image).
Install the two supplied “Christmas tree” fasteners into
same holes that held the two plastic pins. Install top
radiator shroud ensuring it engages fan shroud in the
center as shown. Tuck water hose back into holders on
shroud, secure with four bolts previously removed.
