Page 1.
Parts List
LPE TBRC-001 Temperature Based Ralay Controller Kit (PN: L460220000)
# Description Part number
1 TBRC-001 Temperature Based Relay Controller TBRC-001
1 TBRC-001 pigtail harness, 36” XX04851-0003
2 Self tapping screws AV16037
2 Hook and loop tape, per inch 06483
6 Instructions N/A
Tools & Materials Required
Optional Items
• Phillips head screwdriver
• Wire crimping tool
Description Part number
Two speed dual fan control harness with relays XX05636-0002
LPE technician’s screwdriver L950050000
LPE sealed 40 amp relay kit L450100000
STOV-002 MPH activated switch (for turning off fans based on VSS) L460050000
Red 7 LED warning light, 10 ft two wire cable RP-WLRBLK001
RED LED, 12 VDC, 30 cm wire L450030000
GREEN LED, 12 VDC, 30 cm wire L450040000
RED 10mm LED with chrome holder L450120000
Sensors and mating connectors See table 4 on page 9.
Specifications:
• Works with OEM and aftermarket IAT, ECT, EGT, TFT sensors, including:
• GM IAT (12160244/12614717)
• ECT (12608814/12636612)
• TFT (12458118)
• Oil temperature sensors (15326388)
• Works with AEM 30-2012 and other similar fluid temperature sensors
• Works with OEM and aftermarket EGT sensors, including:
• AEM 20-3050
• GM 12636612
• AC Delco 213-4695
• Bosch PT 200E
• Sensata TS200–A
• Built-in Output Cycling Mode.
• Used in applications where the temperature sensor is installed in-line with the device.
• 16 timer settings available.
• Reduces the noise created by auxilary cooling system
components (fans, pumps, etc...) while increasing their life due
to the fact that the components are not in constant operation.
• Custom molded high temperature glass filled Nylon 6 enclosure.
• Fully encapsulated (potted) construction for increased durability.
• Both outputs can be used simutaneously
• Outputs have a self protect feature and will turn OFF in case of
a direct short or over current condition.
• Operating voltage range: 9.0 to 18.0 volts.
• Input signal impedance: 100k ohms.
• Outputs rated for up to 0.75 amps each.
• Current draw: 0.1 amp plus current draw of device being
controlled (when active).
• Internal pull-up resistor value: 2.2 k ohms.
• 90 day warranty (from date of purchase).

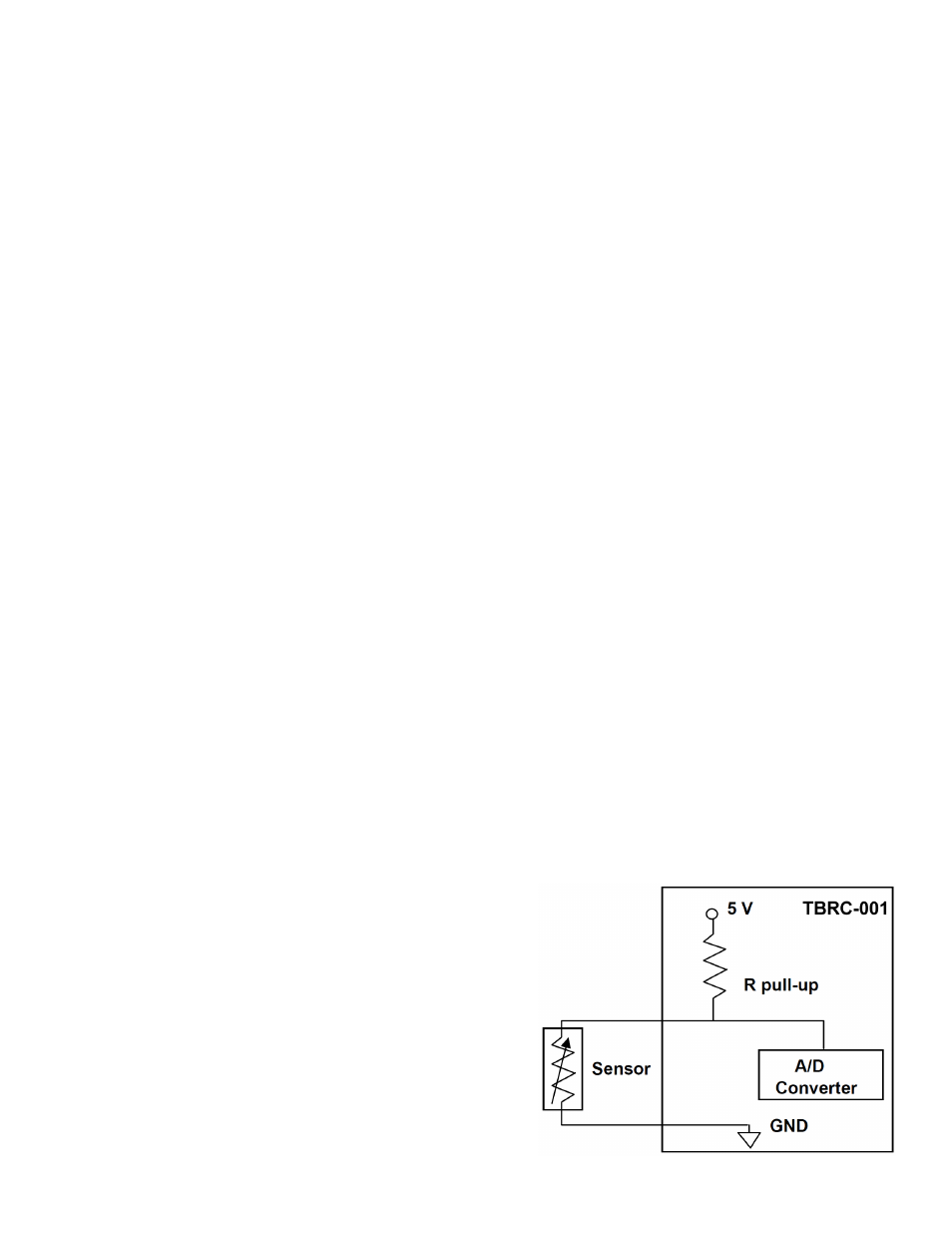

Figure 1: Sensor circuit with TBRC-001’s
internal pull-up resistor.
