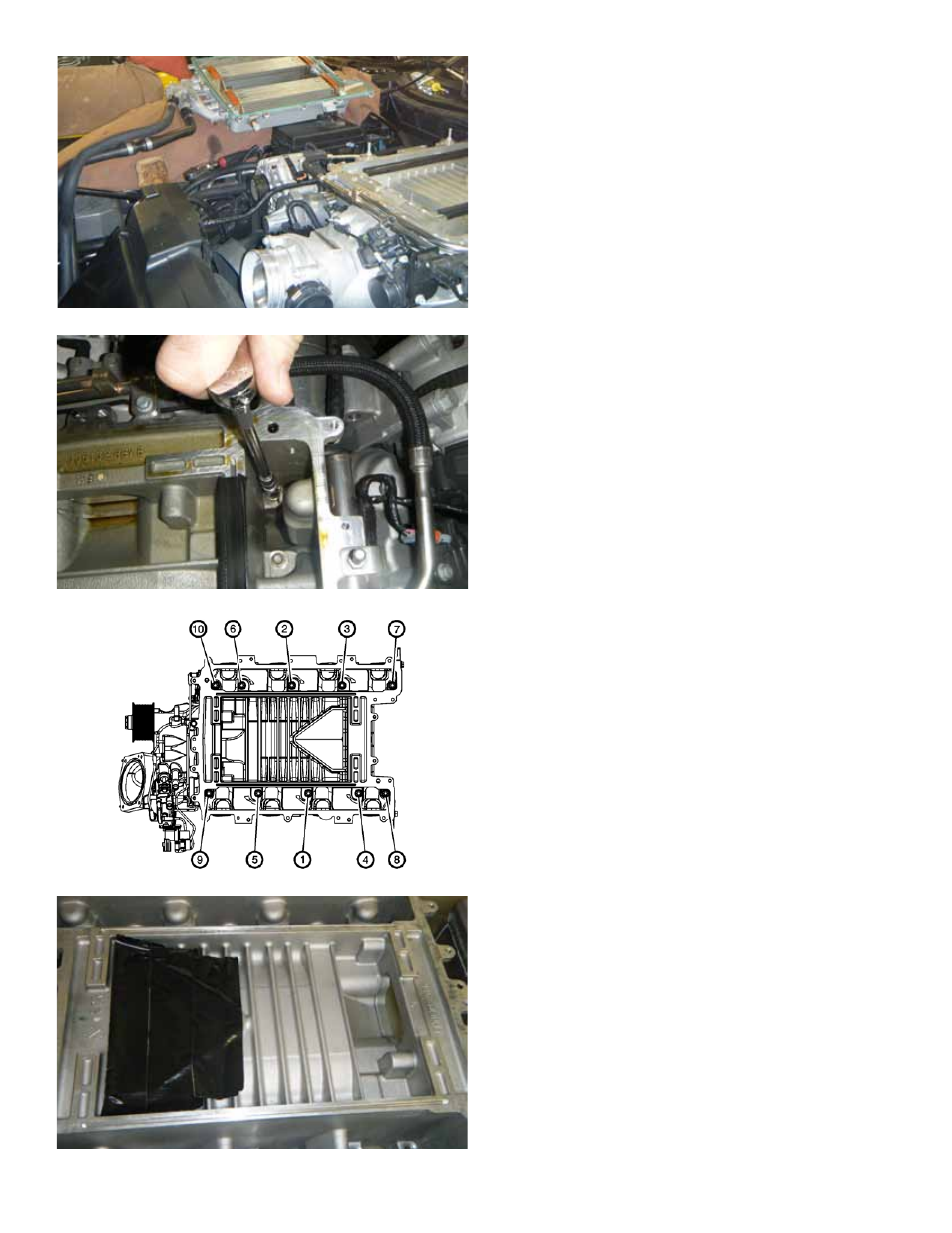

99. Tighten the bolts a first pass in sequence
to 5 Nm (44 lb-in).
Tighten the bolts a final pass in sequence to 10
Nm (89 lb-in).
100. Remove the tape or other covering
material from the supercharger housing.
27.
98. Torque down the ten (10) supercharger
bolts, refer to the next step for the torque
pattern and specifications.
97. With the help of an assistant, place the
supercharger assembly back in place on the
engine. Align the dowel pin at the right front of
the supercharger to the cylinder head.
WARNING: Do not lift from by-pass actuator.
