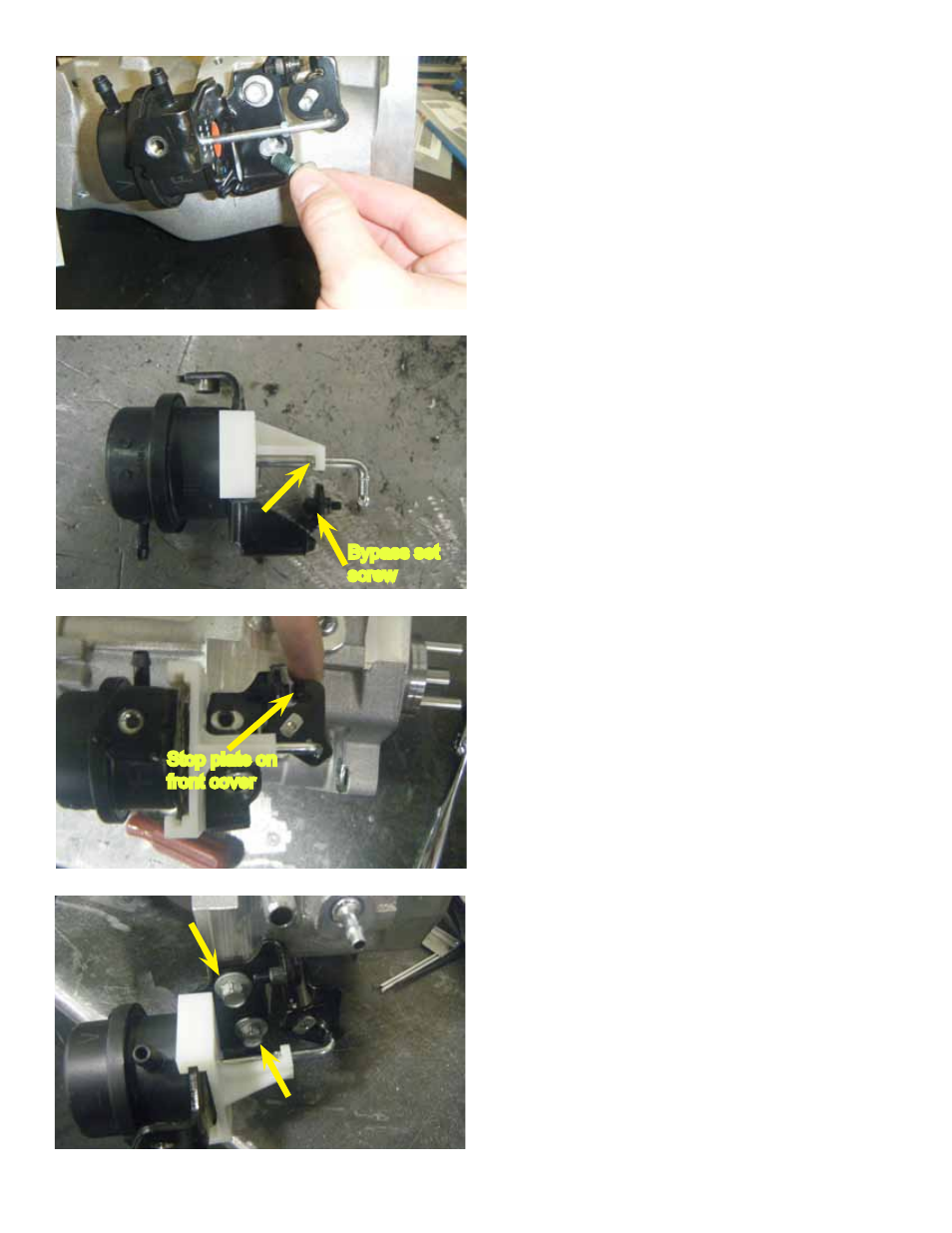

81. Using a 10 mm socket, torque the two (2)
bypass actuator bolts to 18 lb-ft (25 Nm). If
your front cover has been hand ported by LPE
or someone else, the lower bolt hole may now
be open to the inside of the cover and require
thread sealant ( Loctite 567 thread sealant or
equivalent) on the actuator bolts.
82. Use the set tool to set the actuator position
[tool part # ETN86063]. Place the actuator set
tool so that the actuator arm teeth are located in
the position shown. Note the bypass set screw
position.
NOTE: The front cover and bypass actuator
are shown off of the vehicle for illustrative
purposes only.
23.
Stop plate on
front cover
Bypass set
screw
83. Hold the bypass stop plate back so that
the bypass valve blade is in the closed position.
The stop plate should not be touching the set
screw on the bypass actuator. The set screw
can be adjusted using a 3/32” Allen wrench.
84. Install the two (2) 10 mm bolts and torque
them to 21 lb-ft (28.5 Nm).
