LG Motorsports LG Mono Ball Control Arm User Manual
Page 6
Once the arm is heated completely around, you can start to drop in your cooled housing
into the arm. You may find it easier to use a bolt through the bearing to use as a holder to
guide the insert into place.

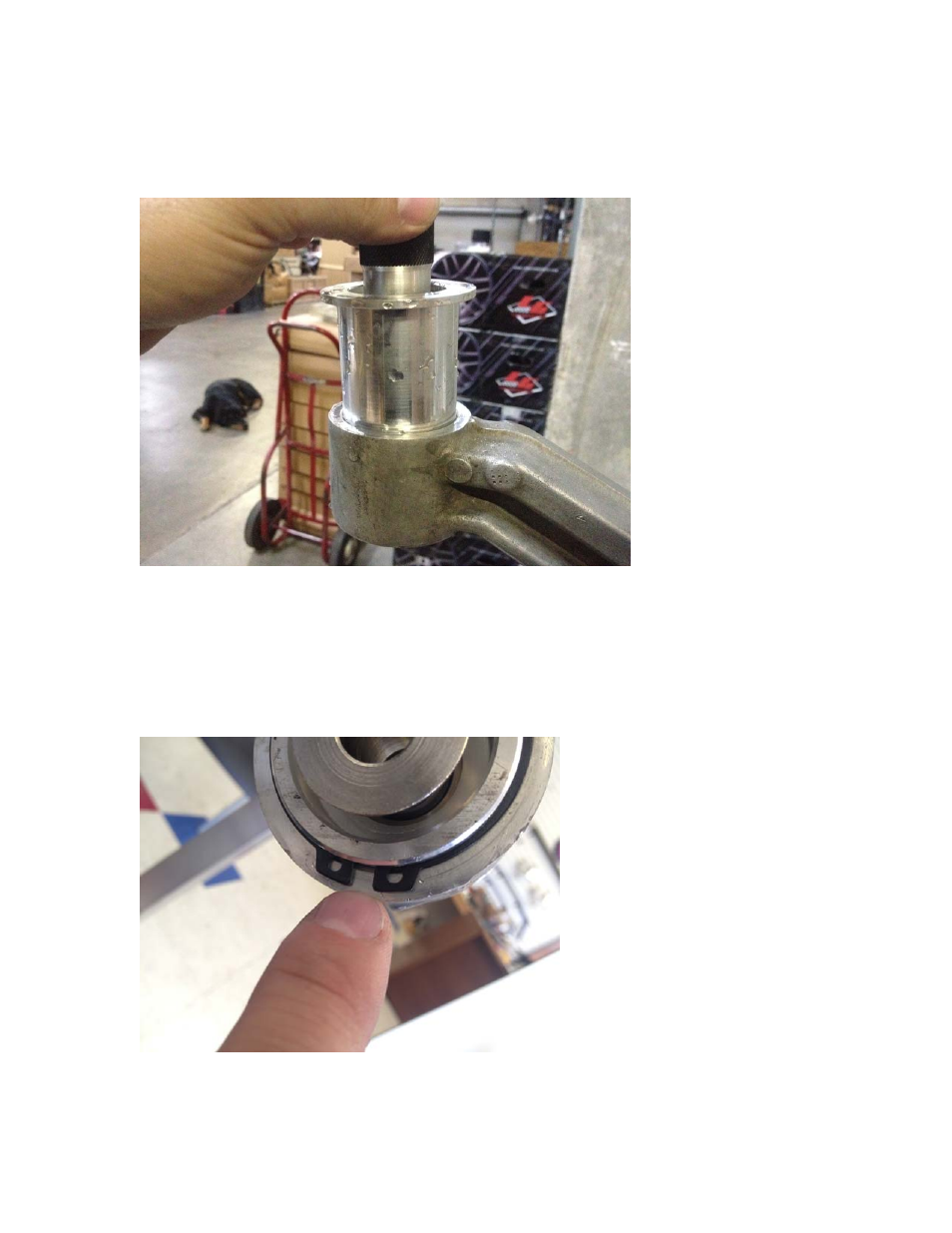

Figure 7: Installing into control arm.
If it does not feel like it will start, continue to heat the arm more. Install should be
smooth but close. Once the housing is in place, cool with water to remove the risk of
damage to the bearing. Now you can safely install the retaining safety C-Clip. After the
Figure 8: External C clip installed
