the opening so the bearing housing will drop into place. All inserts will install in the
arms from the outside going inboard, except for the front lower control arms. These will
install from the inside moving outward (see completed photos below).
The front lower control arm bearing locations can vary in size. Before starting the install
of the inserts on these locations make sure that the housing will protrude far enough to
locate the c-clip. If not remove material on the outside end until you have enough room
to secure the clip, see figures 3 and 4.

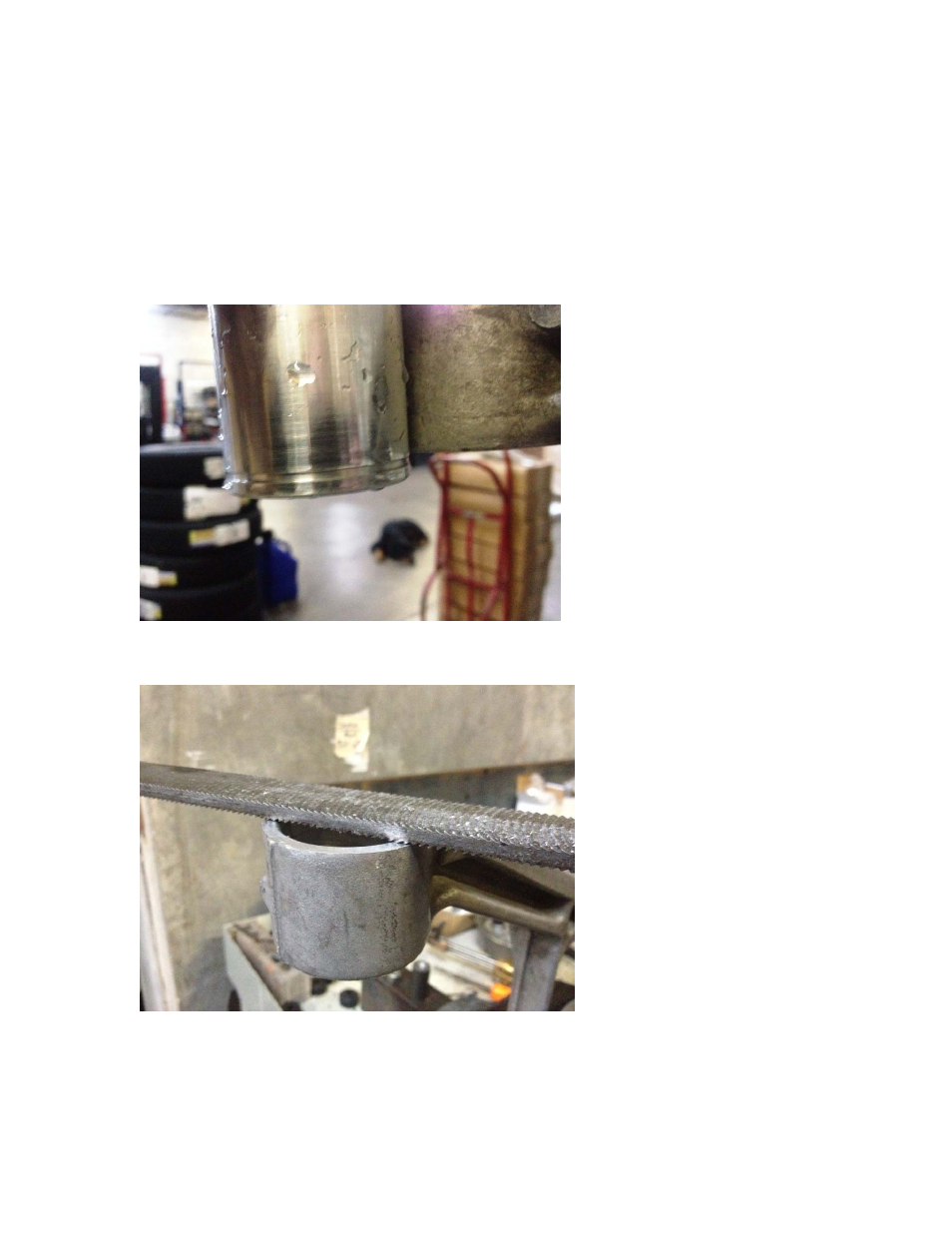

Figure 4: Checking for C-clip clearance
Figure 4: Removing material on flange end.
Once your inserts have been frozen, it maybe easier to bring them out a few at a time and
keep in an ice bath to stay cool while you are working.
