1. SYSTEM OVERVIEW
ALPHA C-25 Manual V2.1.doc Page 4

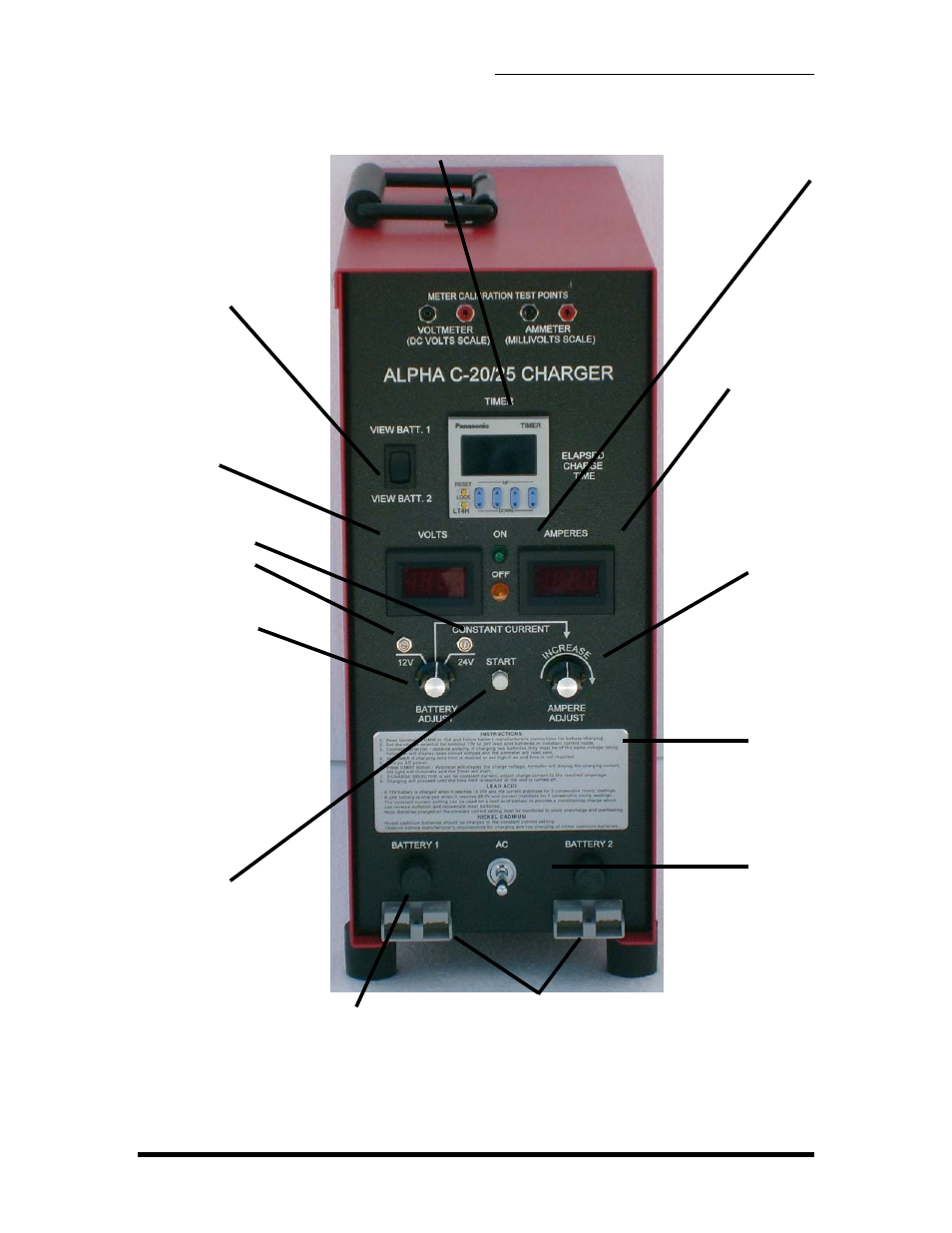

Figure 1–1. Front view of Alpha C-25
DIGITAL CHARGE TIMER
Displays elapsed charge time.
Can be set to fixed duration
charge times
DIGITAL
VOLTMETER
Displays battery
voltage during
charge
CHARGE MODE
SELECT KNOB
Selects constant current
or constant potential
mode for 12 or 24 volt
batteries
DIGITAL AMMETER
Displays charge
current
INSTRUCTION
PANEL
AMPERE
ADJUST KNOB
Sets current
charge
ON/OFF LAMPS
Illuminate to indicate if
unit is charging (on) or
not (off)
BATTERY VIEW
SWITCH
Switches between
displaying current
and voltage for
battery one or
battery two
AC ON/OFF
SWITCH
Turns unit on
or off
DC LINE FUSE
Fuse protecting
DC line
START
BUTTON
Pressed to
start charge
DC LINE CONNECTORS
Connects for DC cable
leading to battery
VOLTAGE
ADJUST
Trims output
voltage
