5. CALIBRATION AND MAINTENANCE
BETA D-50
BATTERY
R SHUNT
AMMETER
mV
EXTERNAL CALIBRATED
MILLIVOLTMETER
TEST
PORTS

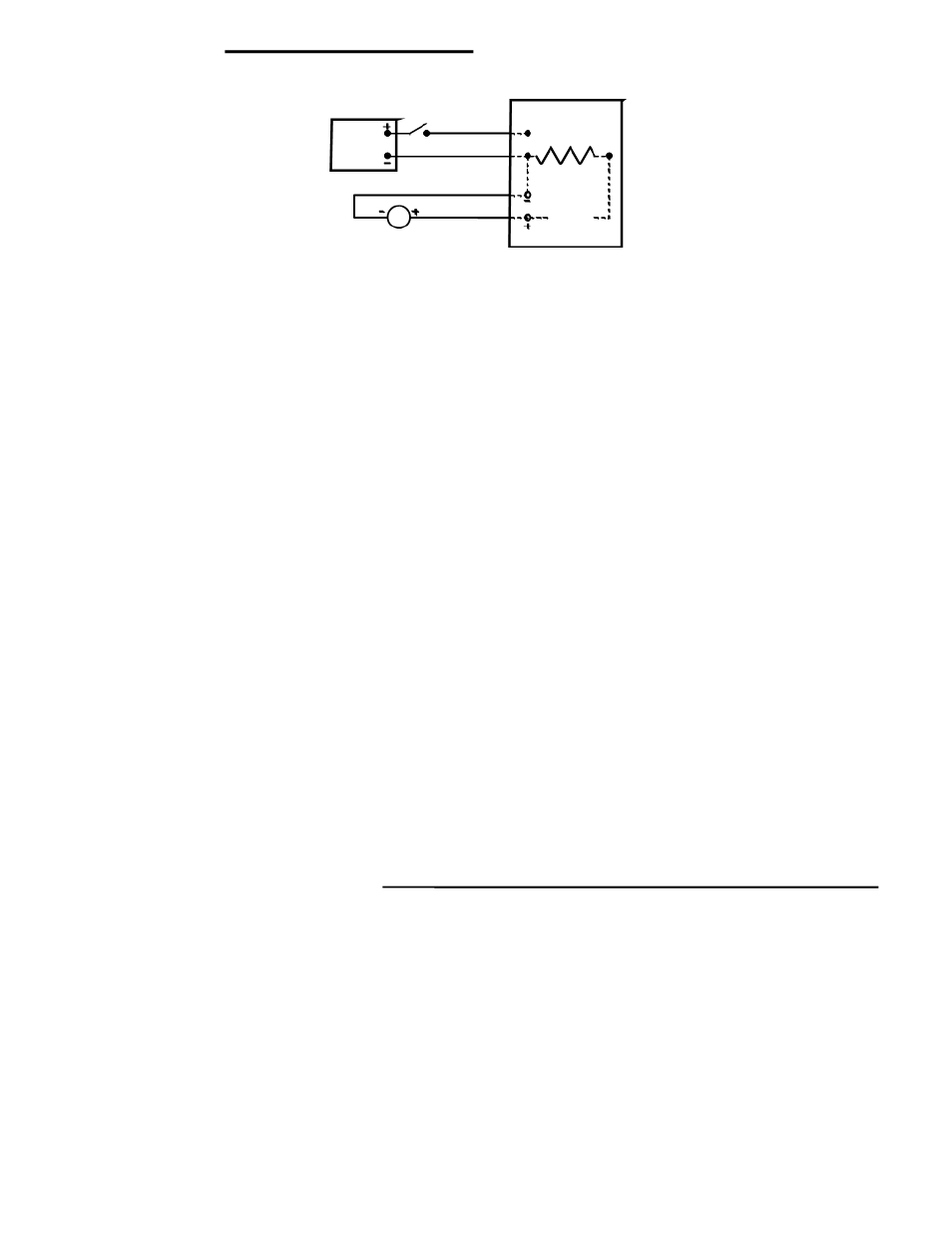

Figure 5-2 Circuit diagram for ammeter calibration
A.
SWITCH OFF MAINS POWER
Turn off the AC on-off/reset power switch.
B.
TURN DOWN DISCHARGE CUR-
RENT
Repeatedly turn the Current Adjust knob fully counter-clockwise to set discharge
current to zero.
C.
CONNECT BATTERY
Connect the battery DC cable to the battery and ensure the connector is plugged
in completely.
