Appendix C: Freeze Dryer Specifications
Product Service 816-333-8811 or 1-800-522-7658 54
Lyph-Lock  Flasks
*Valves on the freeze dry system, drying chambers and manifolds offered in this catalog fit adapters of
both ½" and ¾" sizes. Size information is provided for selecting adapters for older Labconco models
and other freeze dryers.
Adapters
Add the adapters for connecting the
Lyph-Lock Flasks to the valve ports on
your drying chamber or manifold.
90° Bend
Adapter
Description
7568000
Connects 19/38 STj Flask Top to ½"
valve*
7568200
Connects 19/38 STj Flask Top to
3/4"valve*
7568400
Connects 24/40 STj Flask Top to ½"
valve*
7568600
Connects 24/40 STj Flask Top to 3/4"
valve*
Flask Size
Complete
Flask
19/38 STj
Complete
Flask
24/40 STj
Flask Top
19/38 STj
Flask Top
24/40 STj
Lyph-Lock
Seal
Flask
Bottom
Dimensions/
Flask Bottom
H x ID
25 ml 7550000 7550000 7552000 7556000 7559000 7557000 37mm x 34mm
50 ml 7550200 7554200 7552000 7556000 7559000 7557200 67mm x 34mm
100 ml 7550400 7554400 7552200 7556200 7559200 7557400 50mm x 59.2mm
250 ml 7550600 7554600 7552200 7556200 7559200 7557600 110mm x 59.2mm
500 ml 7550800 7554800 7552400 7556400 7559400 7557800 103mm x 90.2mm
750 ml 7550900 7554900 7552400 7556400 7559400 7557900 145mm x 90.2mm
1000 ml 7551000 7555000 7552400 7556400 7559400 7558000 187mm x 90.2mm

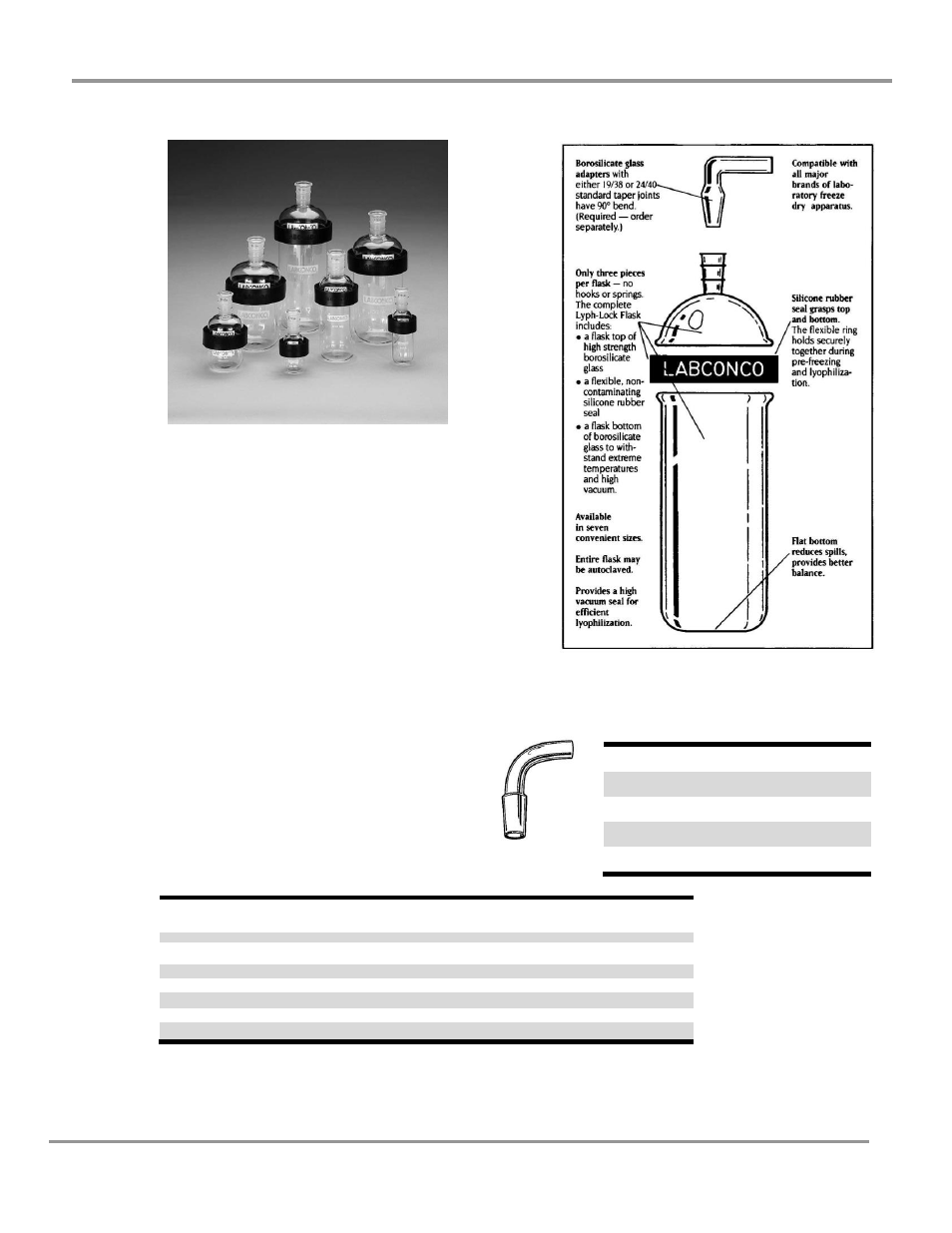

Lyph-Lock Flasks simplify your
Lyophilization procedures because they
have only three pieces per flask – a high
strength borosilicate glass top and
bottom with a silicone rubber ring seal.
The unique wide-mouth design helps you
load samples easily and lyophilize
efficiently.
How to select Lyph-Lock Flasks for
your Freeze Dry System
Select Lyph-Lock Flasks fast- based on
your sample sizes. Flasks should be filled
no more than one-third of their volume so
that maximum surface area is achieved
and efficient lyophilization is assured. A
complete Lyph-Lock Flask includes a
glass top and bottom and a rubber ring
seal. Tops, bottoms and seals are
available separately as replacement
components. Adapters are required to
attach flasks to freeze dry valve ports.
