13. Quick Start Tutorial
D SERIES Tesira Quick Start Guide rev 1.2.0
17
CAFÉ software
1. Download the latest CAFÉ software from www.labgruppen.com
2. Execute the installer and follow the on-screen instructions. This is a typical software installation where the
default settings are acceptable for the vast majority of users.
13.2. Network setup
Network connections/topology

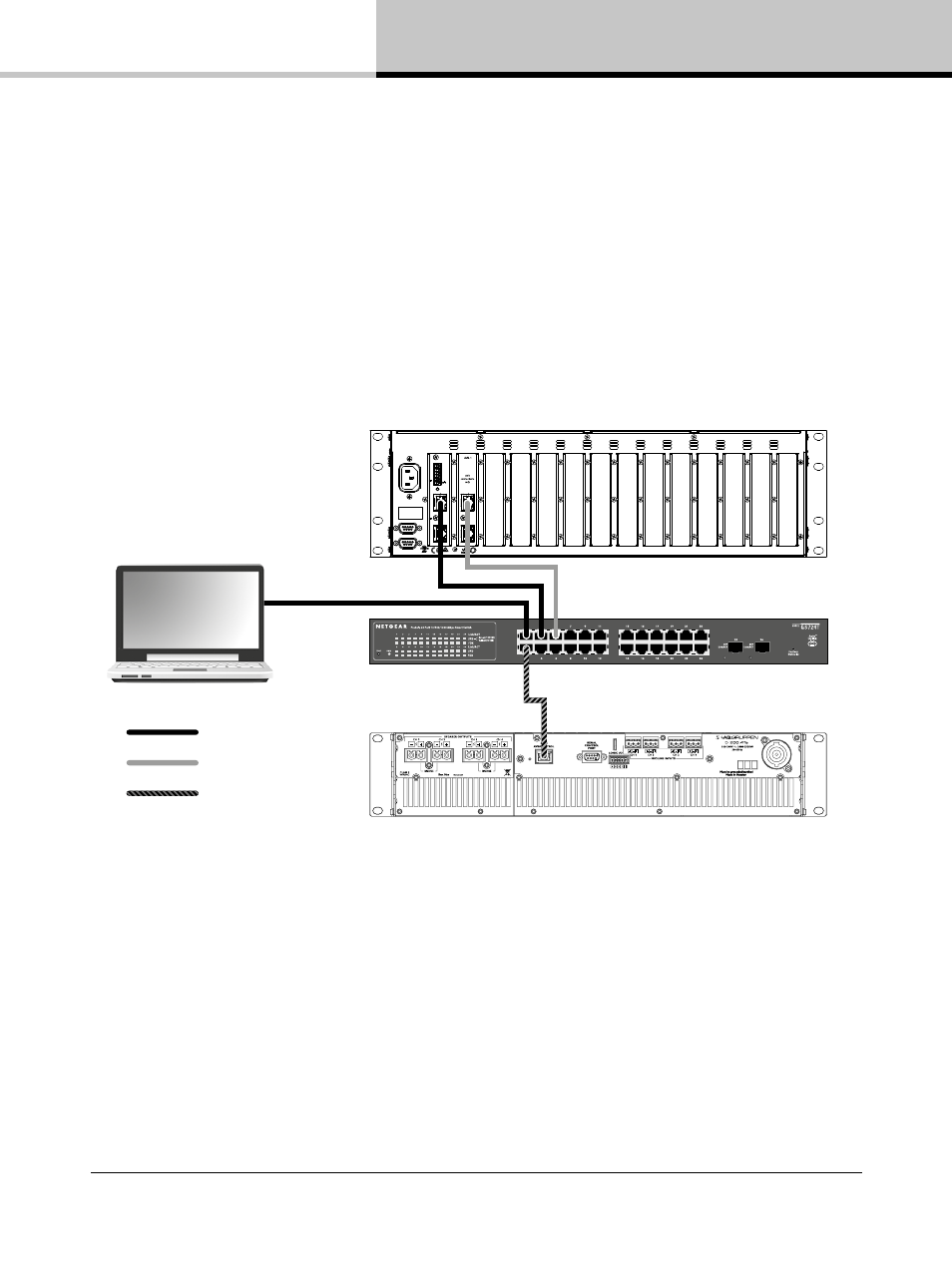

The following diagram shows a typical setup with Tesira software running on a PC. A Tesira server has separate
network ports for control and AVB but D Series has these combined into one port.
Network configuration
Tesira devices are configured by default to obtain IP addresses automatically. The Tesira device will receive an
IP address automatically from a DHCP server (if present) or assign itself an IP address in the Link local range
(169.254.1.0 through 169.254.254.255). If a computer is configured the same way (which should be default on
modern operating systems), it will reside in the same subnet as the devices and communication can be established.
Control
Control/AVB
S/N
1 2 3
4 +5V
SNC-1
Secondary
Logic I/O
Primary
Secondary
Primary
1 2 3 4 5 6 7 8 9 10 11 12 13 14
100 - 240V~ 50/60Hz 5.5 - 2.3A
BIAMP SYSTEMS
SERVER-IO
10
N24138 4HW3 N24138
Serial 1
Serial 2
GREEN connectors = INPUTS ORANGE connectors = AEC INPUTS BLUE connectors = ANC INPUTS BLACK connectors = OUTPUTS
assembled in the USA www.biamp.com
US: 6RMBR00BSTC-2, Complies with FCC Part 68
IC: 3184A-STC2
AVB
