11. Product overview
14
D SERIES Tesira Quick Start Guide rev 1.2.0

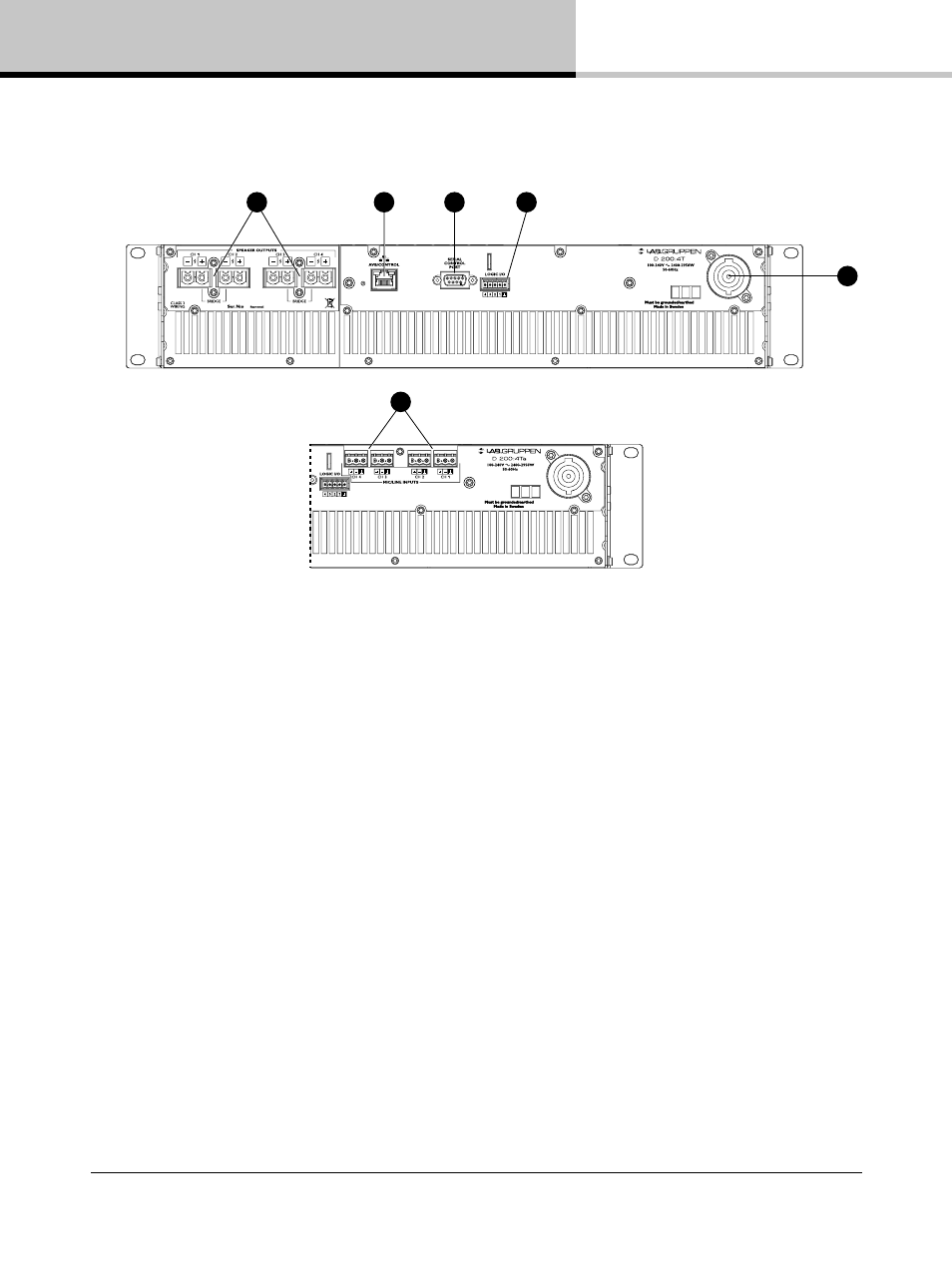

11.2. Rear panel
1 Amplifier Outputs - The amplifier output connectors are sturdy terminal block connectors. See Technical
Specifications (pages 23-24) for connector rating. Channels are located from left to right. Each channel has a
clearly marked hot (+) and cold (-) terminal.
2 RJ-45 Ethernet connector for control and Ethernet AVB digital audio network
3 Serial control port on a DB-9 for integration control
4 Terminal block connector for Logis I/O (4 pins of GPIO and a ground)
5 Analog inputs on Tesira Analog version. The analog inputs are available on terminal block connectors with
clearly marked hot (+), cold (-) and ground terminals. The analog inputs can either be used as local inputs to a
Tesira AVB system or as analog failover in case the AVB audio network is interrupted.
6 Mains connector - Detachable Neutrik powerCON. See data sheet for connector rating
1 2 3 4
6
5
ANALOG OPTION
