Connections and Operation:
Before installation, please make sure all devices you wish to connect have been turned
off.
• Connect a mouse, keyboard and monitor into the transmitter.
• Connect a computer into the output KVM of the transmitter.
• Connect a mouse, keyboard and monitor into the receiver.
• Connect the network cable between the transmitter and receiver.
• Insert the DC side of 5V power supply into the transmitter and receiver and then connect
the AC side of the power supplies into the wall outlets.

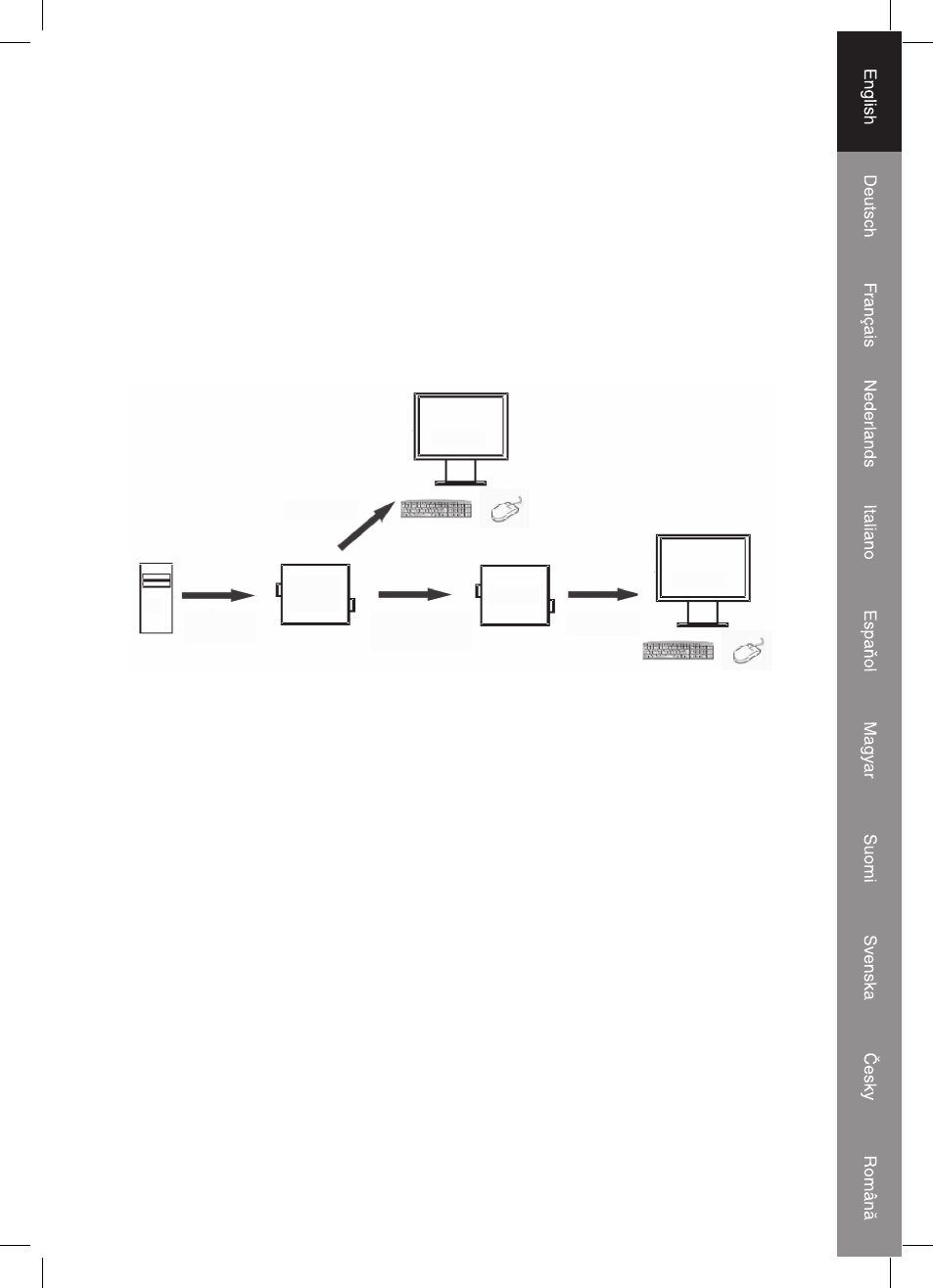

Monitor
KVM cable
PC
Transmitter
KVM cable
enclosed
UTP/FTP
cable up to
150m
KVM cable
Receiver
Monitor
Into Hot-Key Mode:
Hit three times in a row and then press Spacebar to enter the Hot-Key mode.
Buzzer on or off:
Under the Hot-Key mode, Hit R twice in 3 seconds to switch the buzzer on or off.
