Konig Electronic WLAN router 300 Mbps User Manual

Page 24

Text mode
Original mode

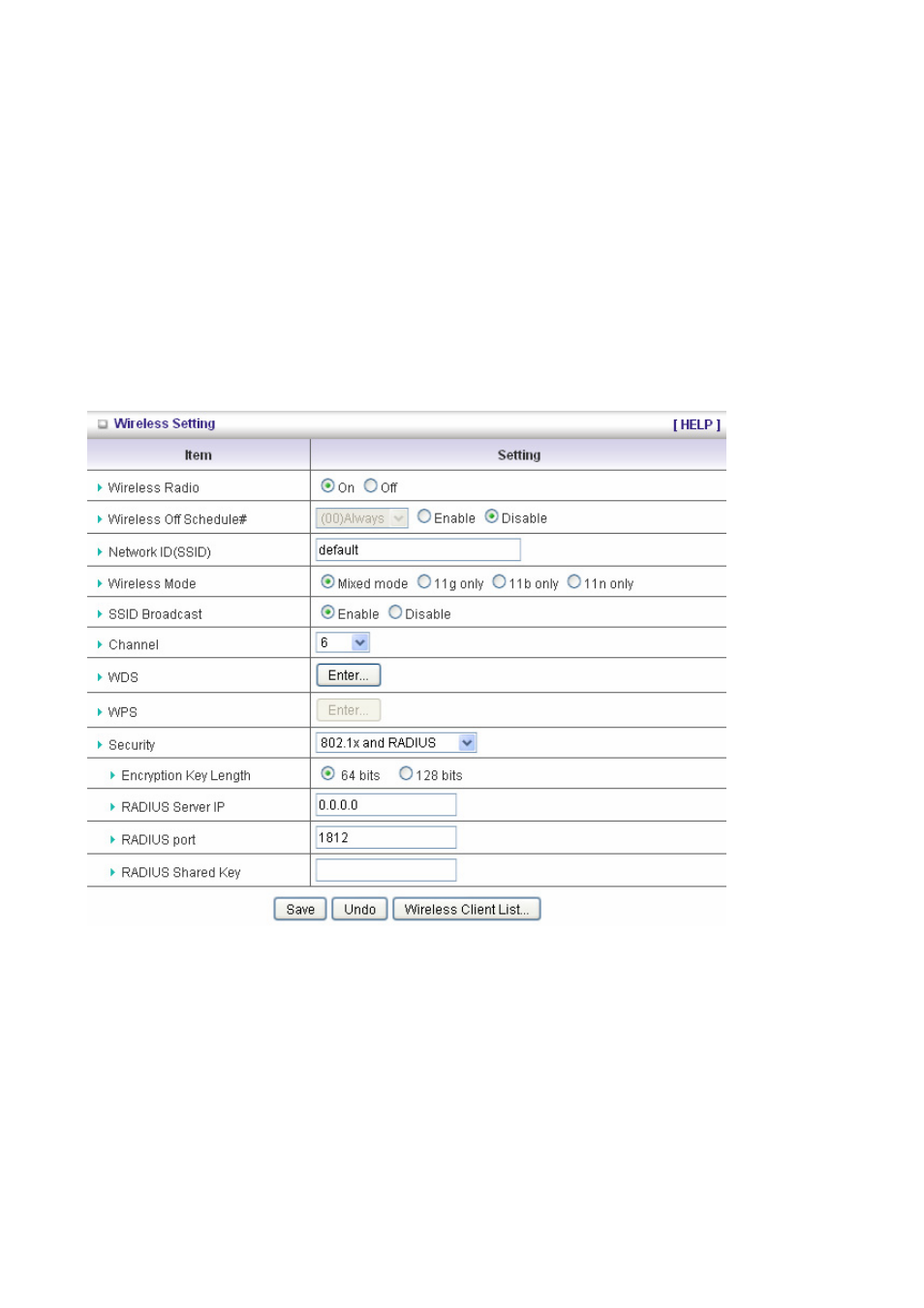

There are several security types to use:

WEP :
When you enable the 128 or 64 bit WEP key security, please select one WEP key to be used and input 26 or
10 hexadecimal (0, 1, 2…8, 9, A, B…F) digits.

802.1X
Check Box was used to switch the function of the 802.1X. When the 802.1X function is enabled, the Wireless
user must authenticate to this router first to use the Network service.
RADIUS Server

IP address or the 802.1X server’s domain-name.
RADIUS Shared Key

Key value shared by the RADIUS server and this router. This key value is consistent with the key value in the
RADIUS server.

A-PSK

1. Select Encryption and Pre-share Key Mode

If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits

If ASCII, the length of pre-share key is from 8 to 63.

2. Fill in the key, Ex 12345678
