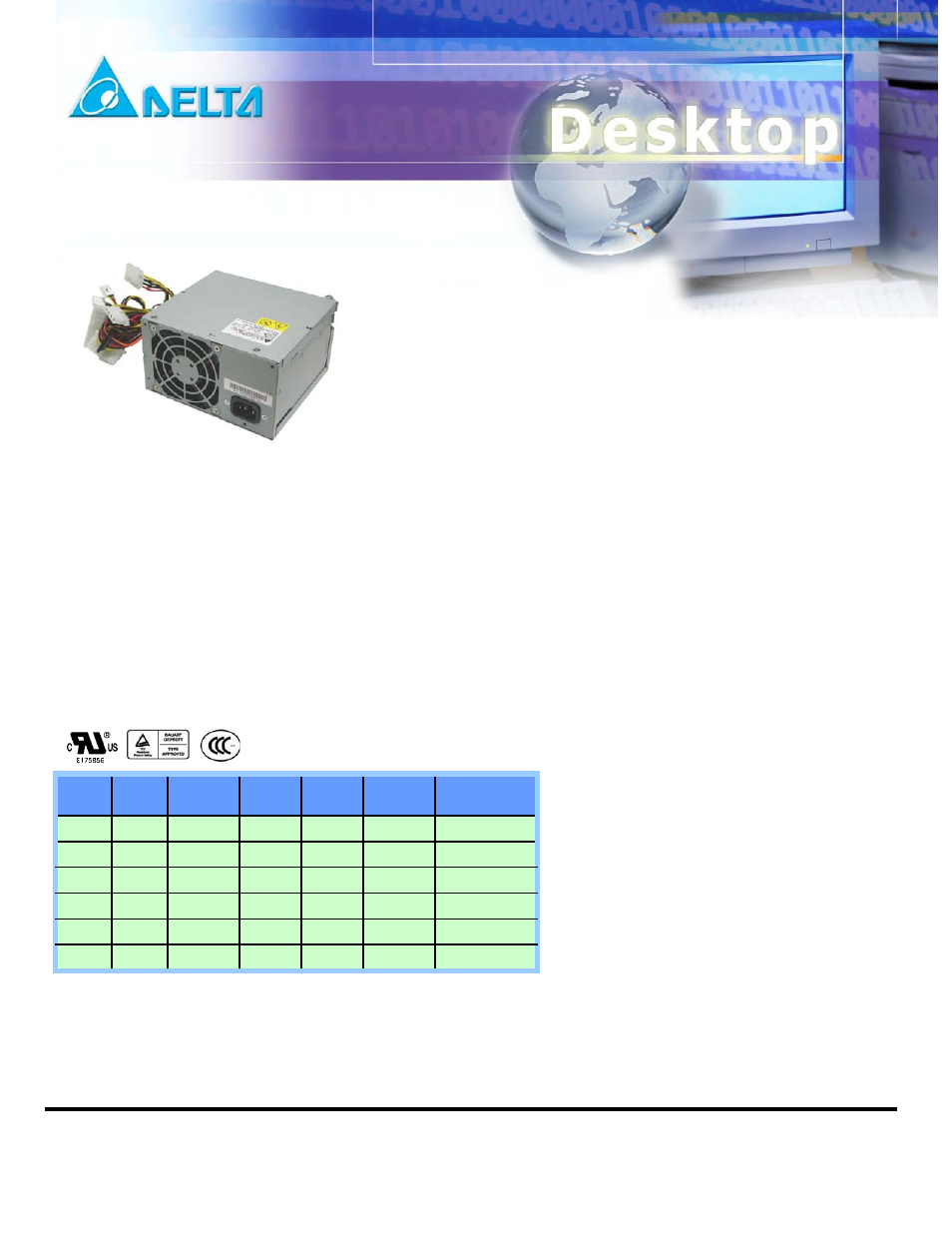

Delta Electronics DPS-350TB series - Manual

DELTA ELECTRONICS, INC.
3, TUNG YUAN ROAD, CHUNGLI
INDUSTRIAL ZONE
TAOYUAN SHIEH, TAIWAN, R.O.C.
TEL: 886-3-4526107
FAX: 886-3-4527314
mail: [email protected] DELTA PRODUCTS CORPORATION
4405 CUSHING PARKWAY
FREMONT, CA 94538, U.S.A.
TEL: 1-510-668-5100
FAX: 1-510-668-0680 DELTA ELECTRONICS(JAPAN) INC.
DELTA SHIBADAIMON BLDG.
2-1-14 SHIBADAIMON, MINATO-KU,
TOKYO, 105-0012, JAPAN
TEL: 81-3-5733-1111
FAX: 81-3-5733-1211 DELTA ELECTRONICS, EUROPE LTD.
2 YOUNG PLACE
KELVIN INDUSTRIAL ESTATE
EAST KILBROIDE, GLASGOW G75 OTD,
U.K.
TEL: 44-1355-588888
FAX: 44-1355-588889
All specifications are subject to change without prior notice.
ELECTRICAL SPECIFICATIONS
INPUT
• Input Range 90~135Vac/ 180~265Vac
• Frequency 47~63Hz
• Input Current <8A @ 115Vac, <4A @ 230Vac
• Efficiency >65% @ 115/230Vac
• EMI/RFI CISPR 22 Class B
OUTPUT
• Maximum Power 350 Watts
• Holdup Time >10mS @ 115/230Vac
• Rise Time 1~25mS
• Leakage Current <0.25mA @ 100Vac
• Overvoltage Protection: +3.3V, +5V, +12V, +12V
CPU
, -
12V
• Overcurrent Protection: < 240VA
• Short-Circuit Protection: Latch off
• Power Good Signal: TTL compatible on delay 100mS
to 500mS, off delay 1mS.
DPS-350TB
Series
200mV - 14.0A 1.0A ±5% +12V
CPU
V4
150mV 2.5A 2.0A 0.0A ±5% +5Vsb V6
200mV - 0.5A 0.0A ±10% -12V V5
200mV - 11.0A 1.0A ±5% +12V V3
100mV - 21.0A 1.0A ±5% +5V V2
80mV - 22.0A 0.5A ±5% +3.3V V1
Ripple & Noise
Vp-p
Peak Load
Maximum
Load
Minimum
Load
Regulation Voltage Output
1. Total continue power output: 350W
2. The combined power on +3.3V & +5V: 130W max
FEATURES
• Application: Desktop PC
• 80mm fan
• Comply with Intel ATX12V 2.0
• Remote On/Off
• Low acoustics noise
• High reliability
• Fan speed control
• Short circuit protection
• Over voltage protection
• Over current protection
• Active PFC
ENVIRONMENTAL
• Operating ambient temperature: 10~50 ºC
• Operating relative humidity: 5~95%
• Storage ambient temperature: -40~70ºC
• Storage relative humidity: 5~95%
• Altitude: 10,000~50,000 feet
• MTBF: > 100K hours @ max. load & 25ºC
ambient conditions.
150 (W) x 86 (H) x 140 (L) mm
