Appendix

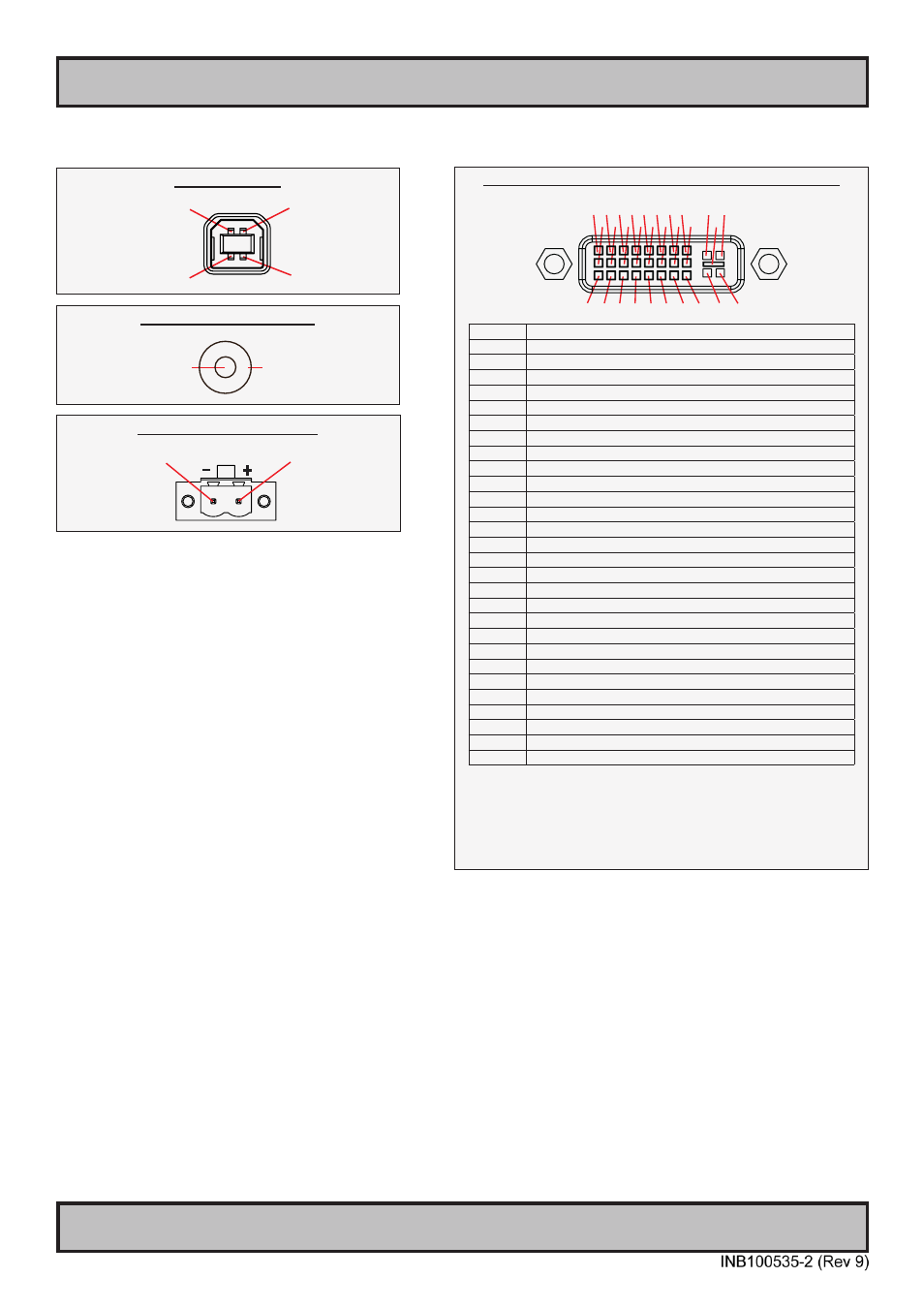

Pinout Assignments
2 pin DC Power Input, Phoenix
Pin 2: Negative - Pin 1: Positive +
All pin out assignments are seen from users Point of View (POV) while looking straight at the connector.
1 pin RCA/BNC COMP. VIDEO
Ground Shield Pin 1: Video Signal
4 pin USB TYPE B
Pin 2: Negative Data
Pin 3: Positive Data Pin 4: Ground
Pin 1: VCC +5V
18/24/24+5 pin DVI-D, DVI-I, Single Link, Dual Link Combined
1 2 3 4 5 6 7 8 C1 C2
9 10 11 12 13 14 15 16 C5
17 18 19 20 21 22 23 24 C3 C4
PIN 01 T.M.D.S. Data2 - (Digital - RED link 1)
PIN 02 T.M.D.S. Data2 + (Digital + RED link 1)
PIN 03 T.M.D.S. Data2/4 Shield
PIN 04 T.M.D.S. Data4 - (Digital - GREEN link 2)
PIN 05 T.M.D.S. Data4 + (Digital + GREEN link 2)
PIN 06 DDC Clock
PIN 07 DDC Data
PIN 08 Analog Vertical Sync (DVI-I only)
PIN 09 T.M.D.S. Data1 - (Digital - GREEN link 1)
PIN 10 T.M.D.S. Data1 + (Digital + GREEN link 1)
PIN 11 T.M.D.S. Data1/3 Shield
PIN 12 T.M.D.S. Data3 - (Digital - BLUE link 2)
PIN 13 T.M.D.S. Data3 + (Digital + BLUE link 2)
PIN 14 +5V Power (for standby mode)
PIN 15 Ground (for +5V and analog sync)
PIN 16 Hot Plug Detect
PIN 17 T.M.D.S. Data0 - (Digital - BLUE link 1) and digital sync.
PIN 18 T.M.D.S. Data0 + (Digital + BLUE link 1) and digital sync.
PIN 19 T.M.D.S. Data0/5 Shield
PIN 20 T.M.D.S. Data5 - (Digital - RED link 2)
PIN 21 T.M.D.S. Data5 + (Digital - RED link 2)
PIN 22 T.M.D.S. Clock Shield
PIN 23 T.M.D.S. Clock + (Digital clock + (Links 1 and 2)
PIN 24 T.M.D.S. Clock - (Digital clock - (Links 1 and 2)
PIN C1 Analog RED
PIN C2 Analog GREEN
PIN C3 Analog BLUE
PIN C4 Analog Horizontal Sync.
PIN C5 Analog Ground (return for RGB signals)
DDC = Display Data Channel.
.M.D.S = Transition Minimized Differential Signal
PIN C1,C2,C3,C4 = Only present on DVI-I connectors.
NOTE: Connector shows a DUAL LINK design, but some units may not support it.
Only units with 1920x1200 or more in resolution require / support DUAL LINK.
