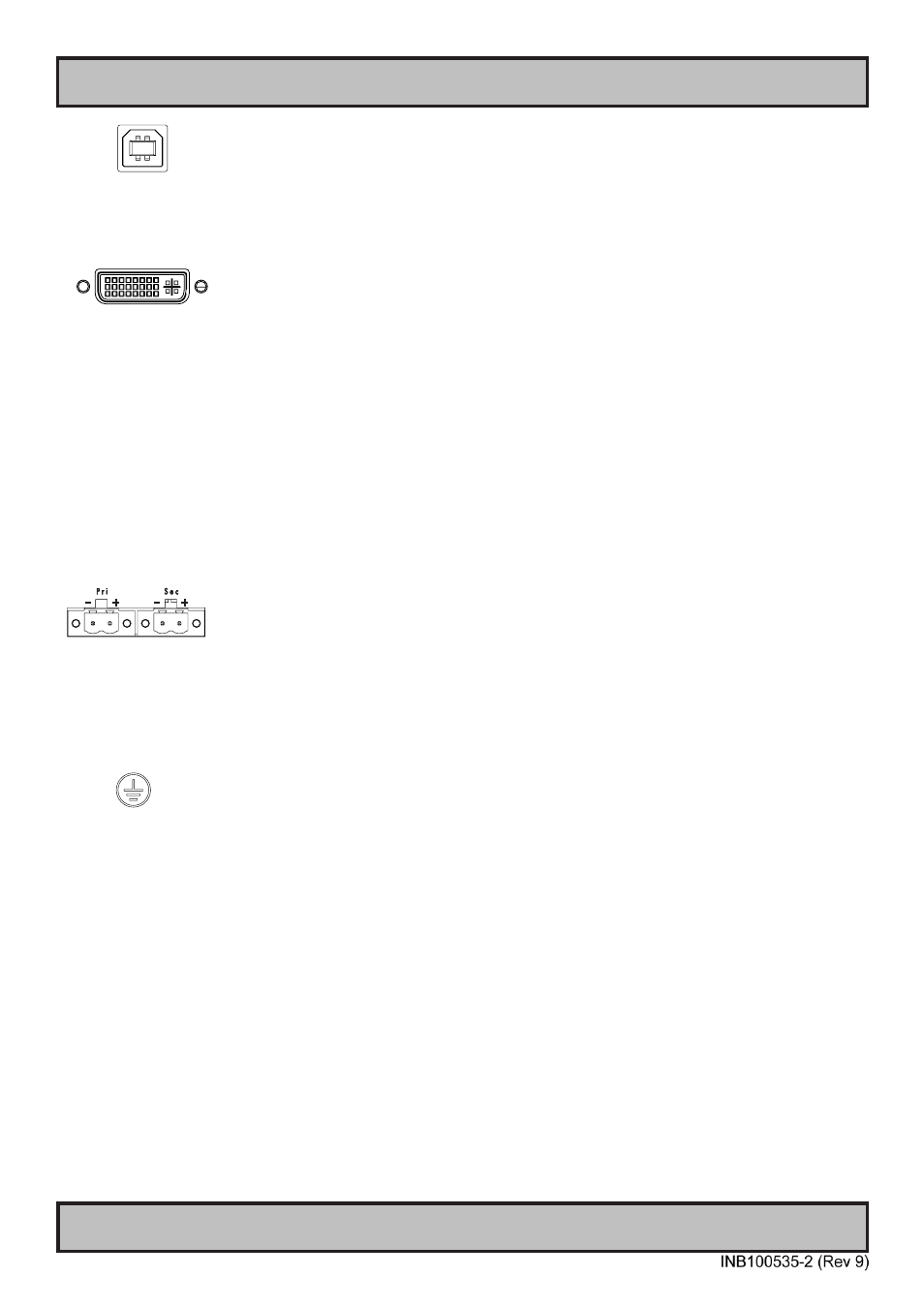

Physical Connections
25
IND100133-50
USB TOUCH:
Connect a TYPE B USB Cable between this connector and your PC. Suitable drivers to install and calibrate the
touchscreen are available on the separate installation media delivered with the unit. Port is USB2.0 (<5m).
DVI-I IN:
Connect your DVI cable to the DVI-I 29P Connector (female). The DVI-I connector can function as regular RGB IN by
using a DVI-I > RGB/VGA adapter. Secure the DVI cable to the hex spacers provided on the unit and make sure you
do not bend any of the pins inside the connector. Connect the other end of the cable to the DVI connector on your
equipment and secure it.
Important note for DVI signal detection:
Please note that for the operating system to detect DVI signals correctly, the DVI cable MUST be connected physically
to the unit during boot up otherwise you may experience a black image. Furthermore certain graphics drivers may
need to refresh their device list (often done manually by user - detect devices), while in some cases the Plug-n-Play
will automatically detect the DVI signal correctly. Please consult your local technician if you have this behaviour of
detection problems when using DVI. In all cases the problem can be solved in the operating system, and this is not a
malfunction in the graphic controller for display units.
POWER INPUTS:
Connect your DC power cables to the 2-pin Terminal Block 5.08 connector. The internal DC power module supports
24VDC. The unit offer both Primary and Secondary power inputs for secure operation of the unit as well as; galvanic
isolated and automatic switch between power source. For more information, please review “Housing / Terminal Block
Connector Overview” and “Pinout Assignments” sections in this manual.
GROUNDING SCREW:
Please review “General Installation Chapter”, pt. 7 for more information.
