12
IND100077-121
General
Product Labeling
Warranty Label
If you are to perform service on a unit still under warranty, any warranty will be void if this label show signs of removal
attempts (re-gluing) or removed completely. This label is located on the back of the product and covers a key screw.
This is to aid service departments to determine if there has been any unauthorized service on a unit still under
warranty.
Quality Control (QC) Label
This label indicates that the unit is produced, tested and packed according to manufacturer’s QA specifications. It will
include a Personal ID and signature by the personnell responsible for approving the unit in production, test and
warehouse departments.
Series X Displays - Typenumber Overview
Page 1 of 2
IND100780-3 - Rev 06 - 02 Mar 2012
Hatteland Display AS, Åmsosen, N-5578 Nedre Vats, Norway
Tel: (+47) 4814 2200 - [email protected] - www.hatteland-display.com
This document explains the type number structure for the
Hatteland Display Series X Maritime Multi Display product range.
- Example standard typenumber:
HD 19T21 MMD-MA1-FAGA
- Example standard description:
19.0” MMD ACDC Black GDC Buzzer
= Locked elements for factory standards.
= Custom/options - Can be customized by customer.
TFT Panel Size in inches
Product Range ID
PCB Electronics
Revision ID
Abbreviation for Maritime
Multi, STandard or
reserved for customer
company name ID
Product Type ID for
Display / Standard
(customer) Range ID
H D 1 9 T 2 M M D - M
Power Input ID
A
Frame Color
or reserved
for customer
specifi c ID
1
Standard ID or
reserved for
customer specifi c ID
F -
Frame or
Mechanical
Design ID
A
Optical Enhancement ID
G
User Control
Functionality ID
A
Touch Screen
Technology ID
TFT Panel Generation
Revision ID
1
Series X Panel Computers - Typenumber Overview
Page 1 of 2
IND100780-4 - Rev 05 - 11 Jun 2013
Hatteland Display AS, Åmsosen, N-5578 Nedre Vats, Norway
Tel: (+47) 4814 2200 - [email protected] - www.hatteland-display.com
This document explains the type number structure for the
Hatteland Display Series X Maritime Multi Computer product range.
- Example standard typenumber
HD 19T21 MMC-M1A-AAAA
- Example standard description
19.0” MMC IntelGM45 C2D 2.26GHz 2GBRAM 8GBSSD-M OSNone ACDC Black GDC
= Locked elements for factory standards.
= Custom/options - Can be customized by customer.
TFT Panel Size ID in inches
Product Range ID
PCB Electronics
Revision ID
Abbreviations:
Maritime Multi = MM
ECDIS Calibrated = ME
ECDIS Small Solution=M1
or reserved for
customer name +
optinal ECDIS ID
Product Type ID
for Panel Computer
Range
H D 1 9 T 2 M C - M
Power Input ID
1
Storage Technology
and Storage Size ID
A
Chipset/Motherboard,
CPU Speed/Type and
Memory Size ID
A -
TFT Technology, Optical
Enhancement and Touch
Screen ID
A
Operating System (OS) or
reserved customer image ID
A
Frame Style, Frame
Color, Mechanical
Design, User
Control Functionality
or reserved customer
design ID
A
Additional Hardware
Expansions Confi guration or
reserved customer hardware ID
TFT Panel Generation
Revision ID
1
E or 1 will
always
indicate
ECDIS
Calibrated
M

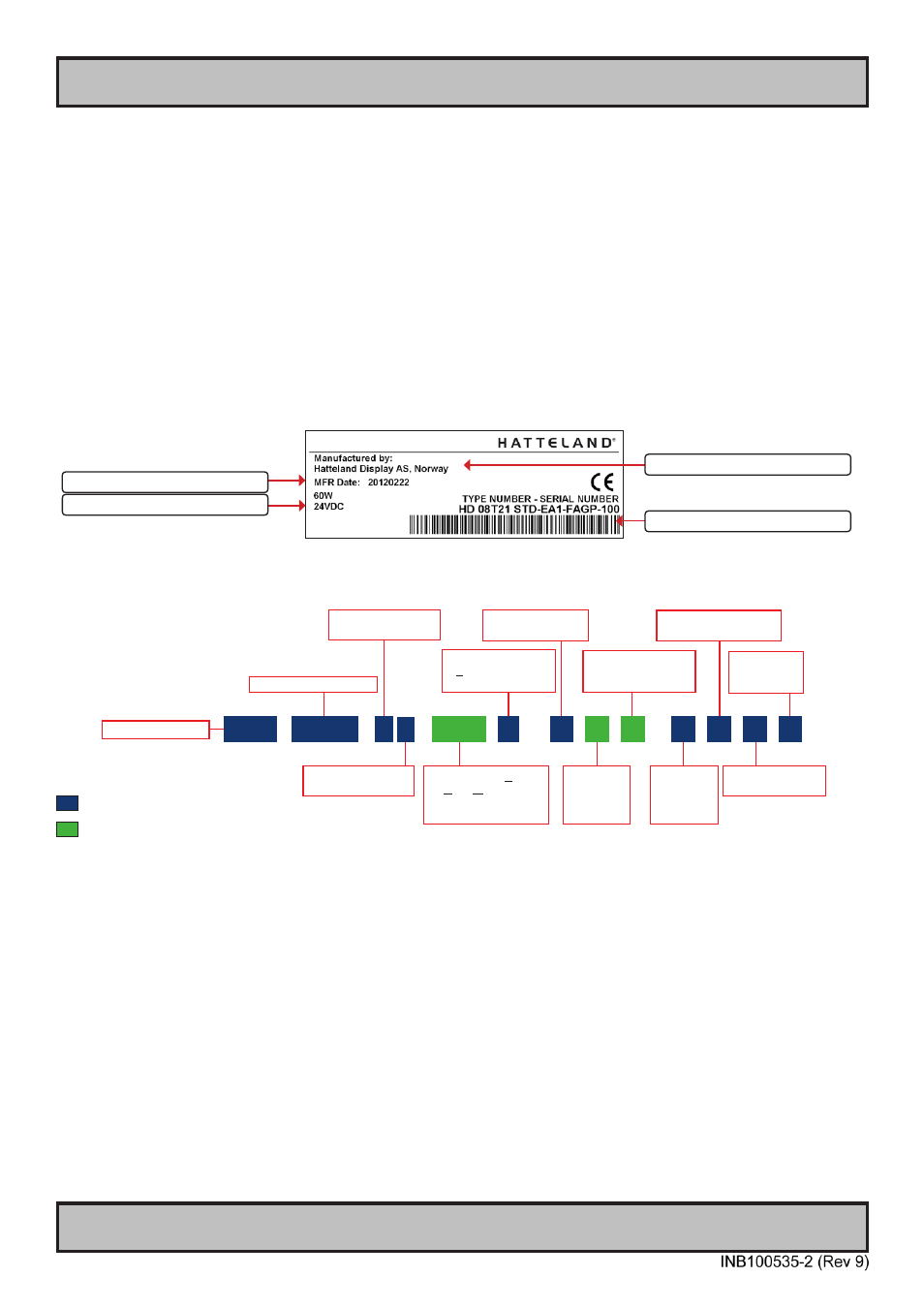

Typenumber Structure (example)
Serial Number Label Layout (example)
Manufactured Date yyyymmdd
Input Voltages & Power Rating
Manufacturer and Country
Barcode (TYP+SNO)
