13. Technical Data
The Ottawa B.11, certified in compliance with DIN-EN 13240 : 2005-10/1 : 2008-06
and Art. 15 a B-VG (Austria), can only be operated when the fire box is closed; more
than one device can be connected to the chimney.
VKF-No.: 22674;
The following data applies to the chimney characteristics in accordance with EN
13384-1 / 2
Combustion Values Wood Briquette
Nominal Thermal Output 6 6 kW
CO content at 13% O2 80 79 mg/m³
Efficiency 13 26 %
CO content at 13% O2 1104 882 mg/m³
Waste Gas Mass Flow Rate 5,5 5,5 g/s
Waste Gas Outlet Temp. 320 320 ˚C
Min. Supply Pressure at Nominal Thermal Output 12 12 Pa
Depending on the insulation of the building, the nominal thermal output of 6 kW indi-
cated on 20 - 80 m² (subject to change).
Dimensions: Height Width Depth
Stove 156 cm 48 cm 48 cm
Fire box 43 cm 28 cm 30 cm
Weight (incl. heat retaining block140kg ) ceramic/soapst./steel: 309/323/301 kg
Flue pipe diameter: 15 cm
Pipe diameter of Hase ventilation system* 10 cm
* For separate air supply in low-energy houses and insufficient combustion air supply
in the room where the stove is installed

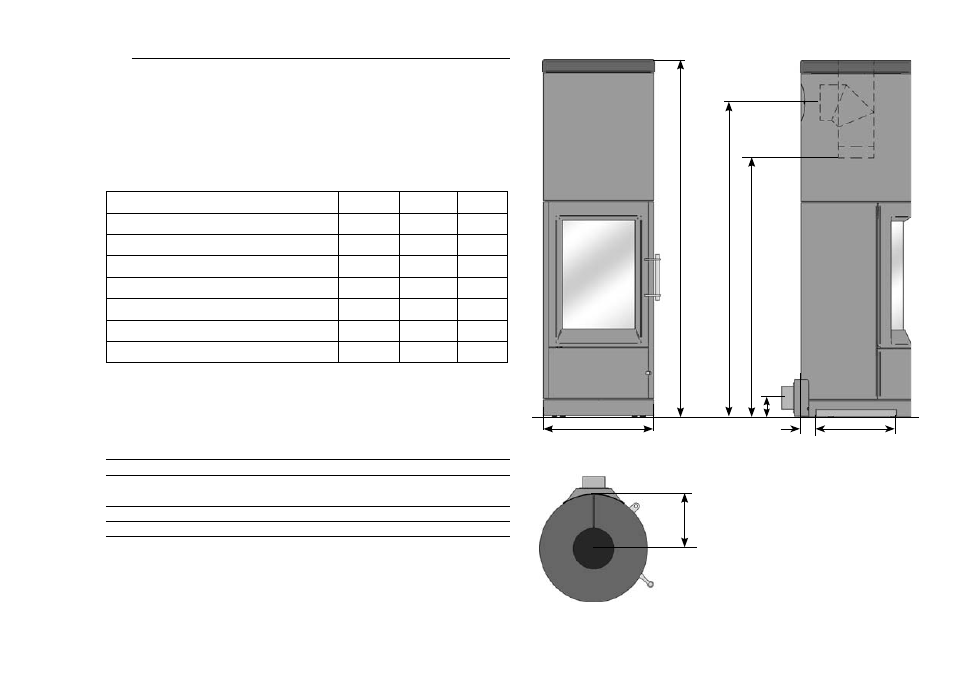

Dimensions in cm
Front view Side view
Top view
Height for top installation: 113
Stove‘s angle of rotation:
180° · Can be stopped in place and locked
right/left in 15° gradients.
Observe safety distances to
combustible or fl ammable materials!
Ø 48
24
Height
for
the
inst.
of
Hase
air
system:
8,5
6,5 Ø 35
Connection area for the inst.
of Hase air system below
Height for rear installation: 137
Stove height: 156
