11. Technical Data
The Jena B.11, certified in compliance with DIN-EN 13240 : 2005 and Art. 15 a
B-VG (Austria), can only be operated when the fire box is closed; more than one
device can be connected to the chimney.
VKF-No.: 18663; Inspection Report No. (A): FSPS-Wa 2073-A
The following data applies to the chimney characteristics in accordance with EN
13384-1 / 2
Combustion Values
Wood
Briquette
Nominal Thermal Output
6
6
kW
CO content at 13% O2
946
1188
mg/m³
Efficiency
81
81
%
CO content at 13% O2
946
1188
mg/m³
Waste Gas Mass Flow Rate
5,5
5,5
g/s
Waste Gas Outlet Temp.
290
290
˚C
Min. Supply Pressure at Nominal Thermal Output
12
12
Pa
Depending on the insulation of the building, the nominal thermal output of 6 kW indi-
cated on 20 - 80 m² (subject to change).
Dimensions:
Height
Width
Depth
Stove
115,5 cm
54 cm
49 cm
Fire box
38 cm
28 cm
31,5 cm
Steel
Ceramic
Soapstone
Weight
166 kg with ceramic
175 kg
219 kg
177 kg with soapstone
Flue pipe diameter:
15 cm
Pipe diameter of Hase ventilation system*
10 cm

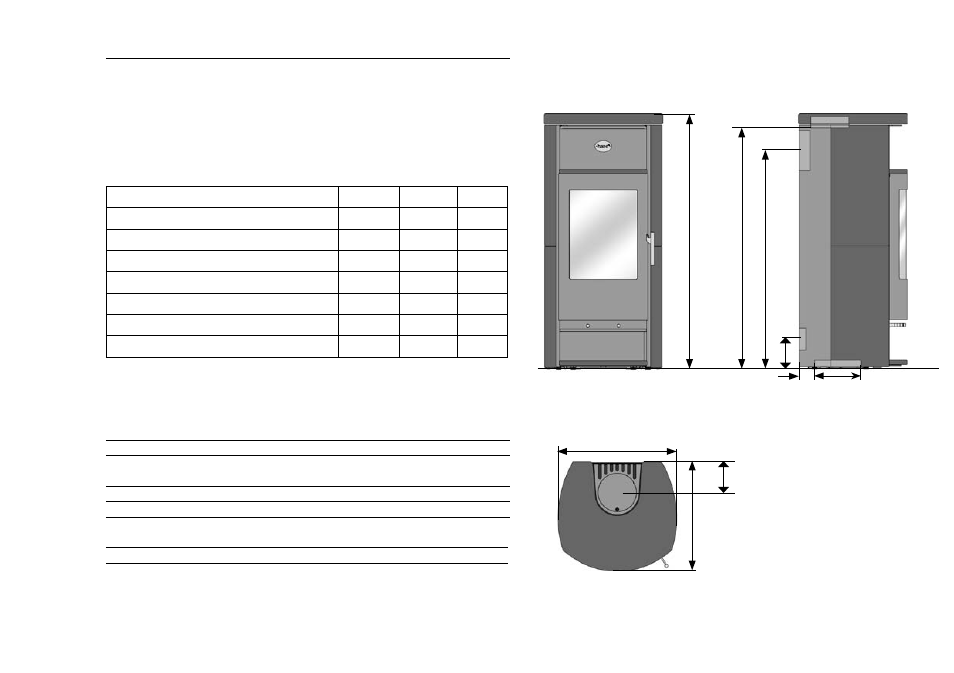

Front view
Side view
Top view
Dimensions in cm
Stove height
: 115,5
Height for rear installation:
99
Height for top installation:
110
Height for inst. of hase air system:
13,5
14
54
49,5
* For separate air supply in low-energy houses and insufficient combustion air supply
in the room where the stove is installed
Ø 21
7
Connection area for the inst.
of Hase air system below
