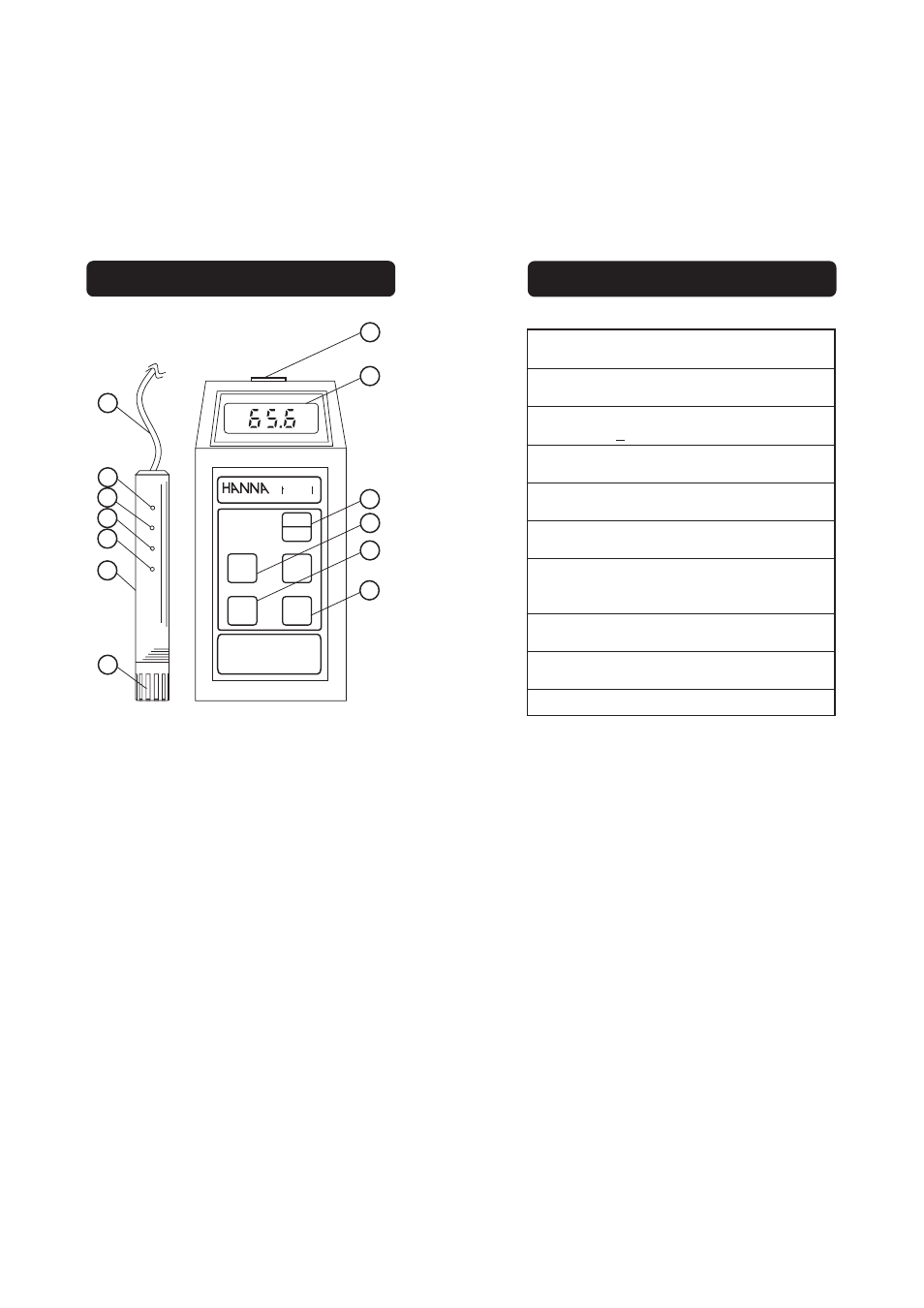

FUNCTIONAL DESCRIPTION OF HI 8564
1
2
3
6
7
8
10
11
12
13
9
5
4
°C
H V
ins e rum n s
ON
OFF
HI 8564
thermo
hygrometer
RH%
°C
°F 10 .... 95
32 .... 140
RH%
R A N G E S
°F °C
0 .... 60
1) DIN socket for RH/temperature probe
2) LCD (Liquid Crystal Display)
3) ON/OFF key, to turn the meter on or off
4) RH% key, to display RH measurements
5) °F key, to display temperature in °F
6) °C key, to display temperature in °C
7) Probe shielded cable
8) Low RH trimmer
9) Low temperature trimmer
10) High RH trimmer
11) High temperature trimmer
12) Probe body in polypropylene
13) Protective cap (to prevent damage to sensor)
Display Symbols:
°C
to indicate temperature readings in °C
H to indicate RH readings
V to indicate that battery needs to be replaced
Range 10.0 to 95.0% RH
0.0 to 60.0°C / 32 to 140°F
Resolution 0.1% RH
0.1°C / 1°F
Accuracy ±2% RH
±0.4°C / ±1°F (for 1 year, excluding probe error)
Typical EMC Deviation
2% RH / ±0.5°C / ±1°F
RH Calibration Manual, 2 point,
through trimmers on RH probe
RH Probe (included) HI 70601/2
with built-in temperature sensor and 2 m cable
Environment
0 to 50°C (32 to 122°F);
RH max 98% non-condensing
Battery Type / Life
1 x 9V / approx. 100 hours of use
Dimensions 185 x 82 x 45 mm
(7.3 x 3.2 x 1.8")
Weight 275 g (9.7 oz.)
SPECIFICATIONS OF HI 8564
